Torque Thumb Screws

Vlier’s line of precisely engineered mechanical components includes our torque thumb screw, which provides a range of holding styles such as regular, reverse, variable and off-angle support. The five available designs of these torque screws are engineered to meet the needs of applications across a wide range of industries. All five designs include a checknut to prevent back-off during operation.

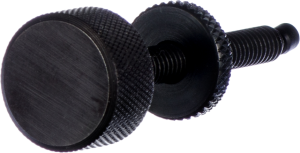

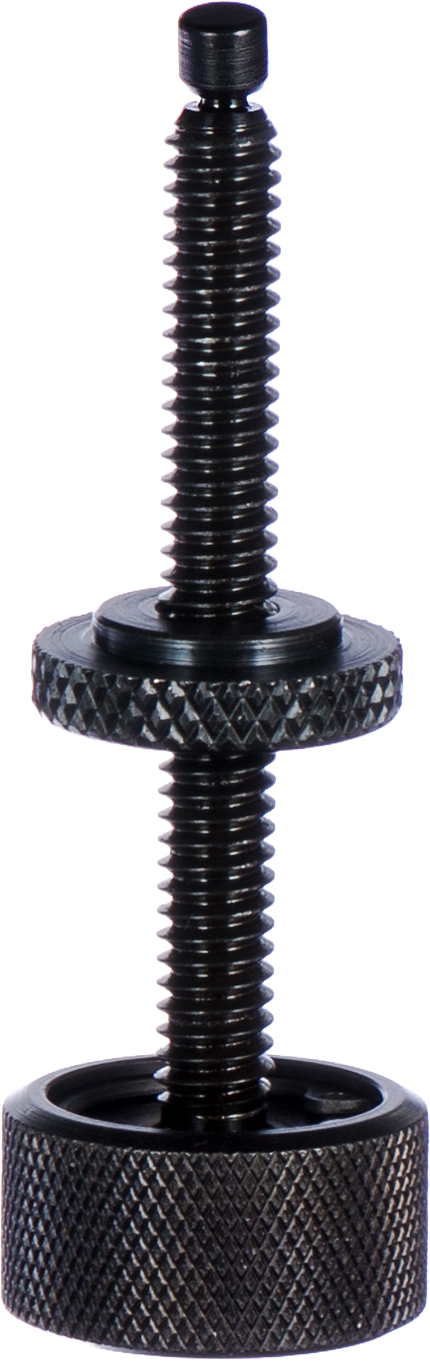

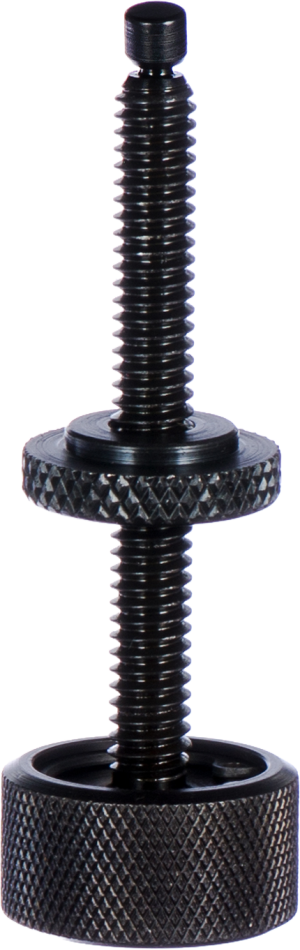

Regular – Type A

Offers numerous holding applications in building jigs, fixtures and special tooling.

Typical Uses

Building special tooling, jigs, fixtures and for workholding applications.

Special Features

  • Controlled end pressure
  • Checknuts prevent back-off
  • Head ratchets at preset pressure
Download the PDF
TS103
TS103
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Regular Type A

Part No.Estimated End Force Lbs.ABCDROHSCAD
T1028-1510-321-1/40.477/8T102
T1039-181/4-201-3/40.477/8T103
T10319-181/4-202-1/20.477/8T1031
T103A10-205/16-181-3/40.477/8T103A
T103A110-205/16-182-1/40.477/8T103A1
T103B10-205/16-1830.477/8T103B
T10412-233/8-161-3/40.477/8T104
T104112-233/8-162-1/40.477/8T1041
T10512-233/8-1630.477/8T105

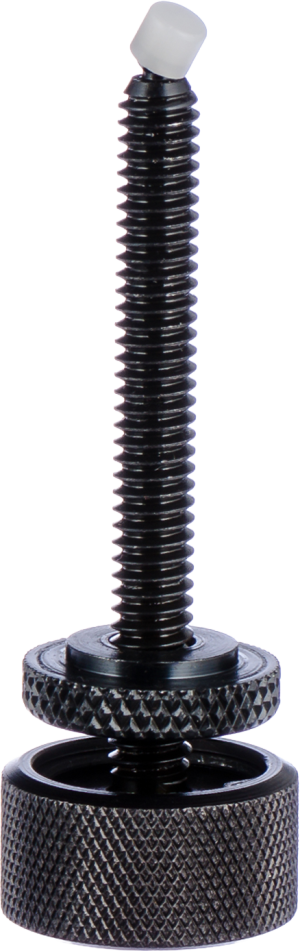

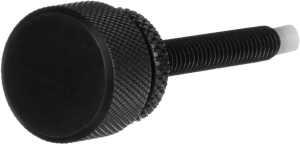

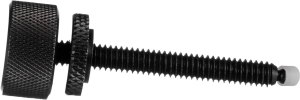

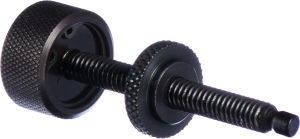

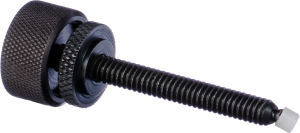

Swivel Pad Type

Part No. Steel PadPart No. Delrin® PadEstimated End Force Lbs.ABCDEROHSCAD
Delrin® Pad		CAD
Steel Pad
TS103NTS1039-181/4-202-1/40.477/80.19NTS103TS103
TS103ANTS103A10-205/16-182-1/40.477/80.25NTS103ATS103A
TS104NTS10412-233/8-162-1/40.477/80.29NTS104TS104

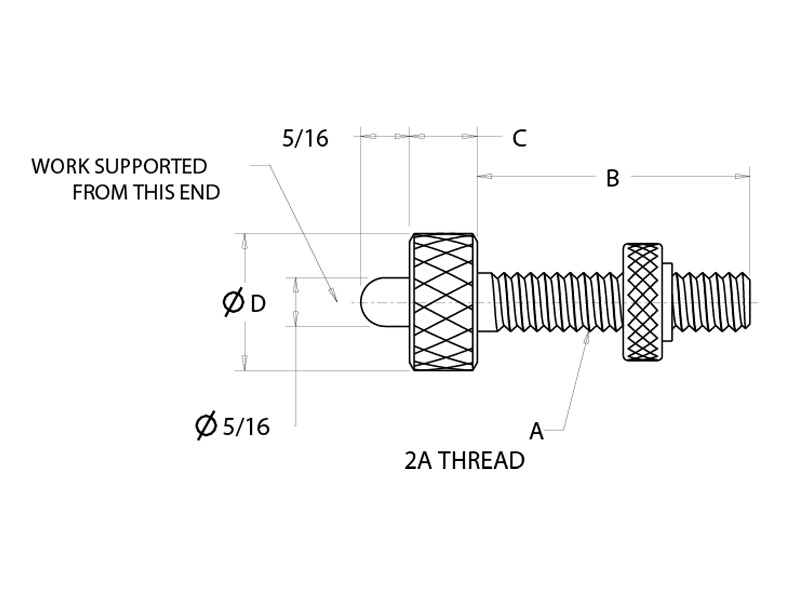

Inverted Type B

Part No.Estimated End Force Lbs.ABCDROHSCAD
T1259-181/4-201-3/47/167/8T125
T12612-233/8-161-3/47/167/8T126
T12713-251/2-131-3/41/21-1/8T127
T12815-285/8-111-3/41/21-1/8T128

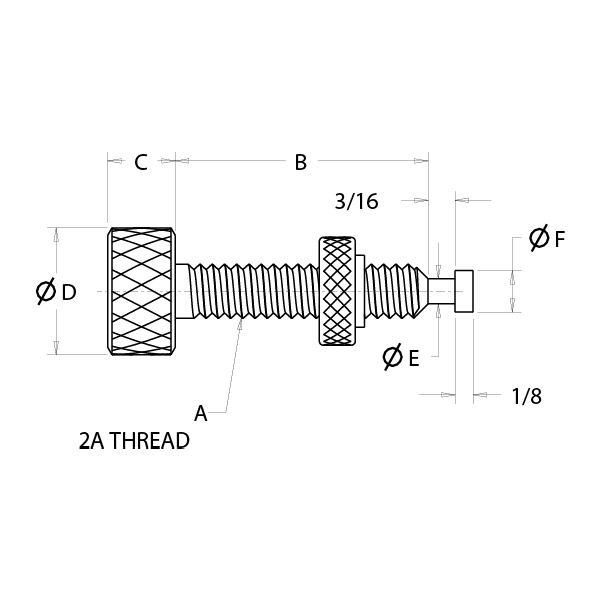

Tee Head Type C

Part No.Estimated End Force Lbs.ABCDEFROHSCAD
T15013-251/4-201-3/47/167/80.0930.184T150
T15117-333/8-161-3/47/167/80.1740.290T151

Adjustable Type D

Part No.Estimated End Force Lbs.ABCDAdjustable Torque Inch PoundsROHSCAD
T19810-1253/8-161-3/421/321-3/163-6T198
T19910-1253/8-16321/321-3/163-6T199
T20010-1251/2-131-3/421/321-3/163-6T200
T20110-1251/2-13321/321-3/163-6T201

Checknuts

Part No.Thread SizeABCDROHSCAD
T102CN10-323/47/321/25/32T102CN
T103CN1/4-203/47/321/25/32T103CN
T103ACN5/16-183/45/161/21/4T103ACN
T104CN3/8-163/45/161/21/4T104CN
T106CN1/2-1313/83/41/4T106CN
T108CN5/8-1113/83/41/4T108CN

Product not available in metric.
