Leveling Devices

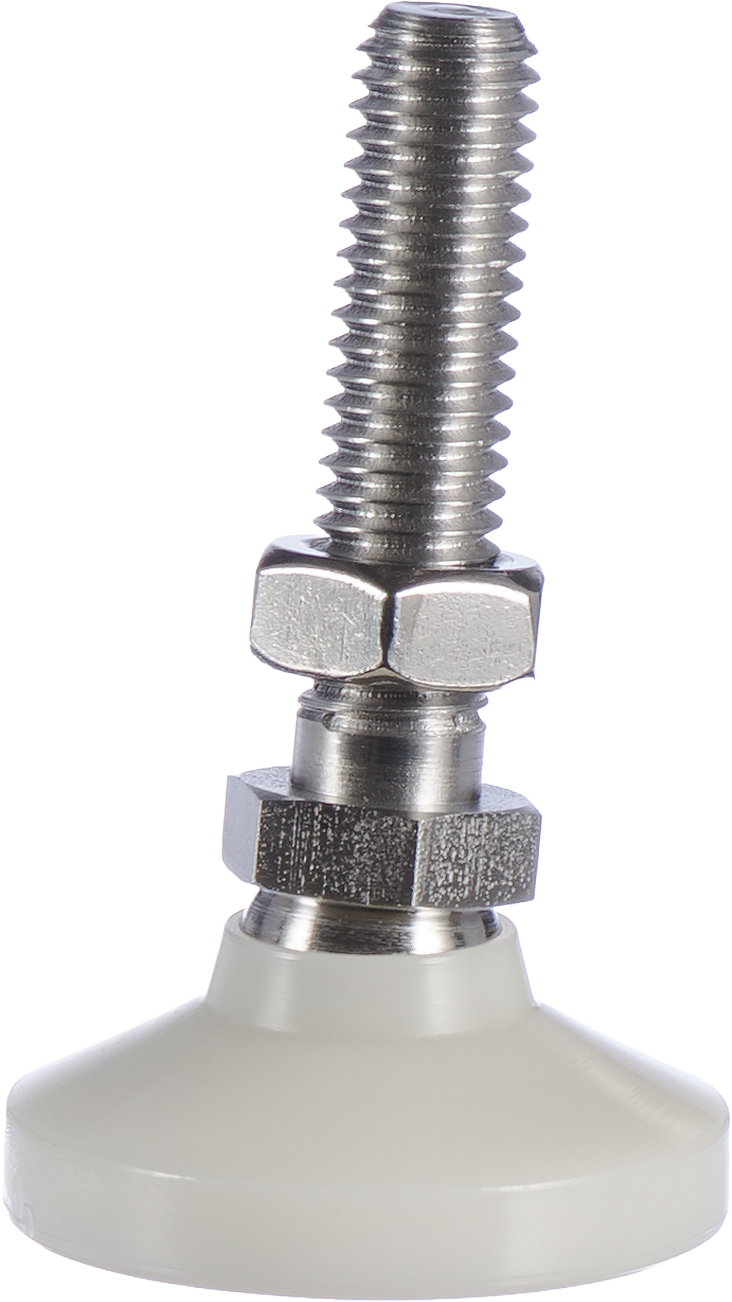

Original Series Stud Style with Delrin® Base

Stainless Steel

Vlier’s original series stud style leveling devices in stainless steel offer a plastic Delrin® base that resists repeated impacts, moisture and temperatures up to 190°, and protects floors and surface finishes. The stainless steel design offers additional protection from rust and corrosion.

Typical Uses

Data storage equipment
Large medical equipment
Material handling equipment
Industrial workstations
Industrial machines

Special Features

Hardened ball
Stud with integrally machined hex
Long-life, high-impact Delrin^® pad protects surface finish
Large diameter base support
15° swivel off centerline
Stainless steel design resists rust and corrosion

ANSI (Inch/American) Tables

Original Series Stud Style w/Delrin® Base - Stainless Steel

Part No.	Max Load Lbs.	A	B	C	D	E	F	ROHS	CAD
Part No.	Max Load Lbs.	A	B	C	D	E	F	ROHS	CAD
SSNP298S	150	10-32	3/8	17/32	3/4	7/64	1		SSNP298S
SSNP300S	200	1/4-20	1/2	45/64	1	5/32	1-1/4		SSNP300S
SSNP304S	300	3/8-16	5/8	7/8	1-1/4	3/16	2		SSNP304S
SSNP306S	700	1/2-13	3/4	1-1/8	1-7/8	1/4	2		SSNP306S
SSNP308S	1,200	5/8-11	7/8	1-1/4	2-1/2	5/16	2		SSNP308S
SSNP310S	1,800	3/4-10	1-1/16	1-1/2	3	1/2	2		SSNP310S
SSNP312S	2,400	1-8	1-3/8	1-7/8	4	13/32	4-1/4		SSNP312S

Product Not Available in Metric
