Leveling Devices

High Value Series Socket Style

Stainless Steel

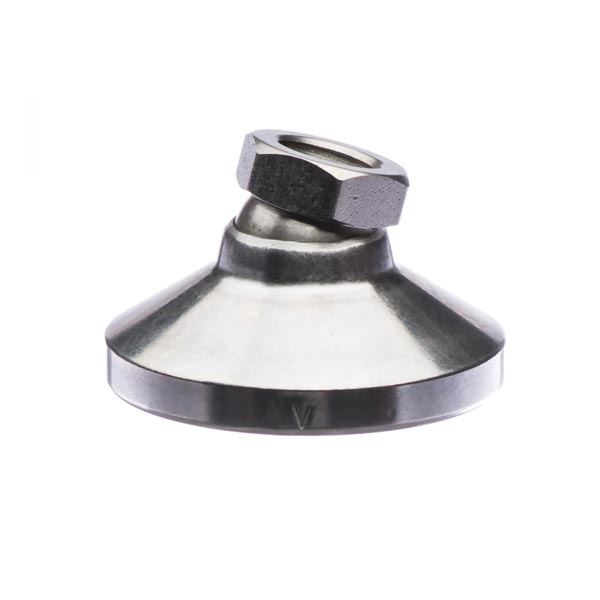

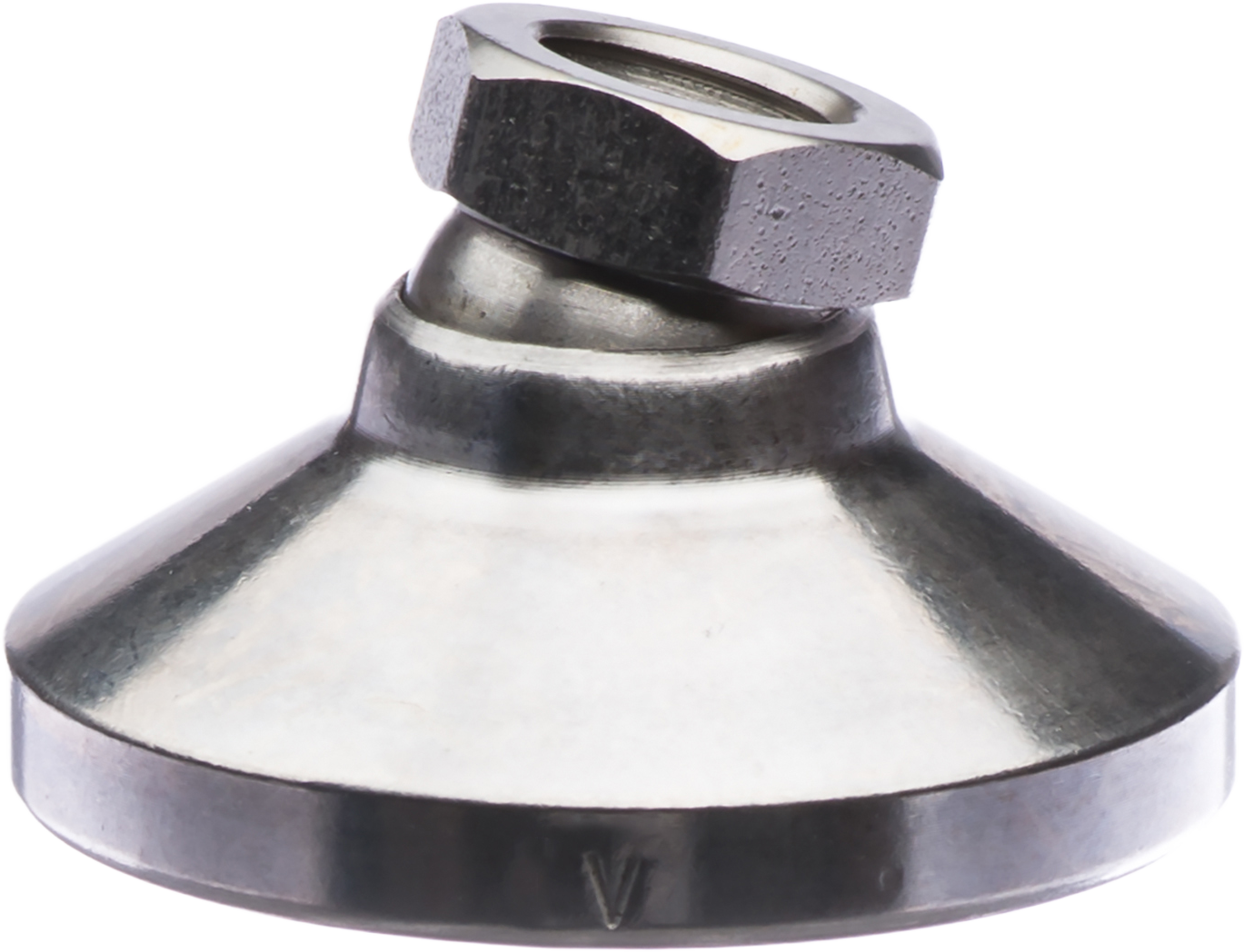

Vlier’s high value series socket style leveling devices are of premium quality construction, with optimum plating, finishing and cosmetics. These levelers in stainless steel provide stable, secure leveling with a large diameter base support. The stainless steel design offers further protection from rust and corrosion.

Typical Uses

Data storage equipment
Large medical equipment
Material handling equipment
Industrial workstations
Industrial machines

Special Features

Hardened ball
Integrally machined hex
Large diameter base support
15° swivel off centerline
Stainless steel resists rust and corrosion

ANSI (Inch/American) Tables

High Value Series Socket Style - Stainless Steel

Part No.	Max Load (Lbs.)	A	B	C	D	E	F	ROHS	Part No.
Part No.	Max Load (Lbs.)	A	B	C	D	E	F	ROHS	Part No.
HVSSP298B	700	10-32	3/8	17/32	3/4	7/64	15/64		HVSSP298B
HVSSP300B	1,100	1/4-20	1/2	45/64	1	5/32	5/16		HVSSP300B
HVSSP304B	3,750	3/8-16	5/8	7/8	1-1/4	3/16	3/8		HVSSP304B
HVSSP306B	5,000	1/2-13	3/4	1-1/8	1-7/8	1/4	7/16		HVSSP306B
HVSSP308B	6,000	5/8-11	7/8	1-1/4	2-1/2	5/16	7/16		HVSSP308B
HVSSP310B	7,200	3/4-10	1-1/16	1-1/2	3	1/2	5/8		HVSSP310B
HVSSP312B	22,000	1-8	1-3/8	1-7/8	4	13/32	13/16		HVSSP312B

High Value Series Socket Style - Stainless Steel

Part No.	Max Load (kg.)	Thread	Hex (mm)	Height to Hex (mm)	Base Dia. (mm)	(mm)	Depth (mm)	ROHS	CAD
Part No.	Max Load (kg.)	Thread	Hex (mm)	Height to Hex (mm)	Base Dia. (mm)	(mm)	Depth (mm)	ROHS	CAD
HVSSPM6B	318	M6 x 1-6h	10	13.5	19.1	2.8	5.8		HVSSPM6B
HVSSPM8B	500	M8 x 1.25-6h	13	17.8	25.4	3.8	7.8		HVSSPM8B
HVSSPM10B	1,705	M10 x 1.5-6h	17	22.0	32.0	5.0	9.6		HVSSPM10B
HVSSPM12B	2,273	M12 x 1.75-6h	19	28.7	47.8	6.4	11.0		HVSSPM12B
HVSSPM16B	2,727	M16 x 2-6h	24	31.8	63.5	7.9	11.0		HVSSPM16B
HVSSPM20B	3,272	M20 x 2.5-6h	30	38.0	76.0	12.7	15.7		HVSSPM20B
HVSSPM24B	9,979	M24 x 3-6h	36	47.8	101.6	10.2	20.5		HVSSPM24B
