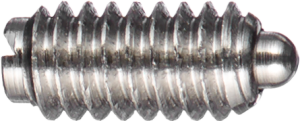

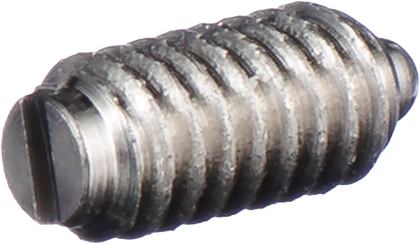

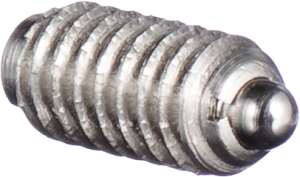

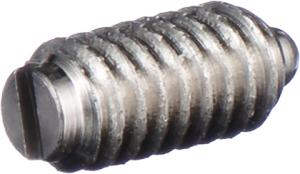

Stubby Plungers

Stainless Steel

Stubby plungers offer greater travel than ball plungers and less travel than standard plungers. These compact spring plungers offer substantial plunger travel and high end forces, making them ideal for restricted space applications.

Typical Uses

  • Limited space
  • Indexing
  • Electrical contacts
  • Part positioning
  • With Thread Lock
  • Detents

Special Features

  • Case hardened plunger
  • Wear & corrosion resistance
  • Compact size
  • Allows some side loading
  • Intermediate travel
  • Screwdriver installation
Download the PDF
Stubby Plungers - Stainless Steel
Stubby Plungers - Stainless Steel
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Stubby Plungers – Stainless Steel w/Stainless Steel Nose

Part No.End Force, (Lbs.)ABCDROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
SSM50ASSM50AP1-1/24-3/48-320.4370.0520.070SSM50ASSM50AP
SSM50SSM50P1-1/24-3/48-360.4370.0520.070SSM50SSM50P
SSM52SSM52P1-3/46-1/410-320.4680.0650.093SSM52SSM52P
SSM54SSM54N3.010-1/21/4-200.5310.0780.119SSM54SSM54N
SSM56SSM56N3-3/415-1/25/16-180.5620.0840.135SSM56SSM56N
SSM58SSM58N4-1/218-1/23/8-160.6250.1100.186SSM58SSM58N
SSM60SSM60N5.028.01/2-130.7500.1510.248SSM60SSM60N
SSM62SSM62N7.050.05/8-111.0620.2150.310SSM62SSM62N

Light End Force Stubby Plungers – Stainless Steel w/Stainless Steel Nose

Part No.End Force, (Lbs.)ABCDROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
SSM51ASSM51AP1/21-1/28-320.4370.0520.070SSM51ASSM51AP
SSM51SSM51P1/21-1/28-360.4370.0520.070SSM51SSM51P
SSM53SSM53P3/42-1/210-320.4680.0650.093SSM53SSM53P
SSM55SSM55N1.03-1/21/4-200.5310.0780.119SSM55SSM55N
SSM57SSM57N1-1/44.05/16-180.5620.0840.135SSM57SSM57N
SSM59SSM59N1-1/25.03/8-160.6250.1100.186SSM59SSM59N
SSM61SSM61N1-3/45-1/21/2-130.7500.1510.248SSM61SSM61N
SSM63SSM63N2.08-1/25/8-111.0620.2150.310SSM63SSM63N

Stubby Plungers – Stainless Steel w/Stainless Steel Nose

Part No.End Force, NABCDROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
SSMHM4SSMHM4P7.021.0M4 x 0.711.11.31.8SSMHM4SSMHM4P
SSMM4SSMM4P2.07.0M4 x 0.711.11.31.8SSMM4SSMM4P
SSMHM5SSMHM5P8.028.0M5 x 0.811.91.72.4SSMHM5SSMHM5P
SSMM5SSMM5P3.011.0M5 x 0.811.91.72.4SSMM5SSMM5P
SSMHM6SSMHM6P13.047.0M6 x 1013.52.03.0SSMHM6SSMHM6P
SSMM6SSMM6P4.016.0M6 x 1013.52.03.0SSMM6SSMM6P
SSMHM8SSMHM8P17.069.0M8 x 1.2514.32.13.4SSMHM8SSMHM8P
SSMM8SSMM8P6.018.0M8 x 1.2514.32.13.4SSMM8SSMM8P
SSMHM10SSMHM10P20.082.0M10 x 1.515.92.84.7SSMHM10SSMHM10P
SSMM10SSMM10P7.022.0M10 x 1.515.92.84.7SSMM10SSMM10P
SSMHM12SSMHM12P22.0125.0M12 x 1.7519.13.86.3SSMHM12SSMHM12P
SSMM12SSMM12P8.024.0M12 x 1.7519.13.86.3SSMM12SSMM12P
SSMHM16SSMHM16P31.0222.0M16 x 2.027.05.57.9SSMHM16SSMHM16P
SSMM16SSMM16P9.038.0M16 x 2.027.05.57.9SSMM16SSMM16P
