Leveling Devices

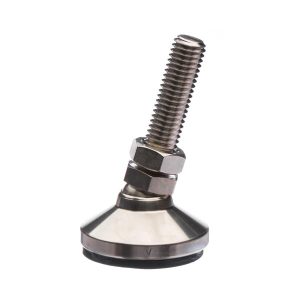

Original Series Stud Style with Elastomer Pad

Stainless Steel

Vlier’s original series stud style leveling devices in stainless steel with elastomer pad feature a .125 neoprene elastomer pad bonded to the bottom of the base that provides non-skid support. The stainless steel design provides superior protection from rust and corrosion.

Typical Uses

  • Data storage equipment
  • Large medical equipment
  • Material handling equipment
  • Industrial workstations
  • Industrial machines

Special Features

  • Hardened ball
  • Stud with integrally machined hex
  • Large diameter base support
  • Non-skid elastomer pad protects floor or surface finish
  • 15° swivel off centerline
  • Stainless steel design resists rust and corrosion
Download the PDF
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Original Series Stud Style w/Elastomer Pad - Stainless Steel

Part No.Max Load
(Lbs.)		ABCDEFROHSCAD
ESSP298S52510-323/817/323/47/641ESSP298S
ESSP300S8001/4-201/245/6415/321-1/4ESSP300S
ESSP304S2,8003/8-165/87/81-1/43/162ESSP304S
ESSP306S3,7501/2-133/41-1/81-7/81/42ESSP306S
ESSP308S4,5005/8-117/81-1/42-1/25/162ESSP308S
ESSP310S5,4003/4-101-1/161-1/231/22ESSP310S
ESSP312S16,4001-81-3/81-7/8413/324-1/4ESSP312S

Product Not Available in Metric
