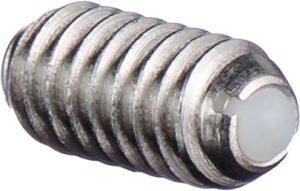

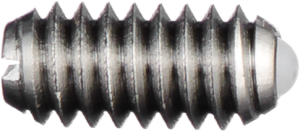

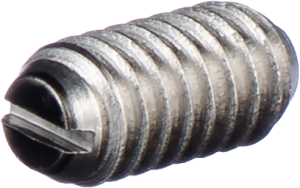

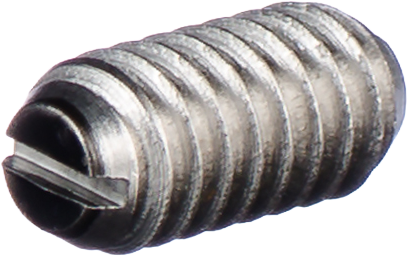

Nylon Ball Plungers

Stainless Steel

Nylon ball plungers in stainless steel provide resistance to repeated impacts, moisture, solvents and heat up to 190ºF. The nylon ball nose provides electrical insulating properties. The stainless steel body affords maximum protection against rust and corrosion.

Typical Uses

Positioning
Locating
Indexing
Torque limiting
Gear shifters
Detents

Special Features

Stainless steel body with nylon ball
Highly durable & non-marring
Stainless steel spring standard
Compact & lightweight
Withstands side loading
Controlled end forces

Download the PDF

ANSI (Inch/American) Tables

Metric Tables

CAD Library

Nylon Ball Plungers - Stainless Steel

Part No.		End Force, (Lbs.)		A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
DSSB46	DSSB46	1/8	1/2	4-48	0.187	0.020	0.062		DSSB46	DSSB46
DSSB47	DSSB47P	1/4	3/4	5-40	0.250	0.020	0.062		DSSB47	DSSB47P
DSSB48	DSSB48P	1/2	1.0	6-40	0.312	0.023	0.078		DSSB48	DSSB48P
DSSB50A	DSSB50AP	1/2	1-1/4	8-32	0.344	0.025	0.094		DSSB50A	DSSB50AP
DSSB50	DSSB50P	1/2	1-1/4	8-36	0.344	0.025	0.094		DSSB50	DSSB50P
DSSB52	DSSB52P	1-1/2	3.0	10-32	0.513	0.025	0.094		DSSB52	DSSB52P
DSSBL52	DSSBL52P	1/2	1-1/2	10-32	0.513	0.025	0.094		DSSBL52	DSSBL52P
DSSBH52	DSSBH52P	2.0	5.0	10-32	0.513	0.025	0.094		DSSBH52	DSSBH52P
DSSB54	DSSB54N	3.0	7.0	1/4-20	0.531	0.035	0.125		DSSB54	DSSB54N
DSSBL54	DSSBL54N	2.0	4.0	1/4-20	0.531	0.035	0.125		DSSBL54	DSSBL54N
DSSBH54	DSSBH54N	4.0	12.0	1/4-20	0.531	0.035	0.125		DSSBH54	DSSBH54N
DSSB56	DSSB56N	4.0	9.0	5/16-18	0.578	0.04	0.156		DSSB56	DSSB56N
DSSBL56	DSSBL56N	2.0	4-1/4	5/16-18	0.578	0.04	0.156		DSSBL56	DSSBL56N
DSSBH56	DSSBH56N	6..0	17.0	5/16-18	0.578	0.04	0.156		DSSBH56	DSSBH56N
DSSB58	DSSB58N	5.0	10.0	3/8-16	0.625	0.048	0.188		DSSB58	DSSB58N
DSSBL58	DSSBL58N	2-1/2	5.0	3/8-16	0.625	0.048	0.188		DSSBL58	DSSBL58N
DSSBH58	DSSBH58N	6.0	21.0	3/8-16	0.625	0.048	0.188		DSSBH58	DSSBH58N
DSSB60	DSSB60N	6.0	12.0	1/2-13	0.750	0.072	0.281		DSSB60	DSSB60N
DSSBL60	DSSBL60N	3.0	6.0	1/2-13	0.750	0.072	0.281		DSSBL60	DSSBL60N
DSSBH60	DSSBH60N	6.0	30.0	1/2-13	0.750	0.072	0.281		DSSBH60	DSSBH60N
DSSB62	DSSB62N	9.0	18.0	5/8-11	0.984	0.096	0.375		DSSB62	DSSB62N
DSSBL62	DSSBL62N	4-1/2	9.0	5/8-11	0.984	0.096	0.375		DSSBL62	DSSBL62N
DSSBH62	DSSBH62N	7.0	50.0	5/8-11	0.984	0.096	0.375		DSSBH62	DSSBH62N

Nylon Ball Plungers - Stainless Steel

Part No.		End Force, N		A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
DSBM3	DSBM3P	3.0	4.5	M3 x 0.5	7.0	0.4	1.5		DSBM3	DSBM3P
DSBM4	DSBM4P	4.0	10.0	M4 x 0.7	9.0	0.8	2.5		DSBM4	DSBM4P
DSBM5	DSBM5P	8.0	14.0	M5 x 0.8	12.0	0.9	3.0		DSBM5	DSBM5P
DSBMH5	DSBMH5P	15.0	22.0	M5 x 0.8	12.0	0.9	3.0		DSBMH5	DSBMH5P
DSBM6	DSBM6P	9.0	13.0	M6 x 1.0	14.0	1.0	3.5		DSBM6	DSBM6P
DSBML6	DSBML6P	2.0	6.0	M6 x 1.0	14.0	1.0	3.5		DSBML6	DSBML6P
DSBMH6	DSBMH6P	28.0	40.0	M6 x 1.0	14.0	1.0	3.5		DSBMH6	DSBMH6P
DSBM8	DSBM8N	15.0	30.0	M8 x 1.25	16.0	1.5	5.0		DSBM8	DSBM8N
DSBML8	DSBML8N	5.0	10.0	M8 x 1.25	16.0	1.5	5.0		DSBML8	DSBML8N
DSBMH8	DSBMH8N	40.0	60.0	M8 x 1.25	16.0	1.5	5.0		DSBMH8	DSBMH8N
DSBM10	DSBM10N	20.0	35.0	M10 x 1.5	19.0	2.0	6.0		DSBM10	DSBM10N
DSBML10	DSBML10N	8.0	15.0	M10 x 1.5	19.0	2.0	6.0		DSBML10	DSBML10N
DSBMH10	DSBMH10N	60.0	90.0	M10 x 1.5	19.0	2.0	6.0		DSBMH10	DSBMH10N
DSBM12	DSBM12N	30.0	55.0	M12 x 1.75	22.0	2.5	8.0		DSBM12	DSBM12N
DSBML12	DSBML12N	10.0	20.0	M12 x 1.75	22.0	2.5	8.0		DSBML12	DSBML12N
DSBMH12	DSBMH12N	75.0	115.0	M12 x 1.75	22.0	2.5	8.0		DSBMH12	DSBMH12N
DSBM16	DSBM16N	41.0	86.0	M16 x 2.0	24.0	3.5	10.0		DSBM16	DSBM16N
DSBMH16	DSBMH16N	68.0	142.0	M16 x 2.0	24.0	3.5	10.0		DSBMH16	DSBMH16N
