Leveling Devices

High Value Series Stud Style

Stainless Steel

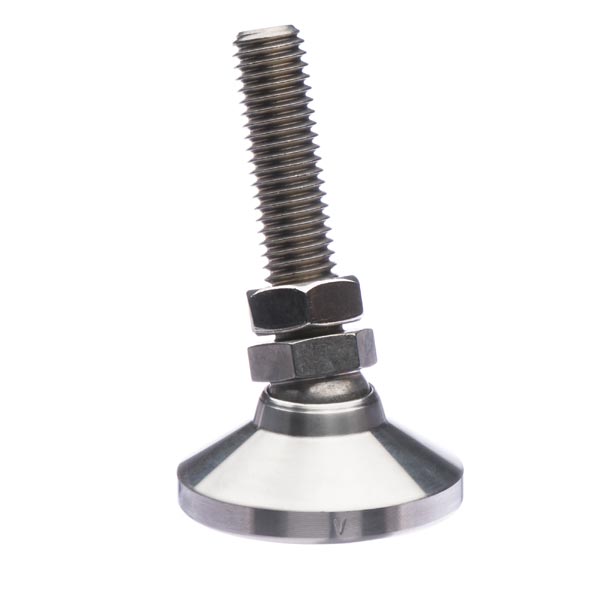

Vlier’s high value series stud style leveling devices are of premium quality construction, with optimum plating, finishing and cosmetics. These levelers in stainless steel provide an integrally machined stud as part of the ball. The stud style bases swivel 15° off the centerline to adjust to uneven surfaces and level machine tools, electronic racks,  benches, data storage, power generation, machine centers and others. The stainless steel design provides maximum protection from rust and corrosion.

Typical Uses

  • Data storage equipment
  • Large medical equipment
  • Material handling equipment
  • Industrial workstations
  • Industrial machines



Special Features

  • Hardened ball
  • Stud with integrally machined hex
  • Large diameter base support
  • 15° swivel off centerline
  • Stainless steel resists rust and corrosion



Download the PDF
HVSSP306S
HVSSP306S
ANSI (Inch/American) Tables
Metric Tables
CAD Library

High Value Series Stud Style - Stainless Steel

Part No.Max Load (Lbs.)ABCDEFROHSCAD
HVSSP298S70010-323/817/323/47/641HVSSP298S
HVSSP300S1,1001/4-201/245/6415/321-1/4HVSSP300S
HVSSP304S3,7503/8-165/87/81-1/43/162HVSSP304S
HVSSP306S5,0001/2-133/41-1/81-7/81/42HVSSP306S
HVSSP308S6,0005/8-117/81-1/42-1/25/162HVSSP308S
HVSSP310S7,2003/4-101-1/161-1/231/22HVSSP310S
HVSSP312S22,0001-81-3/81-7/8413/324-1/4HVSSP312S

High Value Series Stud Style - Stainless Steel

Part No.Max LoadThreadHex
(mm)		Height to Hex
(mm)		Base Dia.
(mm)		(mm)Bolt Lgth
(mm)		ROHSCAD
HVSSPM6S318M6 x 1-6g1013.519.12.825.4HVSSPM6S
HVSSPM8S500M8 x 1.25-6g1317.825.43.831.8HVSSPM8S
HVSSPM10S1,705M10 x 1.5-6g1722.431.84.351.0HVSSPM10S
HVSSPM12S2,273M12 x 1.75g1928.747.86.451.0HVSSPM12S
HVSSPM16S2,727M16 x 2-6g2431.863.57.951.0HVSSPM16S
HVSSPM20S3,272M20 x 2.5-6g3038.176.012.751.0HVSSPM20S
HVSSPM24S9,979M24 x 3-6g3647.8101.610.2108.0HVSSPM24S
