Lever Style Plungers

With Thread Lock &

Stainless Steel

Find a Distributor

The plunger can be fully withdrawn into the body of lever style plungers. The locking variety allows the fully withdrawn plunger to be locked into the retracted position. Stainless steel construction resists rust and corrosion.

Typical Uses

  • Positioning
  • Fastening
  • Securing
  • With Thread Lock
  • Latching
  • Quick disconnect

Special Uses

  • Food and medical applications
  • Special environments

Special Features

  • Lever handle design
  • Hand-retractable locking plunger
  • Tapered end for easy alignment
  • Stainless steel construction
  • Unified ANSI and metric threads
Download the PDF
SSFR250--2
SSFR250--2
ANSI (Inch/American) Tables
Metric Tables
CAD Library

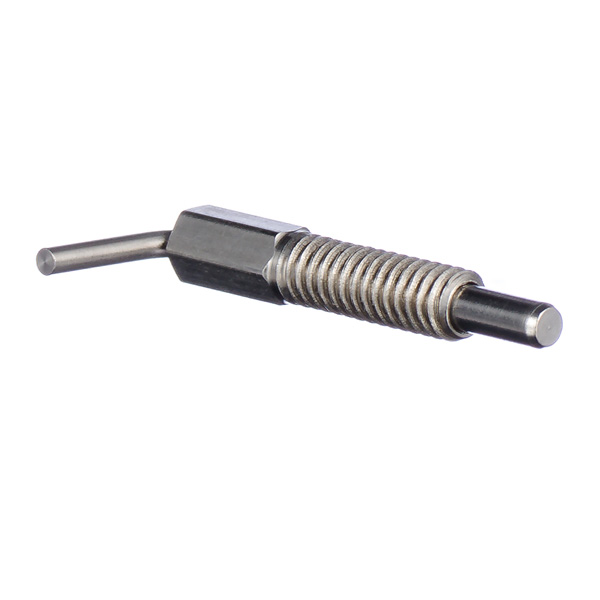

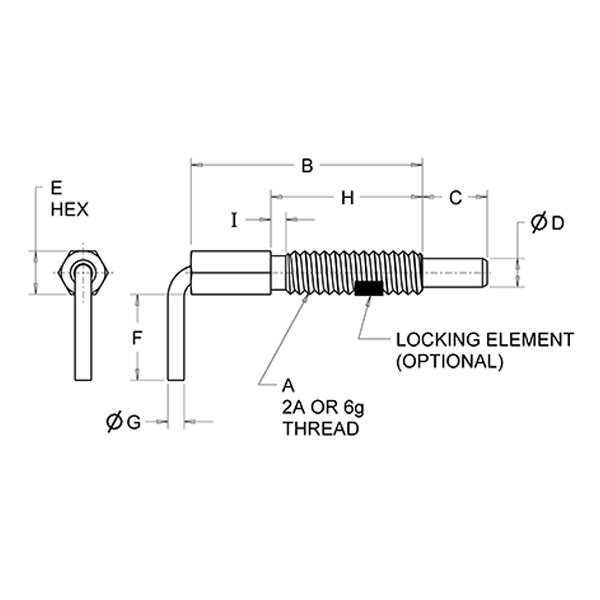

Lever Style Plungers - Locking Plunger Nose - Stainless Steel

Part No.End Force, (Lbs.)ABCDEFGHIROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
SSFR250SSFR250P0.502.501/4-201.250.380.160.250.500.090.80*SSFR250SSFR250P
SSFR375SSFR375P0.753.753/8-162.000.560.250.380.750.141.310.13SSFR375SSFR375P
SSFR500SSFR500P1.005.001/2-132.110.750.310.501.000.191.250.15SSFR500SSFR500P
SSFR625SSFR625P1.005.005/8-113.051.000.380.621.000.192.000.18SSFR625SSFR625P

*No thread relief in 1/4-20 thread size and M6 thread for metric.

Lever Style Plungers - Non-Locking Plunger Nose - Stainless Steel

Part No.End Force, (Lbs.)ABCDEFGHIROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
SSFRN250SSFRN250P0.502.501/4-201.250.380.160.250.500.090.80*SSFRN250SSFRN250P
SSFRN375SSFRN375P0.753.753/8-162.000.560.250.380.750.141.310.13SSFRN375SSFRN375P
SSFRN500SSFRN500P1.005.001/2-132.110.750.310.501.000.191.250.15SSFRN500SSFRN500P
SSFRN625SSFRN625P1.005.005/8-113.051.000.380.621.000.192.000.18SSFRN625SSFRN625P

*No thread relief in 1/4-20 thread size and M6 thread for metric.

Lever Style Plungers - Locking Plunger Nose - Stainless Steel

Part No.End Force, (Lbs.)ABCDEFHexHIROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
SFRM6SFRM6P2.211.1M6 x 1.0032.010.04.06.012.72.320.0*SFRM6SFRM6P
SFRM10SFRM10P3.316.7M10 x 1.5051.014.06.010.019.03.533.03.3SFRM10SFRM10P
SFRM12SFRM12P4.522.3M12 x 1.7554.019.08.012.025.44.832.03.8SFRM12SFRM12P

*No thread relief in 1/4-20 thread size and M6 thread for metric.

Lever Style Plungers - Non-Locking Plunger Nose - Stainless Steel

Part No.End Force, NABCDEFHexHIROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
SSFRNM6SSFRNM6P2.011.0M6 x 1.032.010.04.06.013.02.020.0*SSFRNM6SSFRNM6P
SSFRNM10SSFRNM10P3.017.0M10 x 1.551.014.06.010.019.04.033.03.0SSFRNM10SSFRNM10P
SSFRNM12SSFRNM12P4.522.0M12 x 1.7554.019.08.012.025.05.032.04.0SSFRNM12SSFRNM12P
SSFRNM16SSFRNM16P4.522.0M16 x 2.077.025.09.516.025.05.051.05.0SSFRNM16SSFRNM16P

*No thread relief in 1/4-20 thread size and M6 thread for metric.
