Leveling Devices

High Value Series Stud Style

Steel with Gold Chromate Finish

Find a Distributor

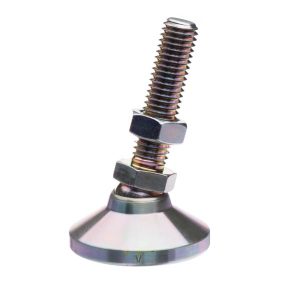

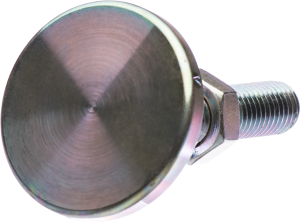

Vlier’s high value series stud style leveling devices are of premium quality construction, with optimum plating, finishing and cosmetics, all designed with cost in mind. These steel levelers provide an integrally machined stud as part of the ball. The stud style bases swivel 15° off the centerline to adjust to uneven surfaces and level machine tools, electronic racks,  benches, data storage, power generation, machine centers and others. The standard steel design is zinc plate with gold chromate finish.

Typical Uses

  • Data storage equipment
  • Large medical equipment
  • Material handling equipment
  • Industrial workstations
  • Industrial machines





Special Features

  • Hardened ball
  • Stud with integrally machined hex
  • Large diameter base support

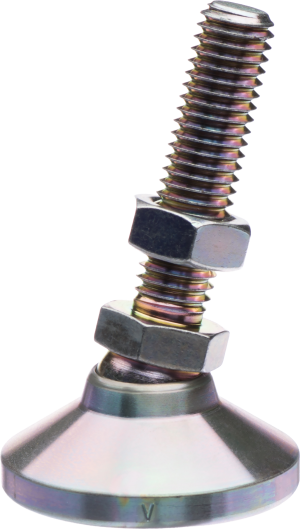

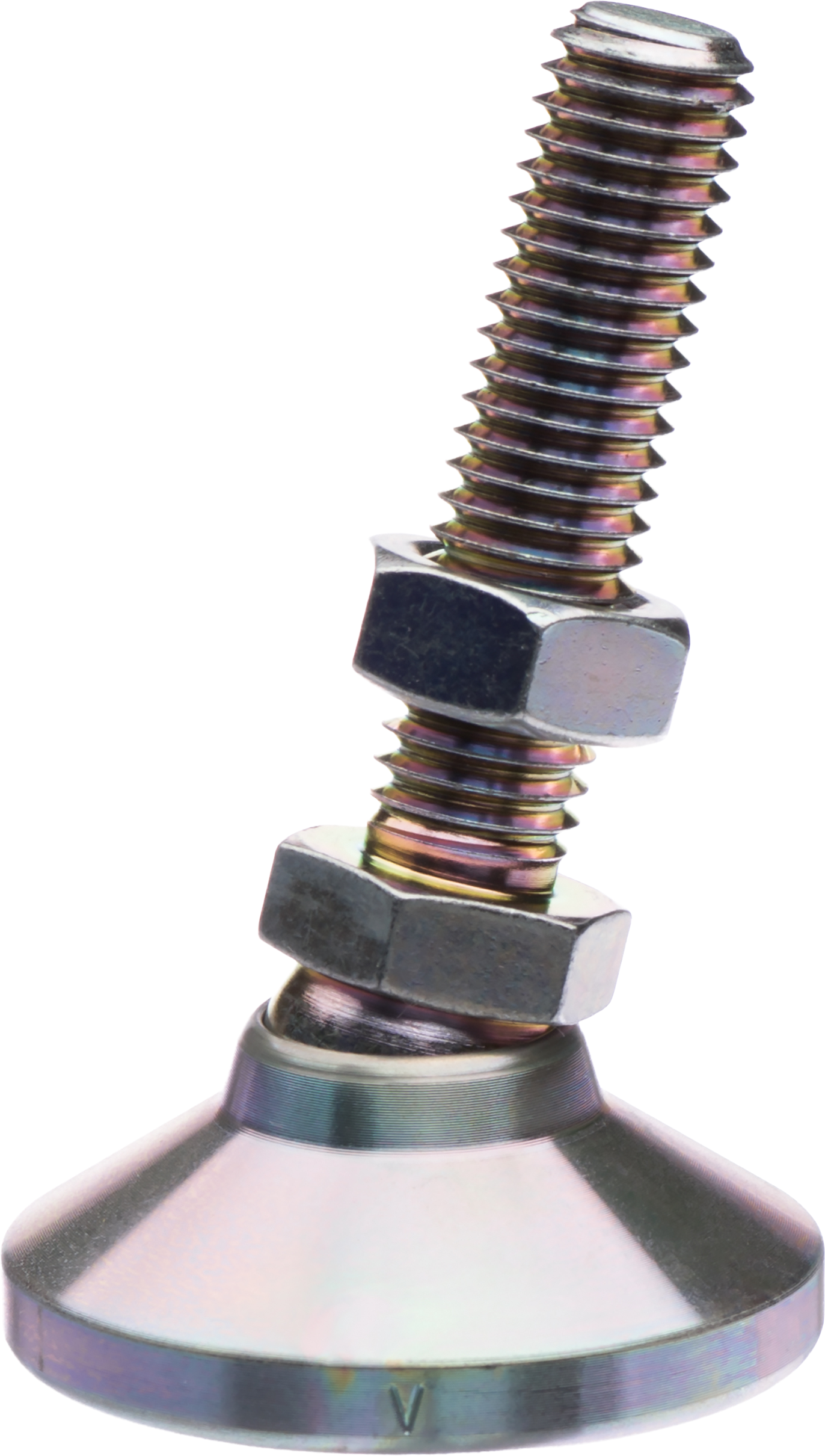

  • 15° swivel off centerline
Download the PDF
HVP306S-1
HVP306S-1
ANSI (Inch/American) Tables
Metric Tables
CAD Library

High Value Series Stud Style - Steel w/Gold Chromate Finish

Part No.Max Load (Lbs.)ABCDEFROHSCAD
HVP298S70010-323/817/323/47/641HVP298S
HVP300S1,1001/4-201/245/6415/321-1/4HVP300S
HVP304S3,7503/8-165/87/81-1/43/162HVP304S
HVP306S5,0001/2-133/41-1/81-7/81/42HVP306S
HVP308S6,0005/8-117/81-1/42-1/25/162HVP308S
HVP310S7,2003/4-101-1/161-1/231/22HVP310S
HVP312S22,0001-81-3/81-7/8413/324-1/4HVP312S

High Value Series Stud Style - Steel w/Gold Chromate Finish

Part No.Max Load (kg.)ABCDEFROHSCAD
HVPM6S318M6 x 1-6g1013.519.12.825.4HVPM6S
HVPM8S500M8 x 1.25-6g1317.825.43.831.8HVPM8S
HVPM10S1,705M10 x 1.5-6g1722.431.84.351.0HVPM10S
HVPM12S2,273M12 x 1.75g1928.747.86.451.0HVPM12S
HVPM16S2,727M16 x 2-6g2431.863.57.951.0HVPM16S
HVPM20S3,272M20 x 2.5-6g3038.176.012.751.0HVPM20S
HVPM24S9,979M24 x 3-6g3647.8101.610.2108.0HVPM24S
Download the PDF
