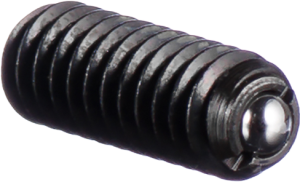

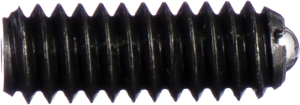

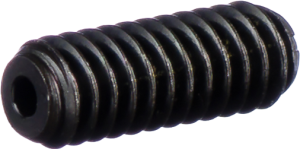

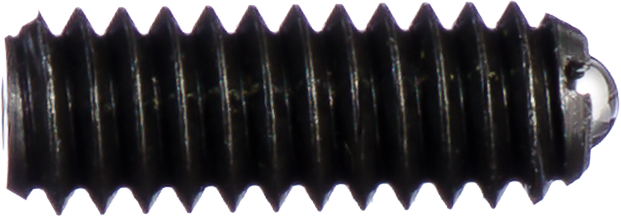

Posi-Hex™ Ball Plungers

Steel

The enhanced design of our Posi-HexTM ball plungers allows for easy installation and removal using only a hex wrench. Designed to withstand maximum installation torque, Posi-HexTM works great when using our thread locking element. These compact spring plungers offer quick change-outs that save downtime and money. Posi-HexTM plungers withstand maximum torque and are recommended for use with nylon locking elements.

Typical Uses

  • Indexing
  • Locating
  • Detents
  • Positioning
  • Electrical contacts
  • Adjustable set screw

Special Features

  • Will withstand maximum installation torque
  • Quick installation & removal
  • Controlled end forces
Download the PDF
Posi Hex Steel
Posi Hex Steel
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Posi-Hex™ Ball Plungers - Steel

Part No.End Force, (Lbs.)ABCDEROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
PHB48APHB48AP0.51.006-400.3500.0230.0780.050PHB48APHB48AP
PHB50PHB50P0.51.258-320.4450.0250.0940.063PHB50PHB50P
PHB52PHB52P1.53.0010-320.5700.0250.0940.079PHB52PHB52P
PHB54PHB54P3.07.001/4-200.6750.0350.1250.079PHB54PHB54P
PHB56PHB56P4.09.005/16-180.7200.040.1560.095PHB56PHB56P
PHB58PHB58P5.010.003/8-160.8000.0480.1880.156PHB58PHB58P
PHB60PHB60P6.012.001/2-131.0500.0720.2810.219PHB60PHB60P
PHB62PHB62P9.018.005/8-111.2000.0960.3750.253PHB62PHB62P

Posi-Hex™ Ball Plungers - Steel w/Nylon Ball

Part No.End Force, (Lbs.)ABCDEROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
DPHB48ADPHB48P0.51.006-400.350.0230.0780.05DPHB48ADPHB48P
DPHB50DPHB50P0.51.258-320.4450.0250.0940.063DPHB50DPHB50P
DPHB52DPHB52P1.53.0010-320.570.0250.0940.079DPHB52DPHB52P
DPHB54DPHB54P3.07.001/4-200.6750.0350.1250.079DPHB54DPHB54P
DPHB56DPHB56P4.09.005/16-180.720.0400.1560.095DPHB56DPHB56P
DPHB58DPHB58P5.010.003/8-160.80.0480.1880.156DPHB58DPHB58P
DPHB60DPHB60P6.012.001/2-131.050.0720.2810.219DPHB60DPHB60P
DPHB62DPHB62P9.018.005/8-111.250.0960.3750.253DPHB62DPHB62P



Posi-Hex™ Ball Plungers - Steel

Part No.End Force, NABCØDHEXROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
PHBM4PHBM4P4.010.0M4 x 0.711.20.82.52.0PHBM4PHBM4P
PHBM5PHBM5P8.014.0M5 x 0.814.40.93.02.5PHBM5PHBM5P
PHBHM5PHBHM5P15.022.0M5 x 0.814.40.93.02.5PHBHM5PHBHM5P
PHBM6PHBM6P9.013.0M6 X 1.017.01.03.52.5PHBM6PHBM6P
PHBHM6PHBHM6P28.040.0M6 X 1.017.01.03.52.5PHBHM6PHBHM6P
PHBM8PHBM8P15.030.0M8 x 1.2518.21.55.02.5PHBM8PHBM8P
PHBLM8PHBLM8P5.010.0M8 x 1.2518.21.55.02.5PHBLM8PHBLM8P
PHBHM8PHBHM8P40.060.0M8 x 1.2518.21.55.02.5PHBHM8PHBHM8P
PHBM10PHBM10P20.035.0M10 x 1.522.92.06.04.0PHBM10PHBM10P
PHBLM10PHBLM10P8.015.0M10 x 1.522.92.06.04.0PHBLM10PHBLM10P
PHBHM10PHBHM10P60.090.0M10 x 1.522.92.06.04.0PHBHM10PHBHM10P
PHBM12PHBM12P30.055.0M12 x 1.7526.62.58.06.0PHBM12PHBM12P
PHBLM12PHBLM12P10.020.0M12 x 1.7526.62.58.06.0PHBLM12PHBLM12P
PHBHM12PHBHM12P75.0115.0M12 x 1.7526.62.58.06.0PHBHM12PHBHM12P
PHBM16PHBM16P41.086.0M16 x 2.031.73.510.08.0PHBM16PHBM16P
PHBLM16PHBLM16P20.040.0M16 x 2.031.73.510.08.0PHBLM16PHBLM16P
PHBHM16PHBHM16P68.0142.0M16 x 2.031.73.510.08.0PHBHM16PHBHM16P

Posi-Hex™ Ball Plungers - Steel w/Nylon Ball

Part No.End Force, NABCØDHEXROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
DPHBM4DPHBM4P4.010.0M4 x 0.711.20.82.52.0DPHBM4DPHBM4P
DPHBM5DPHBM5P8.014.0M5 x 0.814.40.93.02.5DPHBM5DPHBM5P
DPHBHM5DPHBHM5P15.022.0M5 x 0.814.40.93.02.5DPHBHM5DPHBHM5P
DPHBM6DPHBM6P9.013.0M6 X 1.017.01.03.52.5DPHBM6DPHBM6P
DPHBHM6DPHBHM6P28.040.0M6 X 1.017.01.083.52.5DPHBHM6DPHBHM6P
DPHBM8DPHBM8P15.030.0M8 x 1.2518.21.55.02.5DPHBM8DPHBM8P
DPHBLM8DPHBLM8P5.010.0M8 x 1.2518.21.55.02.5DPHBLM8DPHBLM8P
DPHBHM8DPHBHM8P40.060.0M8 x 1.2518.21.55.02.5DPHBHM8DPHBHM8P
DPHBM10DPHBM10P20.035.0M10 x 1.522.92.06.04.0DPHBM10DPHBM10P
DPHBLM10DPHBLM10P8.015.0M10 x 1.522.92.06.04.0DPHBLM10DPHBLM10P
DPHBHM10DPHBHM10P60.090.0M10 x 1.522.92.06.04.0DPHBHM10DPHBHM10P
DPHBM12DPHBM12P30.055.0M12 x 1.7526.62.58.06.0DPHBM12DPHBM12P
DPHBLM12DPHBLM12P10.020.0M12 x 1.7526.62.58.06.0DPHBLM12DPHBLM12P
DPHBHM12DPHBHM12P75.0115.0M12 x 1.7526.62.58.06.0DPHBHM12DPHBHM12P
DPHBM16DPHBM16P41.086.0M16 x 2.031.73.510.08.0DPHBM16DPHBM16P
DPHBLM16DPHBLM16P20.040.0M16 x 2.031.73.510.08.0DPHBLM16DPHBLM16P
DPHBHM16DPHBHM16P68.0142.0M16 x 2.031.73.510.08.0DPHBHM16DPHBHM16P
