Ball Plungers

Stainless Steel

Ball plungers can take the highest degree of side load and provide repeatable force time and time again. They offer maximum protection against rust and corrosion, and are ideal for food, medical and special environments. The stainless steel ball design can withstand high temperatures.

Typical Uses

Positioning
Locating
Indexing
Torque limiting
Gear shifters
Detents

Special Features

Smallest & lightest spring-loaded device
Side-load tolerant
Controlled end forces
Screwdriver installation
Stainless steel resists corrosion
Stainless steel withstands high temperatures
Electrical contact

Download the PDF

ANSI (Inch/American) Tables

Metric Tables

CAD Library

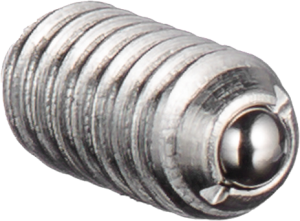

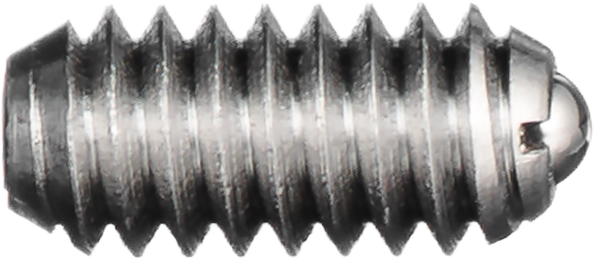

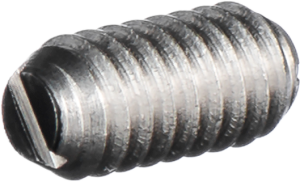

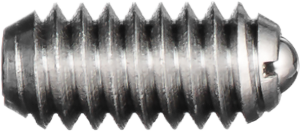

Ball Plungers - Stainless Steel

Part No.		End Force, (Lbs.)		A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
SSB46	SSB46P	1/8	1/2	4-48	0.190	0.020	0.062		SSB46	SSB46P
SSB47	SSB47P	1/4	3/4	5-40	0.250	0.020	0.062		SSB47	SSB47P
SSB48	SSB48P	1/2	1.0	6-40	0.310	0.023	0.078		SSB48	SSB48P
SSB50A	SSB50AP	1/2	1-1/4	8-32	0.340	0.025	0.094		SSB50A	SSB50AP
SSB50	SSB50P	1/2	1-1/4	8-36	0.340	0.025	0.094		SSB50	SSB50P
SSB52	SSB52P	1-1/2	3.0	10-32	0.510	0.025	0.094		SSB52	SSB52P
SSBL52	SSBL52P	1/2	1-1/2	10-32	0.510	0.025	0.094		SSBL52	SSBL52P
SSBH52	SSBH52P	2.0	5.0	10-32	0.510	0.025	0.094		SSBH52	SSBH52P
SSB54	SSB54N	3.0	7.0	1/4-20	0.530	0.035	0.125		SSB54	SSB54N
SSBL54	SSBL54N	2.0	4.0	1/4-20	0.530	0.035	0.125		SSBL54	SSBL54N
SSBH54	SSBH54N	4.0	12.0	1/4-20	0.530	0.035	0.125		SSBH54	SSBH54N
SSB56	SSB56N	4.0	9.0	5/16-18	0.580	0.040	0.156		SSB56	SSB56N
SSBL56	SSBL56N	2.0	4-1/4	5/16-18	0.580	0.040	0.156		SSBL56	SSBL56N
SSBH56	SSBH56N	6.0	17.0	5/16-18	0.580	0.040	0.156		SSBH56	SSBH56N
SSB58	SSB58N	5.0	10.0	3/8-16	0.630	0.048	0.188		SSB58	SSB58N
SSBL58	SSBL58N	2-1/5	5.0	3/8-16	0.630	0.048	0.188		SSBL58	SSBL58N
SSBH58	SSBH58N	6.0	21.0	3/8-16	0.630	0.048	0.188		SSBH58	SSBH58N
SSB60	SSB60N	6.0	12.0	1/2-13	0.750	0.072	0.281		SSB60	SSB60N
SSBL60	SSBL60N	3.0	6.0	1/2-13	0.750	0.072	0.281		SSBL60	SSBL60N
SSBH60	SSBH60N	6.0	30.0	1/2-13	0.750	0.072	0.281		SSBH60	SSBH60N
SSB62	SSB62N	9.0	18.0	5/8-11	0.984	0.096	0.375		SSB62	SSB62N
SSBL62	SSBL62N	4-1/2	9.0	5/8-11	0.984	0.096	0.375		SSBL62	SSBL62N
SSBH62	SSBH62N	7.0	50.0	5/8-11	0.984	0.096	0.375		SSBH62	SSBH62N

Ball Plungers - Stainless Steel

Part No.		End Force, N		A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
SBM3	SBM3P	3.0	4.5	M3 x 0.5	7.0	0.4	1.5		SBM3	SBM3P
SBM4	SBM4P	4.0	10.0	M4 x 0.7	9.0	0.8	2.5		SBM4	SBM4P
SBM5	SBM5P	8.0	14.0	M5 x 0.8	12.0	0.9	3.0		SBM5	SBM5P
SBMH5	SBMH5P	15.0	22.0	M5 x 0.8	12.0	0.9	3.0		SBMH5	SBMH5P
SBM6	SBM6P	9.0	13.0	M6 x 1.0	14.0	1.0	3.5		SBM6	SBM6P
SBML6	SBML6P	2.0	6.0	M6 x 1.0	14.0	1.0	3.5		SBML6	SBML6P
SBMH6	SBMH6P	28.0	40.0	M6 x 1.0	14.0	1.0	3.5		SBMH6	SBMH6P
SBM8	SBM8N	15.0	30.0	M8 x 1.25	16.0	1.5	5.0		SBM8	SBM8N
SBML8	SBML8N	5.0	10.0	M8 x 1.25	16.0	1.5	5.0		SBML8	SBML8N
SBMH8	SBMH8N	40.0	60.0	M8 x 1.25	16.0	1.5	5.0		SBMH8	SBMH8N
SBM10	SBM10N	20.0	35.0	M10 x 1.5	19.0	2.0	6.0		SBM10	SBM10N
SBML10	SBML10N	8.0	15.0	M10 x 1.5	19.0	2.0	6.0		SBML10	SBML10N
SBMH10	SBMH10N	60.0	90.0	M10 x 1.5	19.0	2.0	6.0		SBMH10	SBMH10N
SBM12	SBM12N	30.0	55.0	M12 x 1.75	22.0	2.5	8.0		SBM12	SBM12N
SBML12	SBML12N	10.0	20.0	M12 x 1.75	22.0	2.5	8.0		SBML12	SBML12N
SBMH12	SBMH12N	75.0	115.0	M12 x 1.75	22.0	2.5	8.0		SBMH12	SBMH12N
SBM16	SBM16N	41.0	86.0	M16 x 2.0	24.0	3.5	10.0		SBM16	SBM16N
SBMH16	SBMH16N	68.0	142.0	M16 x 2.0	24.0	3.5	10.0		SBMH16	SBMH16N
