Leveling Devices

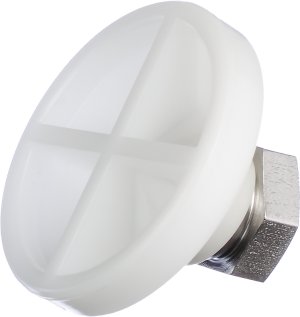

Original Series Socket Style with Delrin® Base

Stainless Steel

These original series socket style leveling devices in stainless steel feature a Delrin® base that protects floors and surface finishes, and provides superior resistance to repeated impacts, solvents, moisture and temperatures up to 190°F. The stainless steel design offers further protection from rust and corrosion.

Typical Uses

  • Data storage equipment
  • Large medical equipment
  • Material handling equipment
  • Industrial workstations
  • Industrial machines

Special Features

  • Hardened ball
  • Integrally machined hex
  • Protects floor/surface finish
  • Large diameter base support
  • 15° swivel off centerline
  • Stainless steel resists rust and corrosion
Download the PDF

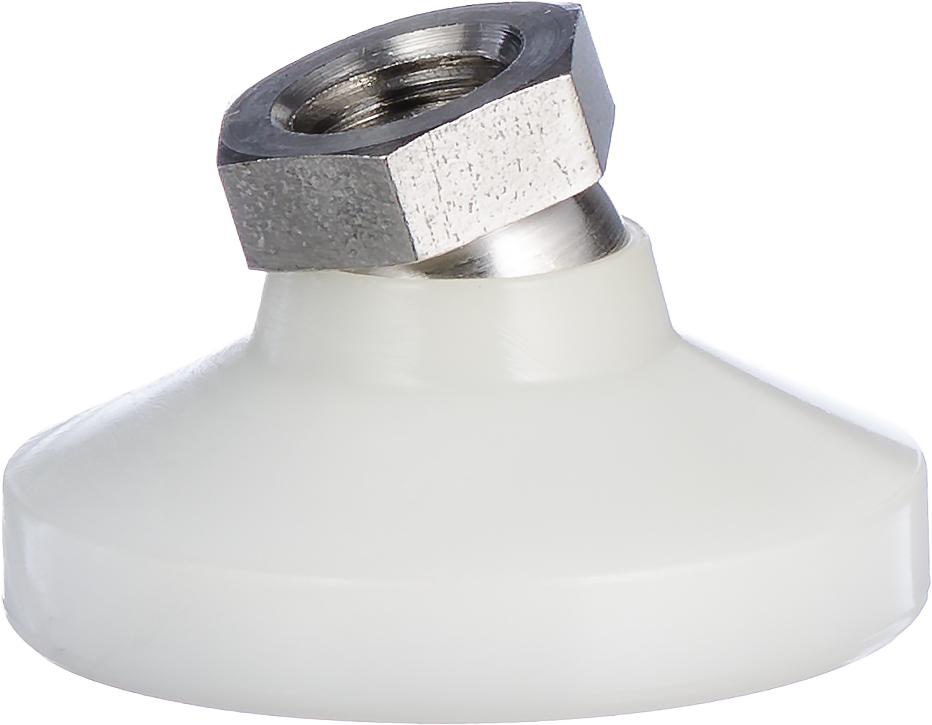

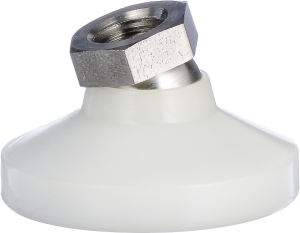

SSNP306B-1
SSNP306B-1
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Original Series Socket Style w/Delrin® Base - Stainless Steel

Part No.Max Load
(Lbs.)		ABCDEFROHSCAD
SSNP298B15010-323/817/323/47/6415/64SSNP298B
SSNP300B2001/4-201/245/6415/325/16SSNP300B
SSNP304B3003/8-165/87/81-1/43/163/8SSNP304B
SSNP306B7001/2-133/41-1/81-7/81/47/16SSNP306B
SSNP308B1,2005/8-117/81-1/42-1/25/167/16SSNP308B
SSNP310B1,8003/4-101-1/161-1/231/25/8SSNP310B
SSNP312B2,4001-81-3/81-7/8413/3213/16SSNP312B

Product not available in metric.
