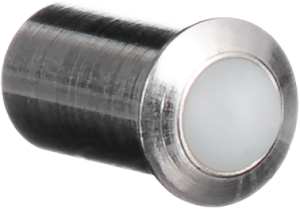

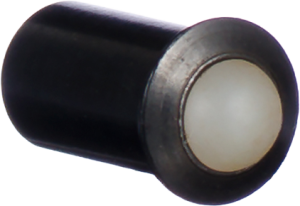

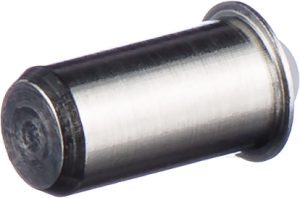

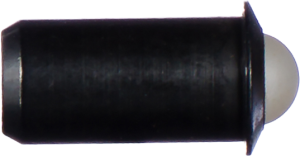

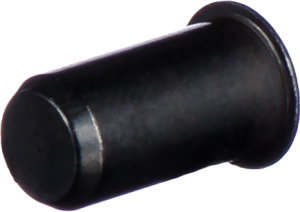

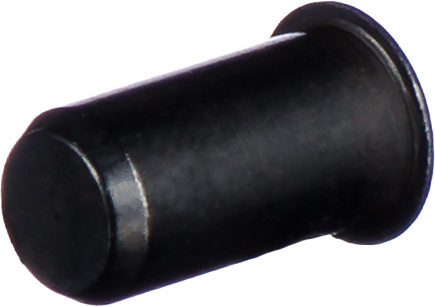

Push-Fit Ball Plungers

Push-fit ball plungers are designed for easy installation into wood, soft plastic or aluminum. Ideal where a threaded spring plunger is impractical or when threaded adjustments are not required.

The stainless steel variety offers the added benefit of maximum protection against rust and corrosion.

Typical Uses

  • Securing
  • Indexing
  • Locating
  • Positioning
  • Electrical insulator
  • Electrical contact

Special Features

  • Easy installation
  • No thread adjustment
  • Stainless steel resists corrosion
  • Stainless steel withstands high temperatures



Download the PDF
Push-Fit-Ball-Plungers
Push-Fit-Ball-Plungers
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Push-Fit Ball Plungers - Heavy End Force w/Nylon Ball

Part No.End Force, (Lbs.)A
+.002/-.000		BCDEFROHSCAD
Steel		CAD
Stainless
Steel
SteelStainless
Steel		InitialFinal
DPFBH48DSPFBH482.05.00.1250.2520.0350.0940.1870.032DPFBH48DSPFBH48
DPFBH52DSPFBH524.010.00.1880.3940.0580.1560.250.040DPFBH52DSPFBH52
DPFBH54DSPFBH546.013.00.2500.4710.0700.1870.3120.045DPFBH54DSPFBH54
DPFBH56DSPFBH568.016.00.3120.6430.0900.2500.3750.045DPFBH56DSPFBH56
DPFBH58DSPFBH5810.018.00.3750.7860.1100.3120.500.078DPFBH58DSPFBH58
DPFBH60DSPFBH6012.023.00.501.100.1610.4370.6880.110DPFBH60DSPFBH60

Push-Fit Ball Plungers - Heavy End Force w/Stainless Steel ball

Part No.End Force, (Lbs.)A
+.002/-.000		BCDEFROHSCAD
Steel		CAD
Stainless
Steel
SteelStainless
Steel		InitialFinal
PFBH48SPFBH482.05.00.1250.2520.0350.0940.1870.032PFBH48SPFBH48
PFBH52SPFBH524.010.00.1880.3940.0580.1560.2500.040PFBH52SPFBH52
PFBH54SPFBH546.013.00.2500.4710.0700.1870.3120.045PFBH54SPFBH54
PFBH56SPFBH568.016.00.3120.6430.0900.2500.3750.045PFBH56SPFBH56
PFBH58SPFBH5810.018.00.3750.7860.1100.3120.5000.078PFBH58SPFBH58
PFBH60SPFBH6012.023.00.5001.1000.1610.4370.6880.110PFBH60SPFBH60

Push-Fit Ball Plungers - Standard End Force w/Nylon Ball

Part No.End Force, (Lbs.)A
+.002/-.000		BCDEFROHSCAD
Steel		CAD
Stainless
Steel
SteelStainless
Steel		InitialFinal
DPFB48DSPFB480.752.50.1250.2520.0350.0940.1870.032DPFB48DSPFB48
DPFB52DSPFB522.005.00.1880.3940.0580.1560.250.04DPFB52DSPFB52
DPFB54DSPFB543.007.00.250.4710.0700.1870.3120.045DPFB54DSPFB54
DPFB56DSPFB564.0010.00.3120.6430.0900.2500.3750.045DPFB56DSPFB56
DPFB58DSPFB585.0014.00.3750.7860.1100.3120.500.078DPFB58DSPFB58
DPFB60DSPFB608.0018.00.501.100.1610.4370.6880.110DPFB60DSPFB60

Push-Fit Ball Plungers –Standard End Force w/Stainless Steel Ball

Part No.End Force, (Lbs.)A
+.002/-.000		BCDEFROHSCAD
Steel		CAD
Stainless
Steel
SteelStainless
Steel		InitialFinal
PFB48SPFB480.7502.50.1250.2520.0350.0940.1870.032PFB48SPFB48
PFB52SPFB522.005.00.1880.3940.0580.1560.2500.040PFB52SPFB52
PFB54SPFB543.007.00.2500.4710.0700.1870.3120.045PFB54SPFB54
PFB56SPFB564.0010.00.3120.6430.0900.2500.3750.045PFB56SPFB56
PFB58SPFB585.0014.00.3750.7860.1100.3120.5000.078PFB58SPFB58
PFB60SPFB608.0018.00.5001.1000.1610.4370.6880.110PFB60SPFB60

Push-Fit Ball Plungers - Light End Force w/Nylon Ball

Part No.End Force, (Lbs.)A
+.002/-.000		BCDEFROHSCAD
Steel		CAD
Stainless
Steel
SteelStainless
Steel		InitialFinal
DPFB47DSPFB470.41.30.1250.2520.0350.0940.1870.032DPFB47DSPFB47
DPFB51DSPFB511.02.50.1880.3940.0580.1560.2500.040DPFB51DSPFB51
DPFB53DSPFB531.53.50.2500.4710.0700.1870.3120.045DPFB53DSPFB53
DPFB55DSPFB552.05.00.3120.6430.0900.2500.3750.045DPFB55DSPFB55
DPFB57DSPFB572.57.00.3750.7860.1100.3120.500.078DPFB57DSPFB57
DPFB59DSPFB594.09.00.501.100.1610.4370.6880.110DPFB59DSPFB59

Push-Fit Ball Plungers - Light End Force w/Stainless Steel Ball

Part No.End Force, (Lbs.)A
+.002/-.000		BCDEFROHSCAD
Steel		CAD
Stainless
Steel
SteelStainless
Steel		InitialFinal
PFB47SPFB470.41.30.1250.2520.0350.0940.1870.032PFB47SPFB47
PFB51SPFB511.02.50.1880.3940.0580.1560.2500.040PFB51SPFB51
PFB53SPFB531.53.50.2500.4710.0700.1870.3120.045PFB53SPFB53
PFB55SPFB552.05.00.3120.6430.0900.2500.3750.045PFB55SPFB55
PFB57SPFB572.57.00.3750.7860.1100.3120.500.078PFB57SPFB57
PFB59SPFB594.09.00.501.100.1610.4370.6880.110PFB59SPFB59

Push-Fit Ball Plungers - Stainless Steel w/Stainless Steel Ball

Part No.End Force, NA
+.05/-.00		BCDEFSuggested Installation
Min Hole (mm)		ROHSCAD
InitialFinal
SPFBM43.311.14.08.00.093.06.00.94.1SPFBM4
SPFBM68.922.26.010.51.354.08.01.16.1SPFBM6
SPFBM820.035.08.017.02.06.010.01.48.1SPFBM8
SPFBM1030.053.010.019.02.58.012.02.010.1SPFBM10
SPFBM1241.086.012.021.53.510.015.02.512.1SPFBM12
