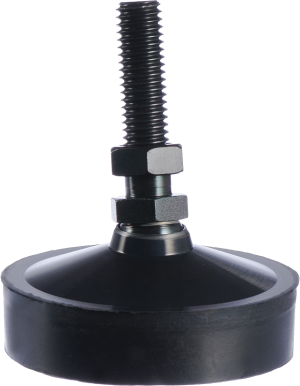

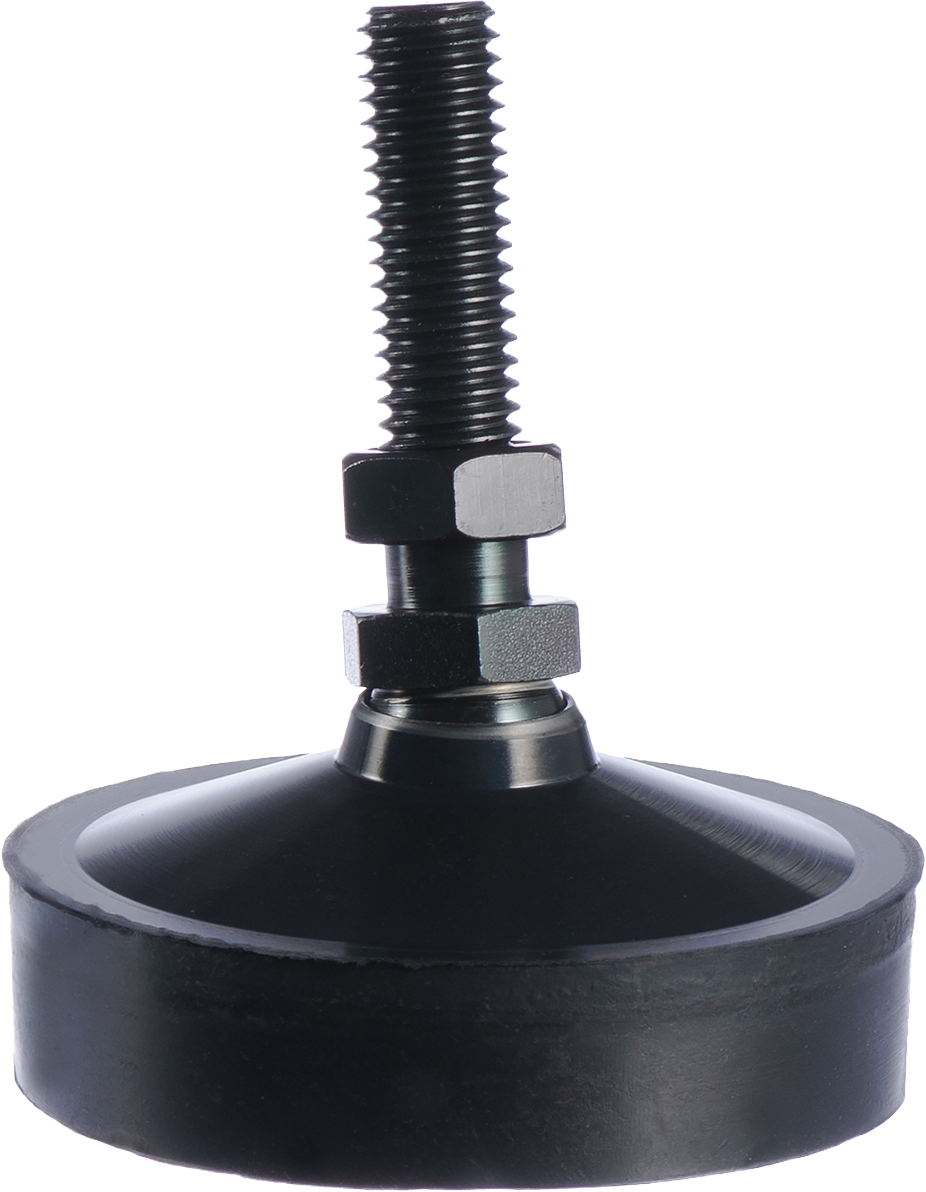

LMS Anti-Vibration Levelers

The level mount swivel (LMS) anti-vibration leveler is a precision, frequency-tuned, swivel-style leveling device that provides shock attenuation and low-frequency vibration isolation for sensitive equipment.

Designed alongside Hutchinson Aerospace & Industry, Inc., (formerly Barry Controls) in the late 1990s under a new product development initiative program, the LMS anti-vibration leveler has proven time and again to be a reliable leveling device that our customers have depended on for more than 20 years.



Key Features:

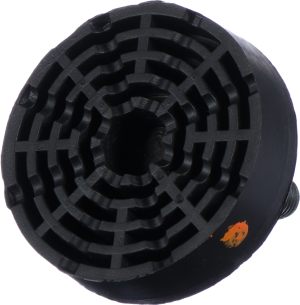

  • Molded rubber to metal base for permanent bond
  • Three-inch radial ring pad
  • 10–20 Hz natural frequency
  • Operating temperature -20°F–180°F (-30°C–82°C)
  • Transmissibility at resonance 8:1
  • Corrosion-resistant steel

Benefits:

  • Premium vibration control, shock attenuation and noise reduction
  • Increased machinery performance, precision and throughput
  • Extended machinery life through protection from shock and vibration
  • Uniform radial stiffness for maximum stability
  • Low frequency isolation for greater deflection

Typical Uses:

  • Data storage equipment
  • Large medical equipment
  • Industrial workstations
  • Sensitive electronic manufacturing equipment
  • Sensitive industrial machines
  • Semiconductor equipment
  • High-precision equipment
Download the PDF
LMS-12082
LMS-12082
ANSI (Inch/American) Tables
Metric Tables
CAD Library

LMS Anti-Vibration Levelers

Part No.Max Load (Lbs.)Max DeflectionABCDEFROHSCAD
LMS-12042100-4000.101/2-130.751.633.00.772.0LMS-12042
LMS-12044100-4000.101/2-130.751.633.00.774.0LMS-12044
LMS-12082200-8000.101/2-130.751.633.00.772.0LMS-12082
LMS-12084200-8000.101/2-130.751.633.00.774.0LMS-12084
LMS-12122400-12000.101/2-130.751.633.00.772.0LMS-12122
LMS-12124400-12000.101/2-130.751.633.00.774.0LMS-12124

LMS Anti-Vibration Levelers

Part No.Max Load (Lbs.)Max DeflectionABCDEFROHSCAD
LMS-M112042100-4002.5M12 x 1.7519417619.651LMS-M112042
LMS-M112044100-4002.5M12 x 1.7519417619.684LMS-M112044
LMS-M112082200-8002.5M12 x 1.7519417619.651LMS-M112082
LMS-M112084200-8002.5M12 x 1.7519417619.684LMS-M112084
LMS-M112122400-12002.5M12 x 1.7519417619.651LMS-M112122
LMS-M112124400-12002.5M12 x 1.7519417619.684LMS-M112124
