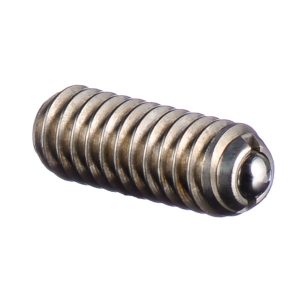

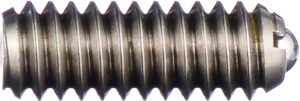

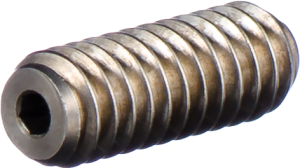

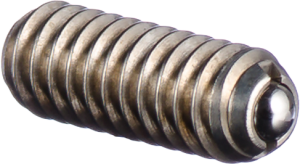

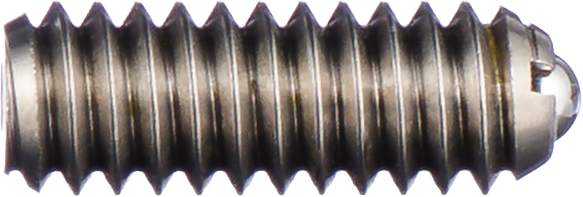

Posi-Hex™ Ball Plungers

Stainless Steel

The enhanced design of our Posi-HexTM ball plunger allows for easy installation, removal or change-outs using only a hex wrench. Designed to withstand maximum installation torque, Posi-HexTM works great when using our thread locking element.

The stainless steel construction offers maximum protection against corrosion and is ideal for food, medical and special environments. With eight different sizes in both steel and stainless steel, Vlier has the right part for the job.

Typical Uses

  • Indexing
  • Locating
  • Detents
  • Positioning
  • Electrical contacts
  • Adjustable set screw

Special Features

  • Easy installation with a hex wrench
  • Will withstand high torque
  • Controlled end forces
  • Ideal for food, medical & special environments
Download the PDF
Posi-Hex Ball Plungers - Stainless Steel
Posi-Hex Ball Plungers - Stainless Steel
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Posi-Hex™ Ball Plungers - Stainless Steel

Part No.Part No.End Force, (Lbs.)Thread(in.)(in.)(in.)(in.)ROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinalABCDE
SSPHB48ASSPHB48AP0.51.06-400.3500.0230.0780.05SSPHB48ASSPHB48P
SSPHB50SSPHB50P0.51.258-320.4450.0250.0940.063SSPHB50SSPHB50P
SSPHB52SSPHB52P1.53.010-320.5700.0250.0940.079SSPHB52SSPHB52P
SSPHB54SSPHB54P3.07.01/4-200.6750.0350.1250.079SSPHB54SSPHB54P
SSPHB56SSPHB56P4.09.05/16-180.7200.040.1560.095SSPHB56SSPHB56P
SSPHB58SSPHB58P5.010.03/8-160.8000.0480.1880.156SSPHB58SSPHB58P
SSPHB60SSPHB60P6.012.01/2-131.0500.720.2810.219SSPHB60SSPHB60P
SSPHB62SSPHB62P9.018.05/8-111.2500.0960.3750.253SSPHB62SSPHB62P

Posi-Hex™ Ball Plungers - Stainless Steel w/Nylon Ball

Part No.End Force, (Lbs.)Thread(in.)(in.)(in.)(in.)ROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinalABCDE
DSSPHB48ADSSPHB48P0.51.006-400.3500.0230.0780.050DSSPHB48ADSSPHB48P
DSSPHB50DSSPHB50P0.51.258-320.4450.0250.0940.063DSSPHB50DSSPHB50P
DSSPHB52DSSPHB52P1.53.0010-320.5700.0250.0940.079DSSPHB52DSSPHB52P
DSSPHB54DSSPHB54P3.07.001/4-200.6750.0350.1250.079DSSPHB54DSSPHB54P
DSSPHB56DSSPHB56P4.09.005/16-180.7200.0400.1560.095DSSPHB56DSSPHB56P
DSSPHB58DSSPHB58P5.010.003/8-160.8000.0480.1880.156DSSPHB58DSSPHB58P
DSSPHB60DSSPHB60P6.012.001/2-131.0500.7200.2810.219DSSPHB60DSSPHB60P
DSSPHB62DSSPHB62P9.018.005/8-111.2500.0960.3750.253DSSPHB62DSSPHB62P



Posi-Hex™ Ball Plungers - Stainless Steel

Part No.End Force, NThread(mm)(mm)(mm)(mm)ROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinalABCØDHEX
SSPHBM4SSPHBM4P4.010.0M4 x 0.711.20.82.52.0SSPHBM4SSPHBM4P
SSPHBM5SSPHBM5P8.014.0M5 x 0.814.40.93.02.5SSPHBM5SSPHBM5P
SSPHBHM5SSPHBHM5P15.022.0M5 x 0.814.40.93.02.5SSPHBHM5SSPHBHM5P
SSPHBM6SSPHBM6P9.013.0M6 X 1.017.01.03.52.5SSPHBM6SSPHBM6P
SSPHBHM6SSPHBHM6P28.040.0M6 X 1.017.01.083.52.5SSPHBHM6SSPHBHM6P
SSPHBM8SSPHBM8P15.030.0M8 x 1.2518.21.55.02.5SSPHBM8SSPHBM8P
SSPHBLM8SSPHBLM8P5.010.0M8 x 1.2518.21.55.02.5SSPHBLM8SSPHBLM8P
SSPHBHM8SSPHBHM8P40.060.0M8 x 1.2518.21.55.02.5SSPHBHM8SSPHBHM8P
SSPHBM10SSPHBM10P20.035.0M10 x 1.522.92.06.04.0SSPHBM10SSPHBM10P
SSPHBLM10SSPHBLM10P8.015.0M10 x 1.522.92.06.04.0SSPHBLM10SSPHBLM10P
SSPHBHM10SSPHBHM10P60.090.0M10 x 1.522.92.06.04.0SSPHBHM10SSPHBHM10P
SSPHBM12SSPHBM12P30.055.0M12 x 1.7526.62.58.06.0SSPHBM12SSPHBM12P
SSPHBLM12SSPHBLM12P10.020.0M12 x 1.7526.62.58.06.0SSPHBLM12SSPHBLM12P
SSPHBHM12SSPHBHM12P75.0115.0M12 x 1.7526.62.58.06.0SSPHBHM12SSPHBHM12P
SSPHBM16SSPHBM16P41.086.0M16 x 2.031.73.510.08.0SSPHBM16SSPHBM16P
SSPHBLM16SSPHBLM16P20.040.0M16 x 2.031.73.510.08.0SSPHBLM16SSPHBLM16P
SSPHBHM16SSPHBHM16P68.0142.0M16 x 2.031.73.510.08.0SSPHBHM16SSPHBHM16P

Posi-Hex™ Ball Plungers - Stainless Steel w/Nylon Ball

Part No.End Force, NThread(mm)(mm)(mm)(mm)ROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinalABCØDHEX
DSSPHBM4DSSPHBM4P4.010.0M4 x 0.711.20.82.52.0DSSPHBM4DSSPHBM4P
DSSPHBM5DSSPHBM5P8.014.0M5 x 0.814.40.93.02.5DSSPHBM5DSSPHBM5P
DSSPHBHM5DSSPHBHM5P15.022.0M5 x 0.814.40.93.02.5DSSPHBHM5DSSPHBHM5P
DSSPHBM6DSSPHBM6P9.013.0M6 X 1.017.01.03.52.5DSSPHBM6DSSPHBM6P
DSSPHBHM6DSSPHBHM6P28.040.0M6 X 1.017.01.083.52.5DSSPHBHM6DSSPHBHM6P
DSSPHBM8DSSPHBM8P15.030.0M8 x 1.2518.21.55.02.5DSSPHBM8DSSPHBM8P
DSSPHBLM8DSSPHBLM8P5.010.0M8 x 1.2518.21.55.02.5DSSPHBLM8DSSPHBLM8P
DSSPHBHM8DSSPHBHM8P40.060.0M8 x 1.2518.21.55.02.5DSSPHBHM8DSSPHBHM8P
DSSPHBM10DSSPHBM10P20.035.0M10 x 1.522.92.06.04.0DSSPHBM10DSSPHBM10P
DSSPHBLM10DSSPHBLM10P8.015.0M10 x 1.522.92.06.04.0DSSPHBLM10DSSPHBLM10P
DSSPHBHM10DSSPHBHM10P60.090.0M10 x 1.522.92.06.04.0DSSPHBHM10DSSPHBHM10P
DSSPHBM12DSSPHBM12P30.055.0M12 x 1.7526.62.58.06.0DSSPHBM12DSSPHBM12P
DSSPHBLM12DSSPHBLM12P10.020.0M12 x 1.7526.62.58.06.0DSSPHBLM12DSSPHBLM12P
DSSPHBHM12DSSPHBHM12P75.0115.0M12 x 1.7526.62.58.06.0DSSPHBHM12DSSPHBHM12P
DSSPHBM16DSSPHBM16P41.086.0M16 x 2.031.73.510.08.0DSSPHBM16DSSPHBM16P
DSSPHBLM16DSSPHBLM16P20.040.0M16 x 2.031.73.510.08.0DSSPHBLM16DSSPHBLM16P
DSSPHBHM16DSSPHBHM16P68.0142.0M16 x 2.031.73.510.08.0DSSPHBHM16DSSPHBHM16P
