Leveling Devices

Original Series Stud Style Extended Length

Steel

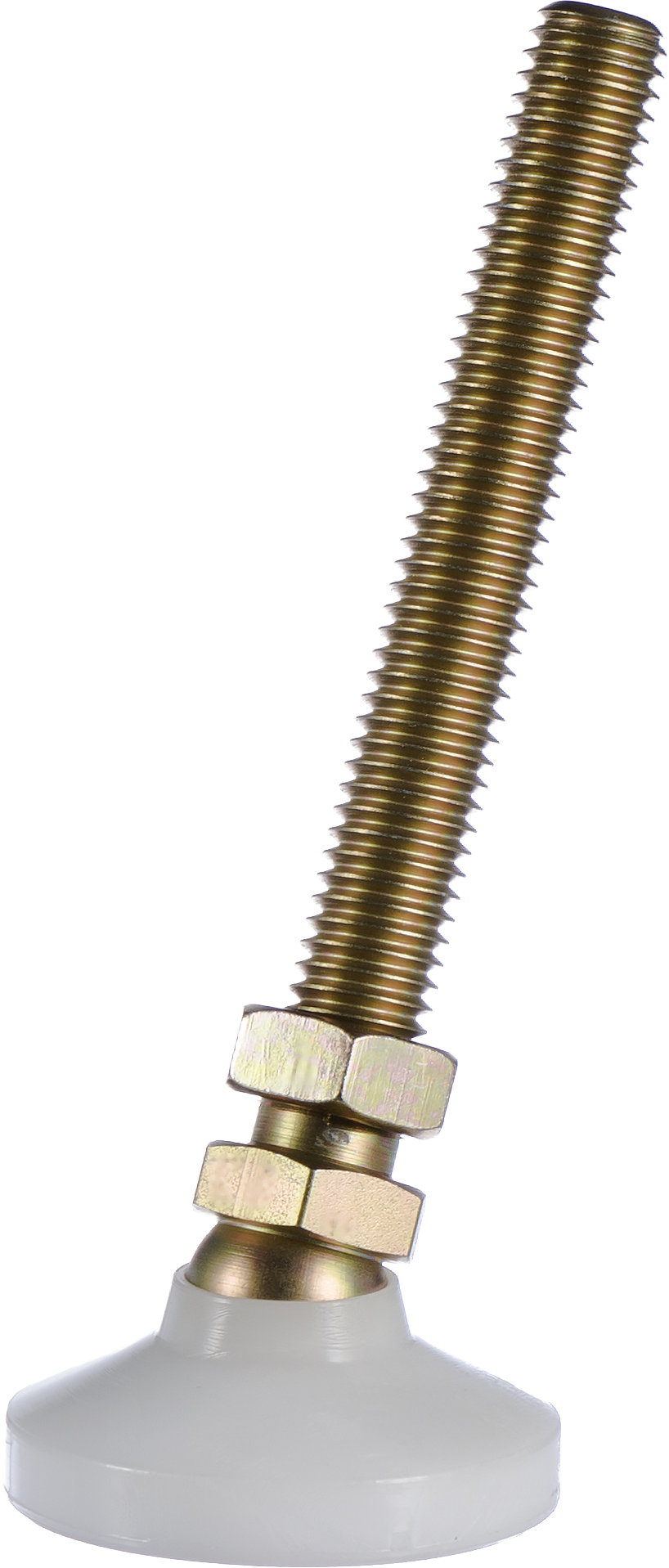

Vlier’s original series stud style leveling devices in steel have an extended length option for applications that require additional clearance.

The natural (white) Delrin® plastic base option provides protection for floor or surface finishes. Delrin offers high resistance to repeated impacts, moisture, solvents and heat up to 190°F.

The elastomer pad option offers a .125” neoprene elastomer bonded to the bottom of the base to provide non-skid support. Zinc plate with gold chromate finish is standard.

Typical Uses

  • Data storage equipment
  • Large medical equipment
  • Material handling equipment
  • Industrial workstations
  • Industrial machines

Special Features

  • Hardened ball
  • Stud with integrally machined hex
  • Long-life, high-impact Delrin® pad protects surface finish
  • Large diameter base support
  • 15° swivel off centerline
Download the PDF
NP307S-1
NP307S-1
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Original Series Stud Style Extended Length - Steel

Part No.Max Load
(Lbs.)		ABCDEFROHSCAD
P299S70010-323/817/323/47/642.0P299S
P301S1,1001/4-201/245/6415/322.5P301S
P305S3,7503/8-165/87/81-1/43/164.0P305S
P307S5,0001/2-133/41-1/81-7/81/44.0P307S
P309S6,0005/8-117/81-1/42-1/25/164.0P309S
P311S7,2003/4-101-1/161-1/231/24.0P311S
P313S22,0001-81-3/81-7/8413/328.0P313S

Original Series Stud Style w/Delrin® Base - Extended Length - Steel

Part No.Max Load
(Lbs.)		ABCDEFROHSCAD
NP299S15010-323/817/323/47/642.0NP299S
NP301S2001/4-201/245/6415/322.5NP301S
NP305S3003/8-165/87/81-1/43/164.0NP305S
NP307S7001/2-133/41-1/81-7/81/44.0NP307S
NP309S1,2005/8-117/81-1/42-1/25/164.0NP309S
NP311S1,8003/4-101-1/161-1/231/24.0NP311S
NP313S2,4001-81-3/81-7/8413/328.0NP313S

Original Series Stud Style w/Elastomer Pad - Extended Length - Steel

Part No.Max Load (Lbs.)ABCDEFROHSCAD
EP299S52510-323/817/323/47/642.0EP299S
EP301S8001/4-201/245/6415/322.5EP301S
EP305S2,8003/8-165/87/81-1/43/164.0EP305S
EP307S3,7501/2-133/41-1/81-7/81/44.0EP307S
EP309S4,5005/8-117/81-1/42-1/25/164.0EP309S
EP311S5,4003/4-101-1/161-1/231/24.0EP311S
EP313S16,4001-81-3/81-7/8413/328.0EP313S

Product not available in metric.
