Leveling Devices

Original Series Socket Style with Elastomer Pad

Steel

Vlier’s original series socket style leveling devices in steel feature an elastomer pad that provides a .125 inch neoprene elastomer bonded to the bottom of the base for non-skid support. For applications with an existing stud installation, the standard design is zinc plate with gold chromate finish.

Typical Uses

  • Data storage equipment
  • Large medical equipment
  • Material handling equipment
  • Industrial workstations
  • Industrial machines

Special Features

  • Hardened ball
  • Stud with integrally machined hex
  • Large diameter base support
  • 15° swivel off centerline
Download the PDF

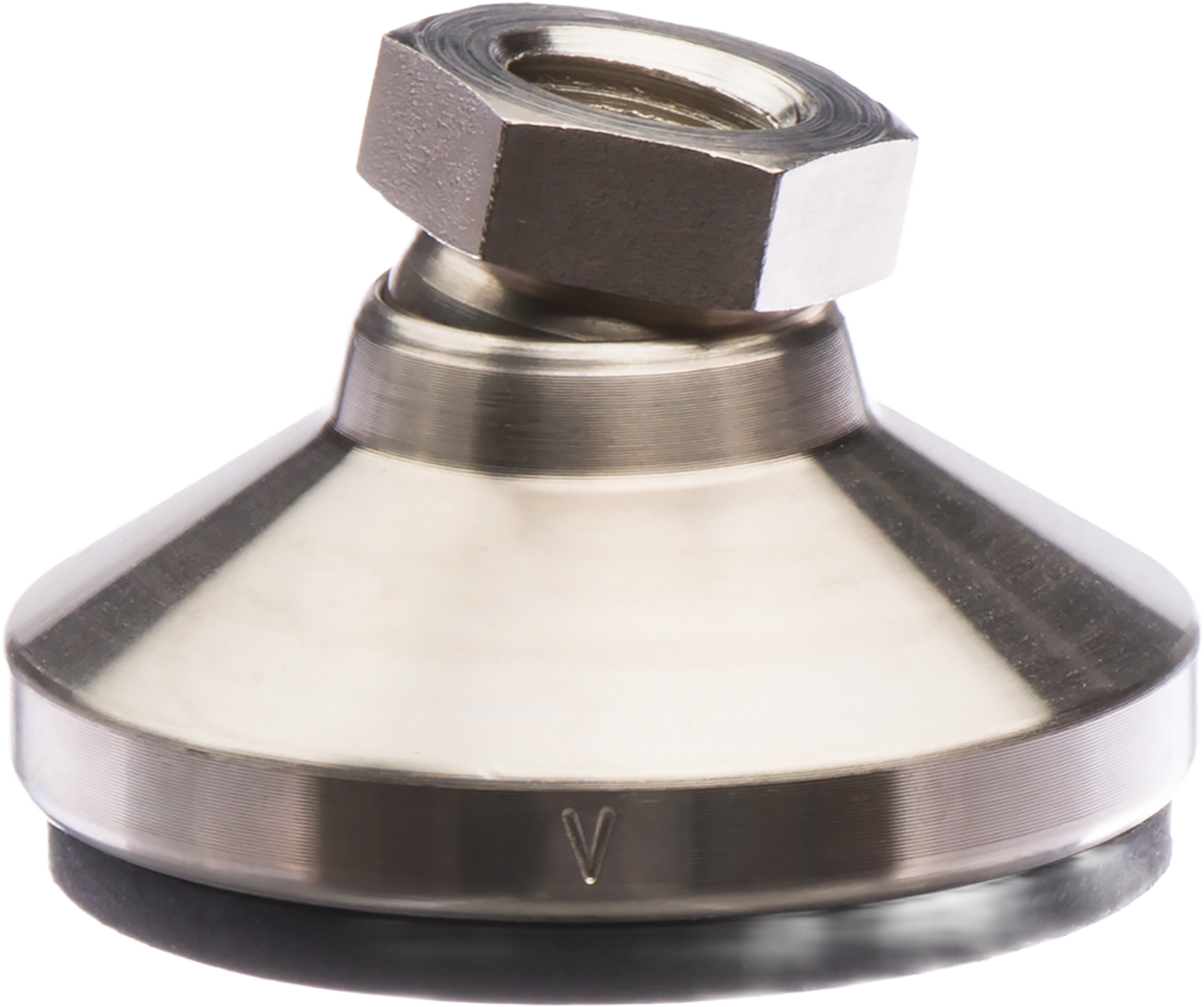

HVEP306B3--1
HVEP306B3--1
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Original Series Socket Style w/Elastomer Pad - Steel

Part No.Max Load
(Lbs.)		ABCDEFROHSCAD
EP298B52510-323/817/323/47/6415/64EP298B
EP300B8001/4-201/245/6415/325/16EP300B
EP304B2,8003/8-165/87/81-1/43/163/8EP304B
EP306B3,7501/2-133/41-1/81-7/81/47/16EP306B
EP308B4,5005/8-117/81-1/42-1/25/167/16EP308B
EP310B5,4003/4-101-1/161-1/231/25/8EP310B
EP312B16,4001-81-3/81-7/8413/3213/16EP312B

Original Series Socket Style w/Elastomer Pad - Steel

Part No.Max Load
(kg.)		ABCDEFROHSCAD
EPM10B1,273M10 x 1.517223259.6EPM10B
EPM12B1,750M12 x 1.75192948611.0EPM12B
EPM16B2,046M16 x 2.0243264811.0EPM16B
EPM20B2,455M20 x 2.53038761315.7EPM20B
