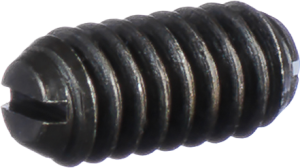

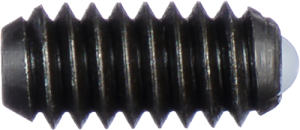

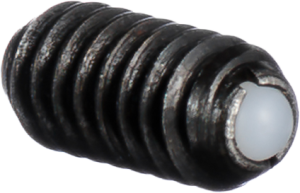

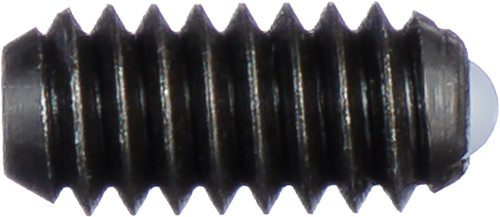

Nylon Ball Plungers

Steel

Nylon ball plungers in steel provide resistance to repeated impacts, moisture, solvents and heat up to 190ºF. The nylon ball nose provides electrical insulating properties.

Typical Uses

Positioning
Locating
Indexing
Torque limiting
Gear shifters
Detents

Special Features

Steel body with nylon ball
Highly durable & non-marring
Zinc plate with black, gold or clear chromate
Compact & lightweight
Withstands side loading
Controlled end forces

Download the PDF

ANSI (Inch/American) Tables

Metric Tables

CAD Library

Nylon Ball Plungers - Steel w/Nylon Ball

Part No.		End Force, (Lbs.)		A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
DB46	DB46P	1/8	1/2	4-48	0.187	0.020	0.062		DB46	DB46P
DB47	DB47P	1/4	3/4	5-40	0.250	0.020	0.062		DB47	DB47P
DB48	DB48P	1/2	1.0	6-40	0.312	0.023	0.078		DB48	DB48P
DB50A	DB50AP	1/2	1-1/4	8-32	0.344	0.025	0.094		DB50A	DB50AP
DB50	DB50P	1/2	1-1/4	8-36	0.344	0.025	0.094		DB50	DB50P
DB52	DB52P	1-1/2	3.0	10-32	0.513	0.025	0.094		DB52	DB52P
DBL52	DBL52P	1/2	1-1/2	10-32	0.513	0.025	0.094		DBL52	DBL52P
DBH52	DBH52P	2.0	5.0	10-32	0.513	0.025	0.094		DBH52	DBH52P
DB54	DB54N	3.0	7.0	1/4-20	0.531	0.035	0.125		DB54	DB54N
DBL54	DBL54N	2.0	4.0	1/4-20	0.531	0.035	0.125		DBL54	DBL54N
DBH54	DBH54N	4.0	12.0	1/4-20	0.531	0.035	0.125		DBH54	DBH54N
DB56	DB56N	4.0	9.0	5/16-18	0.578	0.04	0.156		DB56	DB56N
DBL56	DBL56N	2.0	4-1/4	5/16-18	0.578	0.04	0.156		DBL56	DBL56N
DBH56	DBH56N	6.0	17.0	5/16-18	0.578	0.04	0.156		DBH56	DBH56N
DB58	DB58N	5.0	10.0	3/8-16	0.625	0.048	0.188		DB58	DB58N
DBL58	DBL58N	2-1/2	5.0	3/8-16	0.625	0.048	0.188		DBL58	DBL58N
DBH58	DBH58N	6.0	21.0	3/8-16	0.625	0.048	0.188		DBH58	DBH58N
DB60	DB60N	6.0	12.0	1/2-13	0.750	0.072	0.281		DB60	DB60N
DBL60	DBL60N	3.0	6.0	1/2-13	0.750	0.072	0.281		DBL60	DBL60N
DBH60	DBH60N	6.0	30.0	1/2-13	0.750	0.072	0.281		DBH60	DBH60N
DB62	DB62N	9.0	18.0	5/8-11	0.984	0.096	0.375		DB62	DB62N
DBL62	DBL62N	4-1/2	9.0	5/8-11	0.984	0.096	0.375		DBL62	DBL62N
DBH62	DBH62N	7.0	50.0	5/8-11	0.984	0.096	0.375		DBH62	DBH62N

Nylon Ball Plungers - Steel w/Nylon Ball

Part No.		End Force, N		A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
DBM3A	DBM3AP	3.0	4.5	M3 x 0.5	7.0	0.4	1.5		DBM3A	DBM3AP
DBM4A	DBM4AP	4.0	10.0	M4 x 0.7	9.0	0.8	2.5		DBM4A	DBM4AP
DBM5A	DBM5AP	8.0	14.0	M5 x 0.8	12.0	0.9	3.0		DBM5A	DBM5AP
DBMH5A	DBMH5AP	15.0	22.0	M5 x 0.8	12.0	0.9	3.0		DBMH5A	DBMH5AP
DBM6A	DBM6AP	9.0	13.0	M6 x 1.0	14.0	1.0	3.5		DBM6A	DBM6AP
DBML6A	DBML6AP	2.0	6.0	M6 x 1.0	14.0	1.0	3.5		DBML6A	DBML6AP
DBMH6A	DBMH6AP	28.0	40.0	M6 x 1.0	14.0	1.0	3.5		DBMH6A	DBMH6AP
DBM8A	DBM8AN	15.0	30.0	M8 x 1.25	16.0	1.5	5.0		DBM8A	DBM8AN
DBML8A	DBML8AN	5.0	10.0	M8 x 1.25	16.0	1.5	5.0		DBML8A	DBML8AN
DBMH8A	DBMH8AN	40.0	60.0	M8 x 1.25	16.0	1.5	5.0		DBMH8A	DBMH8AN
DBM10A	DBM10AN	20.0	35.0	M10 x 1.5	19.0	2.0	6.0		DBM10A	DBM10AN
DBML10A	DBML10AN	8.0	15.0	M10 x 1.5	19.0	2.0	6.0		DBML10A	DBML10AN
DBMH10A	DBMH10AN	60.0	90.0	M10 x 1.5	19.0	2.0	6.0		DBMH10A	DBMH10AN
DBM12A	DBM12AN	30.0	55.0	M12 x 1.75	22.0	2.5	8.0		DBM12A	DBM12AN
DBML12A	DBML12AN	10.0	20.0	M12 x 1.75	22.0	2.5	8.0		DBML12A	DBML12AN
DBMH12A	DBMH12AN	75.0	115.0	M12 x 1.75	22.0	2.5	8.0		DBMH12A	DBMH12AN
DBM16A	DBM16AN	41.0	86.0	M16 x 2.0	24.0	3.5	10.0		DBM16A	DBM16AN
DBMH16A	DBMH16AN	68.0	142.0	M16 x 2.0	24.0	3.5	10.0		DBMH16A	DBMH16AN
