Leveling Devices

Original Series Socket Style

Steel

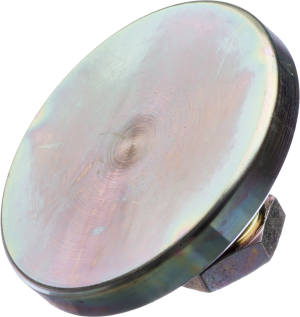

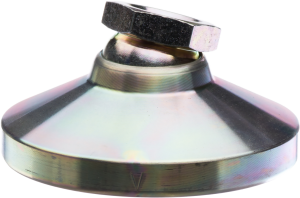

Vlier’s original series socket style leveling devices in steel swivel 15° off the centerline to adjust to uneven surfaces and level machine tools, electronic racks,  benches, data storage, power generation, machine centers and others. For applications with an existing stud installation, the standard design is zinc plate with gold chromate finish.

The fine thread option is ideal for applications that require a more sensitive leveling adjustment.

Typical Uses

  • Data storage equipment
  • Large medical equipment
  • Material handling equipment
  • Industrial workstations
  • Industrial machines

Special Features

  • Hardened ball
  • Stud with integrally machined hex
  • Large diameter base support
  • 15° swivel off centerline
  • Fine thread option
Download the PDF
HVP308B--1
HVP308B--1
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Original Series Socket Style - Steel

Part No.Max Load (Lbs.)ABCDEFROHSCAD
P298B70010-323/817/323/47/6415/64P298B
P300B1,1001/4-201/245/6415/325/16P300B
P304B3,7503/8-165/87/81-1/43/163/8P304B
P306B5,0001/2-133/41-1/81-7/81/47/16P306B
P308B6,0005/8-117/81-1/42-1/25/167/16P308B
P310B7,2003/4-101-1/161-1/231/25/8P310B
P312B22,0001-81-3/81-7/8413/3213/16P312B

Original Series Socket Style – Steel Fine Thread

Part No.Max Load (Lbs.)ABCDEFROHSCAD
FP304B3,7503/8-245/87/81-1/43/163/8FP304B
FP306B5,0001/2-203/41-1/81-7/81/47/16FP306B
FP308B6,0005/8-187/81-1/42-1/25/167/16FP308B
FP310B7,2003/4-161-1/161-1/231/25/8FP310B
FP312B22,0001-121-3/81-7/8413/3213/16FP312B

Original Series Socket Style - Steel

Part No.Max Load
(kg.)		ABCDEFROHSCAD
PM10B1,750M10 x 1.517223259.6PM10B
PM12B2,273M12 x 1.75192948611.0PM12B
PM16B2,727M16 x 2.0243264811.0PM16B
PM20B3,273M20 x 2.53038761315.7PM20B
PM24B9,979M24 x 3.035481021020.5PM24B
