Industrial Glides

VG Series

Looking for floor saver glides with off-the-shelf availability? Vlier VG series industrial glides are designed to protect floors and surfaces from furniture, light duty machinery, cabinets and more at an economical cost. These ready-to-ship levelers are available in 10 styles to choose from with varying stud style lengths to suit your needs. Each comes 12 to a package.

Typical Uses

Chair glides
Cabinets/furniture glides
Light duty machinery

Special Features

Low cost
Popular inch and metric sizes
Off-the-shelf availability
Non-marking pad material
Superior floor protection
Varied stud lengths available for maximum height adjustment
10 available styles
12 per package

Download the PDF

ANSI (Inch/American) Tables

Metric Tables

CAD Library

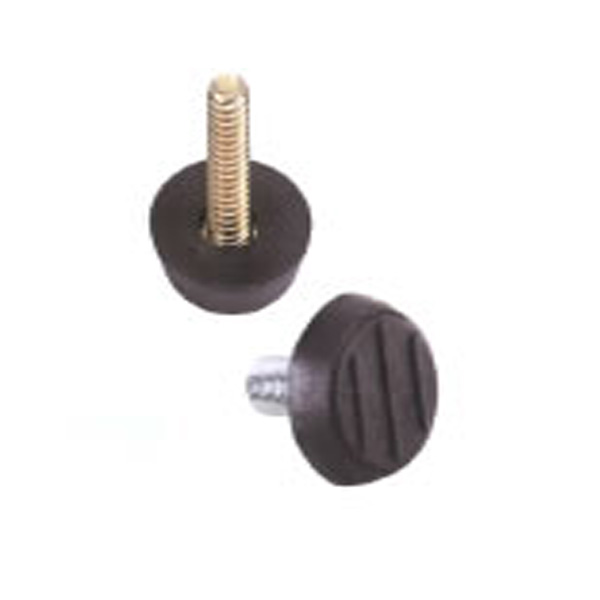

VGA Industrial Glides

Part No.	Thread	Thread Length	Max Loads Lbs.	Pad Dia.	Pad Ht. (in.)	CAD
Part No.	Thread	Thread Length	Max Loads Lbs.	Pad Dia.	Pad Ht. (in.)	CAD
VGA24I625	1/4-20	0.98	75	0.95	0.32	VGA24I625
VGA38I623	1/4-20	1.10	100	1.44	0.34	VGA38I623
VGA38I827	5/16-18	1.06	100	1.44	0.34	VGA38I827
VGA38I925	3/8-16	0.98	100	1.44	0.34	VGA38I925

VGB Industrial Glides

Part No.	Thread	Thread Length	Max Loads (Lbs.)	Pad Dia.	Pad Ht.	CAD

VGB51AI960	3/8-16	2.36	200	2	0.43	VGB51AI960
VGB51AI960-1	3/8-16	2.36	200	2	0.43	VGB51AI960-1

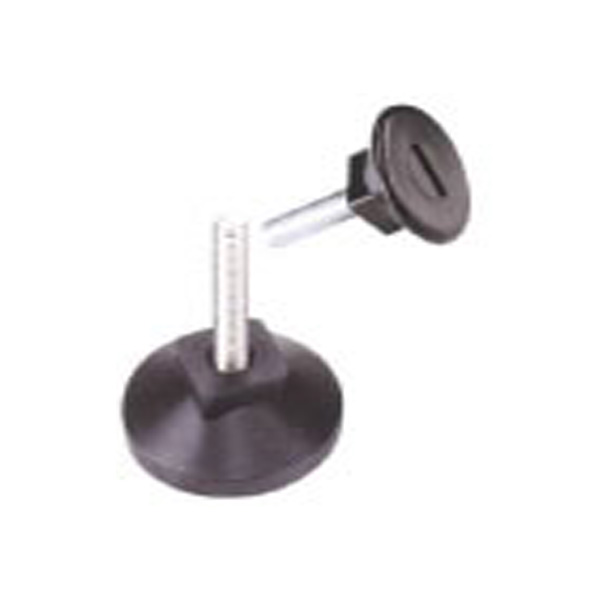

VGC Industrial Glides

Part No.	Thread	Thread Length	Max Loads (Lbs.)	Pad Dia.	Pad Ht.	CAD
Part No.	Thread	Thread Length	Max Loads (Lbs.)	Pad Dia.	Pad Ht.	CAD
VGC28I618	1/4-20	0.71	80	1.10	0.57	VGC28I618
VGC28I625	1/4-20	1.00	80	1.10	0.57	VGC28I625
VGC28I818	5/16-18	0.71	80	1.10	0.57	VGC28I818
VGC50AI1268	1/2-13	2.68	200	1.97	0.83	VGC50AI1268

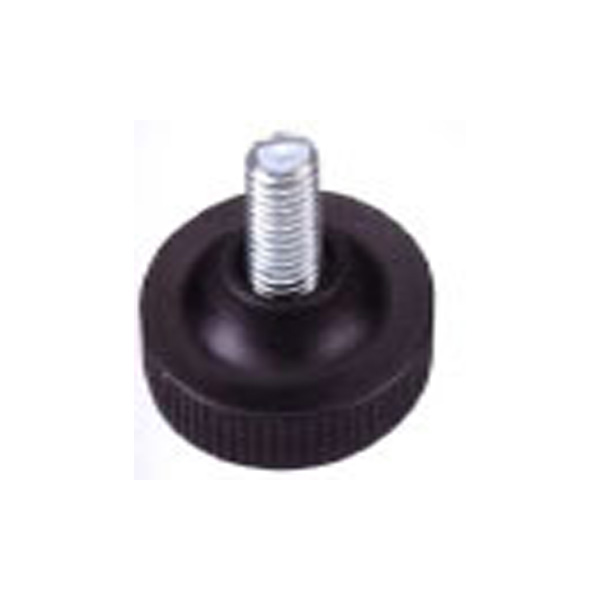

VGD Industrial Glides

Part No.	Thread	Thread Length	Max Loads (Lbs.)	Pad Dia.	Pad Ht.	CAD
Part No.	Thread	Thread Length	Max Loads (Lbs.)	Pad Dia.	Pad Ht.	CAD
VGD32I620	1/4-20	0.79	100	1.23	0.56	VGD32I620
VGD32I540	1/4-20	1.58	100	1.23	0.56	VGD32I540
VGD32I820	5/16-18	0.79	100	1.23	0.56	VGD32I820
VGD32I832	5/16-18	1.26	100	1.23	0.56	VGD32I832
VGD32I914	3/8-16	0.55	100	1.23	0.56	VGD32I914
VGD32I934	3/8-16	1.34	100	1.23	0.56	VGD32I934

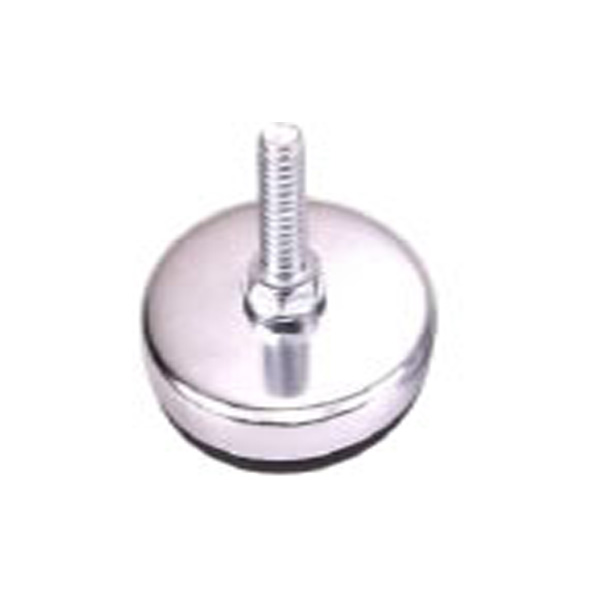

VGF Industrial Glides

Part No.	Thread	Thread Length	Max Loads (Lbs.)	Pad Dia.	Pad Ht.	CAD
Part No.	Thread	Thread Length	Max Loads (Lbs.)	Pad Dia.	Pad Ht.	CAD
VGF35I625	1/4-20	0.98	200	1.38	0.51	VGF35I625
VGF35I630	1/4-20	1.18	200	1.38	0.51	VGF35I630
VGF35I815	5/16-18	0.59	200	1.38	0.51	VGF35I815
VGF35I825	5/16-18	0.98	200	1.38	0.51	VGF35I825
VGF35I915	3/8-16	0.59	200	1.38	0.51	VGF35I915
VGF35I925	3/8-16	0.98	200	1.38	0.51	VGF35I925
VGF42I625	1/4-20	0.59	200	1.65	0.51	VGF42I625
VGF42I630	1/4-20	1.18	200	1.65	0.51	VGF42I630
VGF42I825	5/16-18	0.98	200	1.65	0.51	VGF42I825
VGF42I830	5/16-18	1.38	200	1.65	0.51	VGF42I830
VGF42I925	3/8-16	0.98	250	1.65	0.51	VGF42I925

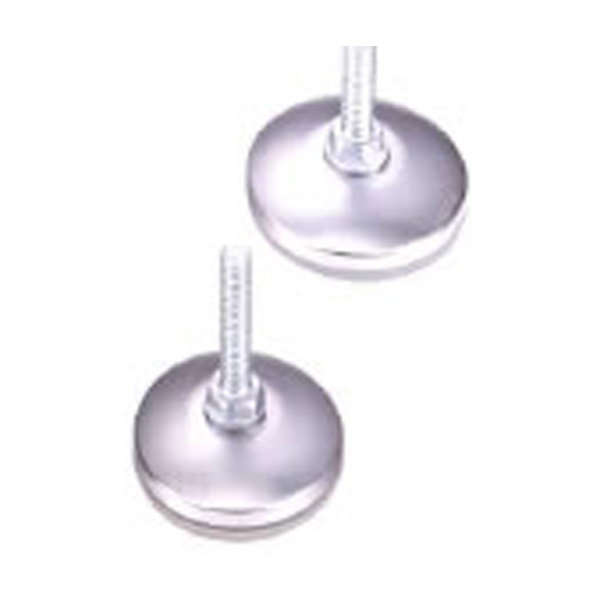

VGH Industrial Glides

Part No.	Thread	Thread Length	Max Loads (Lbs.)	Pad Dia.	Pad Ht.	CAD
Part No.	Thread	Thread Length	Max Loads (Lbs.)	Pad Dia.	Pad Ht.	CAD
VGH50I815	5/8-18	0.59	250	1.97	0.45	VGH50I815
VGH50I835	5/8-18	1.38	250	1.97	0.45	VGH50I835
VGH50I925	3/8-16	0.98	250	1.97	0.45	VGH50I925
VGH50I950	3/8-16	1.97	250	1.97	0.45	VGH50I950

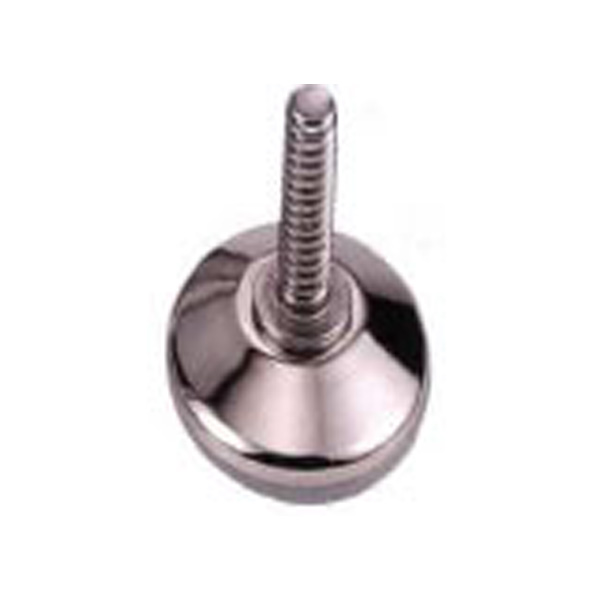

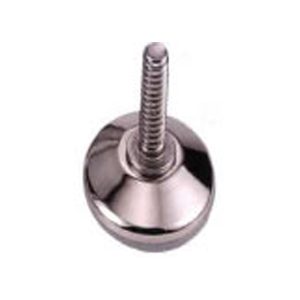

VGK Industrial Glides

Part No.	Thread	Thread Length	Max Loads (Lbs.)	Pad Dia.	Pad Ht.	CAD
Part No.	Thread	Thread Length	Max Loads (Lbs.)	Pad Dia.	Pad Ht.	CAD
VGK29I620	1/4-20	0.79	150	1.14	0.32	VGK29I620
VGK29I625	1/4-20	1.00	150	1.14	0.32	VGK29I625
VGK29I825	5/16-18	1.00	150	1.14	0.32	VGK29I825
VGK35AI825	5/16-18	1.00	150	1.38	0.43	VGK35AI825

VGA Industrial Glides

Part No.	Thread	Thread Length	Max Load (Lbs.)	Pad Dia.	Pad Ht.	CAD
Part No.	Thread	Thread Length	Max Load (Lbs.)	Pad Dia.	Pad Ht.	CAD
VGA24M625	M6 x 1.0	25	75	24.0	8.0	VGA24M625
VGA24M822	M8 x 1.25	22	75	24.0	8.0	VGA24M822
VGA38M615	M6 x 1.0	15	100	36.6	8.5	VGA38M615
VGA38M818	M8 x 1.25	18	100	36.6	8.5	VGA38M818
VGA38M830	M8 x 1.25	30	100	36.6	8.5	VGA38M830

VGB Industrial Glides

Part No.	Thread	Thread Length	Max Loads (Lbs.)	Pad Dia.	Pad Ht.	CAD

VGB51AM867	M8 x 1.25	67	200	51	11	VGB51AM867
VGB51AM867-1	M8 x 1.25	67	200	51	11	VGB51AM867-1

VGC Industrial Glides

Part No.	Thread	Thread Length	Max Load (Lbs.)	Pad Dia.	Pad Ht.	Part No.
Part No.	Thread	Thread Length	Max Load (Lbs.)	Pad Dia.	Pad Ht.	Part No.
VGC28M618	M6 x 1.0	18	80	28	14.5	VGC28M618
VGC28M818	M8 x 1.25	18	80	28	14.5	VGC28M818
VGC28M828	M8 x 1.25	28	80	28	14.5	VGC28M828
VGC50AM840	M8 x 1.25	40	200	50	21.0	VGC50AM840
VGC50AM1030	M10 x 1.5	30	200	50	21.0	VGC50AM1030

VGD Industrial Glides

Part No.	Thread	Thread Length	Max Load (Lbs.)	Pad Dia.	Pad Ht.	CAD
Part No.	Thread	Thread Length	Max Load (Lbs.)	Pad Dia.	Pad Ht.	CAD
VGD32M615	M6 x 1.0	15	100	31.3	14.2	VGD32M615
VGD32M630	M6 x 1.0	30	100	31.3	14.2	VGD32M630
VGD32M815	M8 x 1.25	15	100	31.3	14.2	VGD32M815
VGD32MM830	M8 x 1.25	30	100	31.3	14.2	VGD32MM830

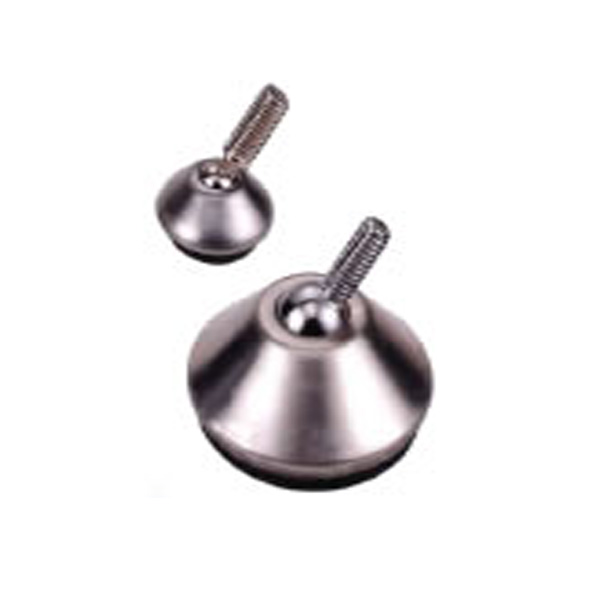

VGE Industrial Glides

Part No.	Thread	Thread Length	Max Load (Lbs.)	Pad Dia.	Pad Ht.	CAD

VGE29AM615	M6 x 1.0	15	100	29	14	VGE29AM615
VGE29AM815	M8 x 1.25	15	100	29	14	VGE29AM815

VGF Industrial Glides

Part No.	Thread	Thread Length	Max Load (Lbs.)	Pad Dia.	Pad Ht.	CAD
Part No.	Thread	Thread Length	Max Load (Lbs.)	Pad Dia.	Pad Ht.	CAD
VGF35M615	M6 x 1.0	15	200	35	13	VGF35M615
VGF35M630	M6 x 1.0	30	200	35	13	VGF35M630
VGF35M820	M8 x 1.25	20	200	35	13	VGF35M820
VGF35M830	M6 x 1.25	30	200	35	13	VGF35M830
VGF35M1020	M10 x 1.5	20	200	35	13	VGF35M1020
VGF42M815	M8 x 1.25	15	200	42	13	VGF42M815
VGF42M840	M8 x 1.25	40	200	42	13	VGF42M840

VGH Industrial Glides

Part No.	Thread	Thread Length	Max Load (Lbs.)	Pad Dia.	Pad Ht. (mm)	CAD
Part No.	Thread	Thread Length	Max Load (Lbs.)	Pad Dia.	Pad Ht. (mm)	CAD
VGH50M815	M8 x 1.25	15	250	50	11.5	VGH50M815
VGH50M840	M8 x 1.25	40	250	50	11.5	VGH50M840
VGH50M1030	M10 x 1.5	30	250	50	11.5	VGH50M1030
VGH50M1080	M10 x 1.5	80	250	50	11.5	VGH50M1080

VGK Industrial Glides

Part No.	Thread	Thread Length	Max Load (Lbs.)	Pad Dia.	Pad Ht.	CAD
Part No.	Thread	Thread Length	Max Load (Lbs.)	Pad Dia.	Pad Ht.	CAD
VGK29M625	M6 x 1.0	25	150	29	8	VGK29M625
VGK29M819	M8 x 1.25	19	150	29	8	VGK29M819
VGK35AM625	M6 x 1.0	25	150	35	11	VGK35AM625
VGK35AM825	M8 x 1.25	25	150	35	11	VGK35AM825

Download the PDF
