Leveling Devices

High Value Series Socket Style with Elastomer Pad

Steel with Nickel Finish

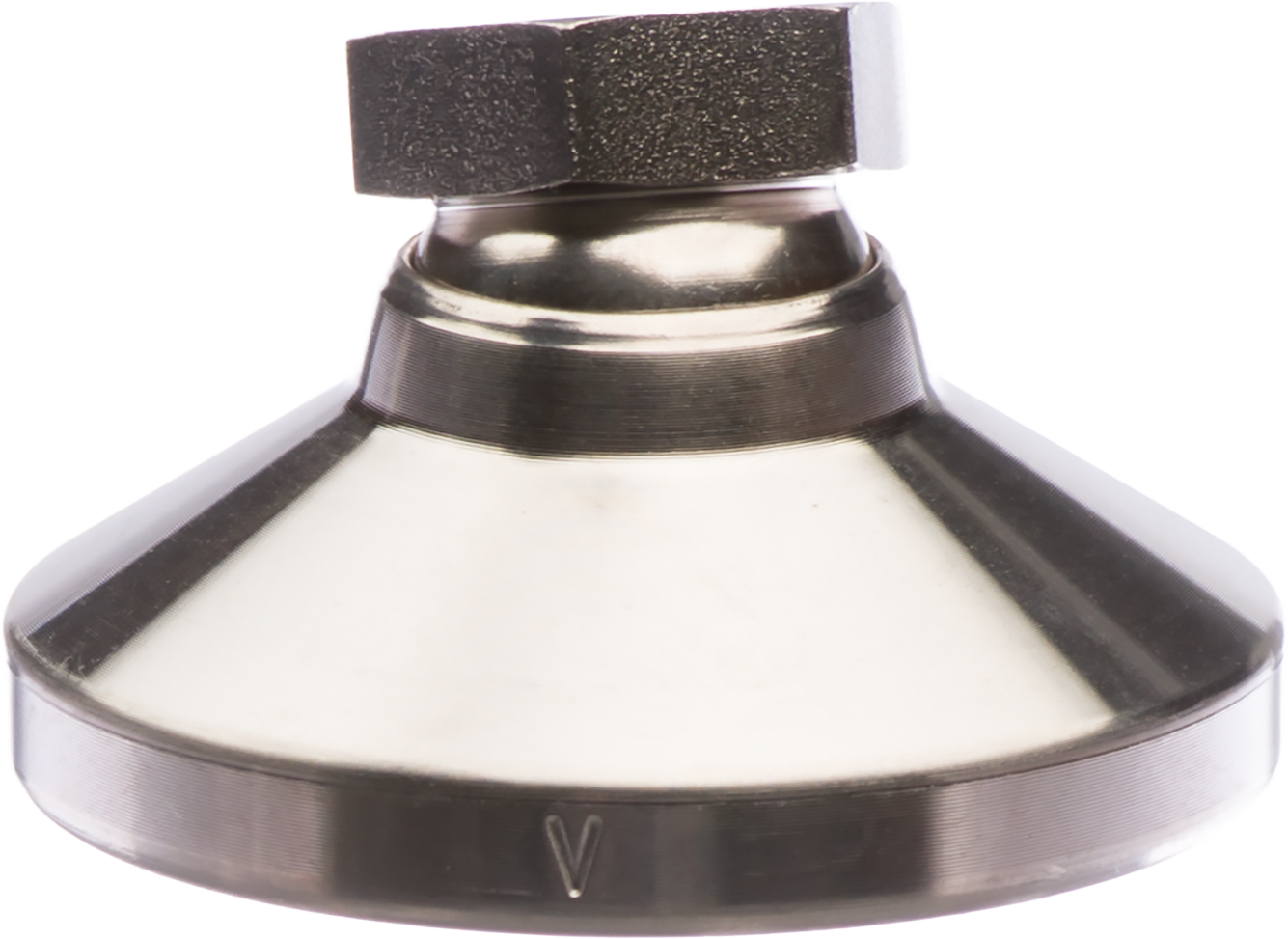

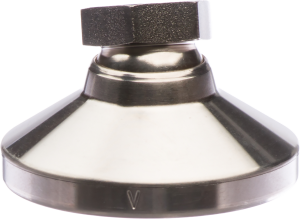

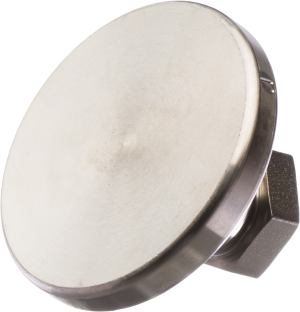

Vlier’s high value series socket style leveling devices are of premium quality construction, with optimum plating, finishing and cosmetics. These levelers in steel with a nickel finish feature a .125 inch neoprene elastomer pad bonded to the bottom of the base for non-skid support and stable, secure leveling.

Typical Uses

Data storage equipment
Large medical equipment
Material handling equipment
Industrial workstations
Industrial machines

Special Features

Hardened ball
Integrally machined hex
Non-skid elastomer pad protects floor/surface finish
Large diameter base support
15° swivel off centerline

ANSI (Inch/American) Tables

High Value Series Socket Style w/Elastomer Pad - Steel w/Nickel Finish

Part No.	Max Load (Lbs.)	A	B	C*	D	E	F	ROHS	CAD
Part No.	Max Load (Lbs.)	A	B	C*	D	E	F	ROHS	CAD
HVEP298B3	525	10-32	3/8	17/32	3/4	7/64	15/64		HVEP298B3
HVEP300B3	800	1/4-20	1/2	45/64	1	5/32	5/16		HVEP300B3
HVEP304B3	2,800	3/8-16	5/8	7/8	1-1/4	3/16	3/8		HVEP304B3
HVEP306B3	3,750	1/2-13	3/4	1-1/8	1-7/8	1/4	7/16		HVEP306B3
HVEP308B3	4,500	5/8-11	7/8	1-1/4	2-1/2	5/16	7/16		HVEP308B3
HVPE310B3	5,400	3/4-10	1-1/16	1-1/2	3	1/2	5/8		HVPE310B3
HVEP312B3	16,000	1-8	1-3/8	1-7/8	4	13/32	3/16		HVEP312B3

Product not available in metric.
