Leveling Devices

Original Series Stud Style with Delrin® Base

Steel

Vlier’s original series stud style leveling devices in steel feature a plastic Delrin® base that protects floors and surface finishes, and resists repeated impacts, moisture and temperatures up to 190°.

Typical Uses

  • Data storage equipment
  • Large medical equipment
  • Material handling equipment
  • Industrial workstations
  • Industrial machines

Special Features

  • Hardened ball
  • Stud with integrally machined hex
  • Long-life, high-impact Delrin® pad protects surface finish
  • Large diameter base support
  • 15° swivel off centerline
Download the PDF

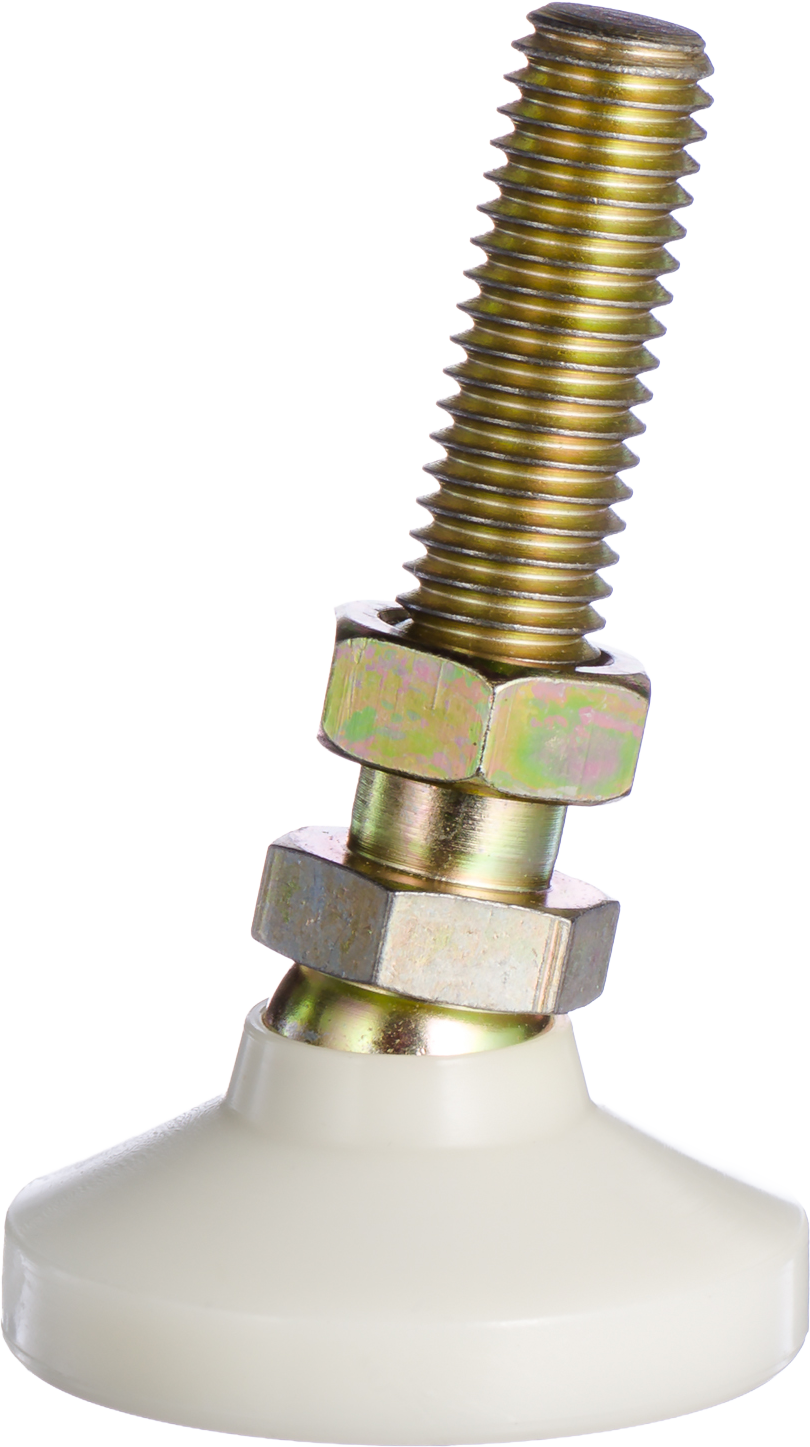

NP306S-1
NP306S-1
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Original Series Stud Style w/Delrin® Base - Steel

Part No.Max Load (Lbs.)ABCDEFROHSCAD
NP298S15010-323/817/323/47/641NP298S
NP300S2001/4-201/245/6415/321-1/4NP300S
NP304S3003/8-165/87/81-1/43/162NP304S
NP306S7001/2-133/41-1/81-7/81/42NP306S
NP308S1,2005/8-117/81-1/42-1/25/162NP308S
NP310S1,8003/4-101-1/161-1/231/22NP310S
NP312S2,4001-81-3/81-7/8413/324-1/4NP312S

Original Series Stud Style w/Delrin® Base - Steel

Part No.Max Load (kg.)ABCDEFROHSCAD
NPM10S136M10 x 1.5172232551NPM10S
NPM12S318M12 x 1.75192948651NPM12S
NPM16S546M16 x 2.0243264851NPM16S
NPM20S818M20 x 2.53038761351NPM20S
Download the PDF
