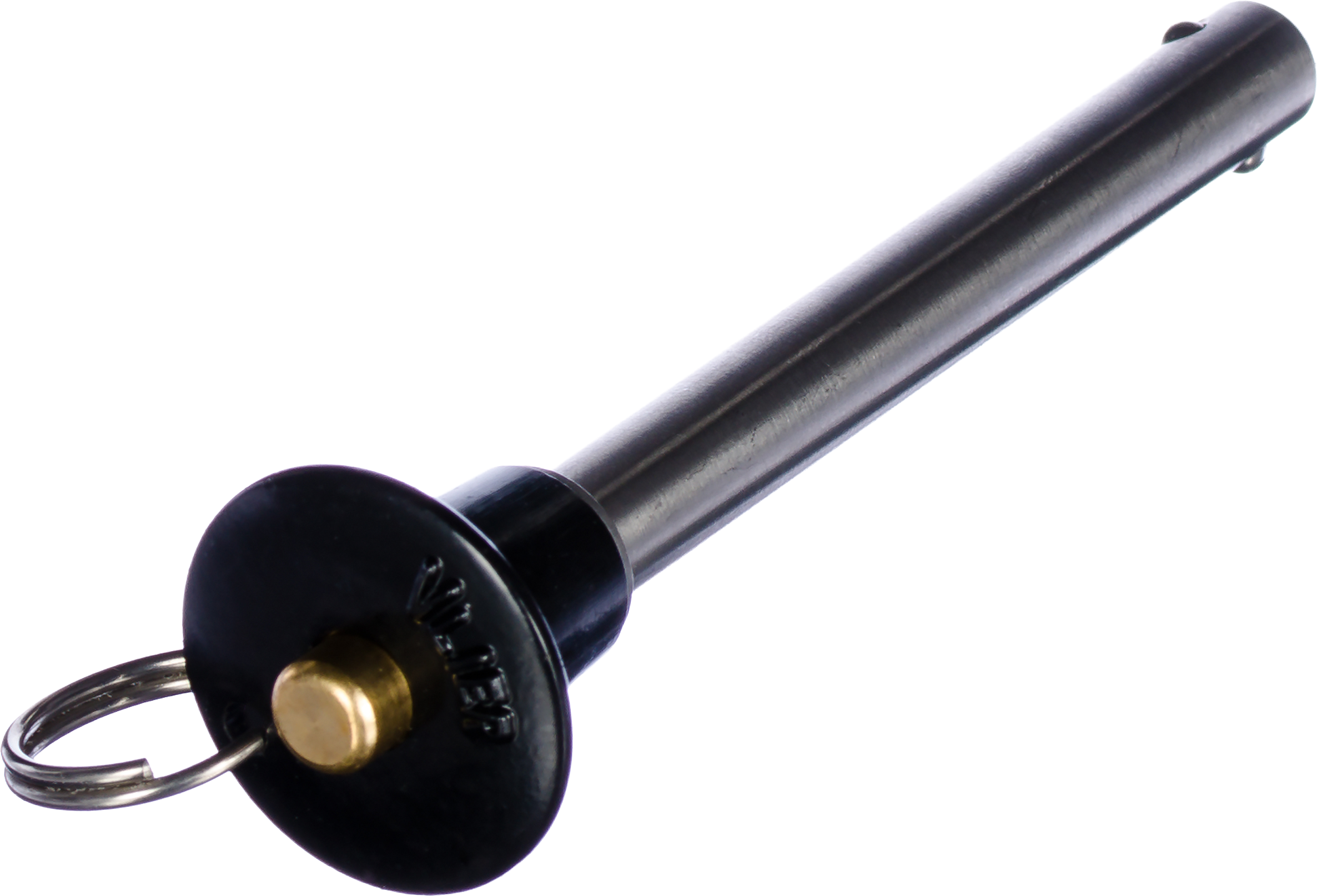

Button Handle Ball Lock Pins

These commercial-grade pins are readily available and are offered in the most popular sizes at an economical cost. These designs are perfect for manufacturing, medical, vehicle, marine and many other applications.

Typical Uses

  • Material handling equipment
  • Trailers and rigging equipment
  • Food & medical applications
  • Scaffolding and stage equipment

Special Features

  • Button Handle design
  • Handles are black aluminum with brass push button
  • Shank body is 300 stainless steel
  • Low cost and available
Download the PDF

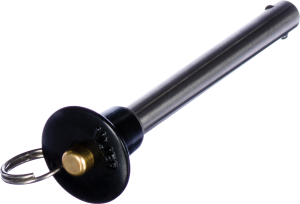

SVLP37CB30--3

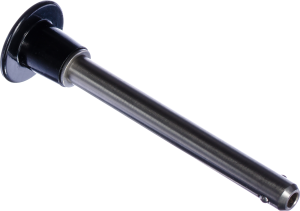

SVLP37CB30--3

Button Handle Ball Lock Pins - Performance Specifications

Shaft Diameter
Inch		Calculated Ultimate Double Shear
Strength
lbf		Pull Out Strength
lbf		Receiving Hole Diameter
Inch
MINMAX
3/162,5001500.1880.190
1/44,5001800.2500.252
5/167,2504000.3120.314
3/810,0004500.3750.377
7/1610,5005000.4380.440
1/219,2509000.5000.502
5/830,0001,5000.6250.627
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Button Handle Ball Lock Pins

Part No.Grip Length
(+.020/-.000)		Nominal Dia.A
(+.0000/-.0015)
B
(+.005/-.005)
C
(+.000/-.030)
H
MAX
MIN
ROHSCAD
SVLP18CB050.500.18
(3/16)		0.18850.2200.2600.8300.8000.720
SVLP18CB0750.750.18
(3/16)		0.18850.2200.2600.8300.8000.720
SVLP18CB101.000.18
(3/16)		0.18850.2200.2600.8300.8000.720
SVLP18CB1251.250.18
(3/16)		0.18850.2200.2600.8300.8000.720
SVLP18CB151.500.18
(3/16)		0.18850.2200.2600.8300.8000.720
SVLP18CB202.000.18
(3/16)		0.18850.2200.2600.8300.8000.720
SVLP18CB252.500.18
(3/16)		0.18850.2200.2600.8300.8000.720
SVLP18CB303.000.18
(3/16)		0.18850.2200.2600.8300.8000.720
SVLP25CB050.500.25
(1/4)		0.24850.2890.2900.8900.8000.720
SVLP25CB0750.750.25
(1/4)		0.24850.2890.2900.8900.8000.720
SVLP25CB101.000.25
(1/4)		0.24850.2890.2900.8900.8000.720
SVLP25CB1251.250.25
(1/4)		0.24850.2890.2900.8900.8000.720
SVLP25CB151.500.25
(1/4)		0.24850.2890.2900.8900.8000.720
SVLP25CB202.000.25
(1/4)		0.24850.2890.2900.8900.8000.720
SVLP25CB252.500.25
(1/4)		0.24850.2890.2900.8900.8000.720
SVLP25CB303.000.25
(1/4)		0.24850.2890.2900.8900.8000.720
SVLP25CB353.500.25
(1/4)		0.24850.2890.2900.8900.8000.720
SVLP25CB404.000.25
(1/4)		0.24850.2890.2900.8900.8000.720
SVLP31CB050.500.31
(5/16)		0.3110.3750.3300.9301.1350.810
SVLP31CB0750.750.31
(5/16)		0.3110.3750.3300.9301.1350.810
SVLP31CB101.000.31
(5/16)		0.3110.3750.3300.9301.1350.810
SVLP31CB1251.250.31
(5/16)		0.3110.3750.3300.9301.1350.810
SVLP31CB151.500.31
(5/16)		0.3110.3750.3300.9301.1350.810
SVLP31CB202.000.31
(5/16)		0.3110.3750.3300.9301.1350.810
SVLP31CB252.500.31
(5/16)		0.3110.3750.3300.9301.1350.810
SVLP31CB303.000.31
(5/16)		0.3110.3750.3300.9301.1350.810
SVLP31CB353.500.31
(5/16)		0.3110.3750.3300.9301.1350.810
SVLP31CB404.000.31
(5/16)		0.3110.3750.3300.9301.1350.810
SVLP37CB050.500.37
(3/8)		0.37350.4400.3651.041.1350.875
SVLP37CB0750.750.37
(3/8)		0.37350.4400.3651.041.1350.875
SVLP37CB101.000.37
(3/8)		0.37350.4400.3651.041.1350.875
SVLP37CB1251.250.37
(3/8)		0.37350.4400.3651.041.1350.875
SVLP37CB151.500.37
(3/8)		0.37350.4400.3651.041.1350.875
SVLP37CB1751.750.37
(3/8)		0.37350.4400.3651.041.1350.875
SVLP37CB202.000.37
(3/8)		0.37350.4400.3651.041.1350.875
SVLP37CB252.500.37
(3/8)		0.37350.4400.3651.041.1350.875
SVLP37CB303.000.37
(3/8)		0.37350.4400.3651.041.1350.875
SVLP37CB353.500.37
(3/8)		0.37350.4400.3651.041.1350.875
SVLP37CB404.000.37
(3/8)		0.37350.4400.3651.041.1350.875
SVLP43CB101.000.43
(7/16)		0.4360.5090.3801.161.4001.300
SVLP43CB151.500.43
(7/16)		0.4360.5090.3801.161.4001.300
SVLP43CB202.000.43
(7/16)		0.4360.5090.3801.161.4001.300
SVLP43CB252.500.43
(7/16)		0.4360.5090.3801.161.4001.300
SVLP43CB303.000.43
(7/16)		0.4360.5090.3801.161.4001.300
SVLP43CB353.500.43
(7/16)		0.4360.5090.3801.161.4001.300
SVLP43CB404.000.43
(7/16)		0.4360.5090.3801.161.4001.300
SVLP50CB050.500.50
(1/2)		0.49850.5940.4601.1901.4001.300
SVLP50CB101.000.50
(1/2)		0.49850.5940.4601.1901.4001.300
SVLP50CB1251.250.50
(1/2)		0.49850.5940.4601.1901.4001.300
SVLP50CB151.500.50
(1/2)		0.49850.5940.4601.1901.4001.300
SVLP50CB1751.750.50
(1/2)		0.49850.5940.4601.1901.4001.300
SVLP50CB202.000.50
(1/2)		0.49850.5940.4601.1901.4001.300
SVLP50CB252.500.50
(1/2)		0.49850.5940.4601.1901.4001.300
SVLP50CB303.000.50
(1/2)		0.49850.5940.4601.1901.4001.300
SVLP50CB353.500.50
(1/2)		0.49850.5940.4601.1901.4001.300
SVLP50CB404.000.50
(1/2)		0.49850.5940.4601.1901.4001.300
SVLP50CB454.500.50
(1/2)		0.49850.5940.4601.1901.4001.300
SVLP50CB505.000.50
(1/2)		0.49850.5940.4601.1901.4001.300
SVLP50CB555.500.50
(1/2)		0.49850.5940.4601.1901.4001.300
SVLP50CB606.000.50
(1/2)		0.49850.5940.4601.1901.4001.300
SVLP62CB050.500.62
(5/8)		0.62350.7500.5801.5001.7001.530
SVLP62CB101.000.62
(5/8)		0.62350.7500.5801.5001.7001.530
SVLP62CB151.500.62
(5/8)		0.62350.7500.5801.5001.7001.530
SVLP62CB202.000.62
(5/8)		0.62350.7500.5801.5001.7001.530
SVLP62CB252.500.62
(5/8)		0.62350.7500.5801.5001.7001.530
SVLP62CB303.000.62
(5/8)		0.62350.7500.5801.5001.7001.530
SVLP62CB253.500.62
(5/8)		0.62350.7500.5801.5001.7001.530
SVLP62CB404.000.62
(5/8)		0.62350.7500.5801.5001.7001.530
SVLP62CB454.500.62
(5/8)		0.62350.7500.5801.5001.7001.530
SVLP62CB505.000.62
(5/8)		0.62350.7500.5801.5001.7001.530
SVLP62CB555.500.62
(5/8)		0.62350.7500.5801.5001.7001.530
SVLP62CB606.000.62
(5/8)		0.62350.7500.5801.5001.7001.530

Product not available in metric.
