Push-Fit Plungers

Push-fit plungers are ideal where a threaded spring plunger is impractical or when threaded adjustments are not required. The Delrin® Nose resists detent force and marring. These push-fit plungers are designed for fast and easy installation into wood, soft plastic or aluminum. The stainless steel offers the added benefit of maximum protection against rust and corrosion.

Typical Uses

  • Securing
  • Indexing
  • Locating
  • Positioning
  • Electrical insulator
  • Electrical contact

Special Features

  • Easy installation
  • No thread adjustment
  • Delrin® Nose resists marring
  • Stainless steel resists corrosion
  • Stainless steel withstands high temperatures
Download the PDF
push-fit-plungers
push-fit-plungers
ANSI (Inch/American) Tables
Metric Tables
CAD Library

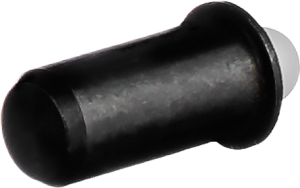

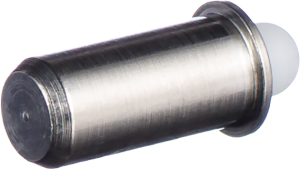

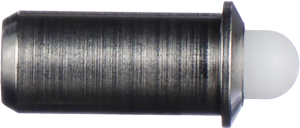

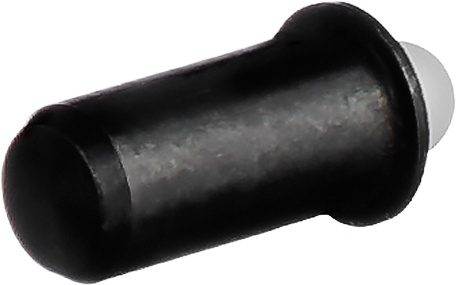

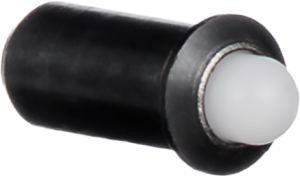

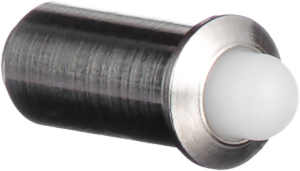

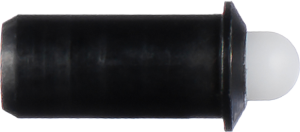

Push-Fit Plungers - w/Delrin® Plunger

Part No.End Force, (Lbs.)A
+.002/-.000		BCDEFROHSCAD
Steel		CAD
Stainless
Steel
SteelStainless
Steel		InitialFinal
DPFP48DSPFP481.02.00.1250.2520.0620.0700.1900.035DPFP48DSPFP48
DPFP52DSPFP521.54.50.1880.4410.0940.1210.2500.044DPFP52DSPFP52
DPFP54DSPFP542.56.00.2500.5210.1250.1680.3120.055DPFP54DSPFP54
DPFP56DSPFP564.010.00.3120.6400.1510.1860.3750.045DPFP56DSPFP56
DPFP58DSPFP585.014.00.3750.7860.1870.2340.500.096DPFP58DSPFP58
DPFP60DSPFP608.018.00.51.100.2500.3320.6880.134DPFP60DSPFP60

Push-Fit Plungers - Heavy End Force w/Steel Plunger

Part No.End Force, (Lbs.)A
+.002/-.000		BCDEFROHSCAD
Steel		CAD
Stainless
Steel
SteelStainless
Steel		InitialFinal
PFP48SPFP481.02.00.1250.2520.0620.0700.1900.035PFP48SPFP48
PFP52SPFP521.54.50.1880.4410.0940.1210.2500.044PFP52SPFP52
PFP54SPFP542.56.00.2500.5210.1250.1680.3120.055PFP54SPFP54
PFP56SPFP564.010.00.3120.6400.1510.1860.3750.045PFP56SPFP56
PFP58SPFP585.014.00.3750.7860.1870.2340.5000.096PFP58SPFP58
PFP60SPFP608.018.00.5001.1000.2500.3320.6880.134PFP60SPFP60

Push-Fit Plungers - Light End Force w/Delrin® Plunger

Part No.End Force, (Lbs.)A
+.002/-.000		BCDEFROHSCAD
Steel		CAD
Stainless
Steel
SteelStainless
Steel		InitialFinal
DPFP51DSPFP510.752.00.1880.4410.0940.1210.2500.044DPFP51DSPFP51
DPFP53DSPFP531.253.00.2500.5210.1250.1680.3120.055DPFP53DSPFP53
DPFP57DSPFP572.507.00.3750.7860.1870.2340.500.096DPFP57DSPFP57
DPFP59DSPFP594.009.00.501.1000.2500.3320.6880.134DPFP59DSPFP59

Push-Fit Plungers - Light End Force w/Steel Plunger

Part No.End Force, (Lbs.)A
+.002/-.000		BCDEFROHSCAD
Steel		CAD
Stainless
Steel
SteelStainless
Steel		InitialFinal
PFP51SPFP510.7502.00.1880.4410.0940.1210.2500.044PFP51SPFP51
PFP53SPFP531.253.00.2500.5210.1250.1680.3120.055PFP53SPFP53
PFP57SPFP572.507.00.3750.7860.1870.2340.5000.096PFP57SPFP57
PFP59SPFP594.009.00.501.1000.2500.3320.6880.134PFP59SPFP59

Push-Fit Plungers - Stainless Steel w/Steel Plunger

Part No.End Force, NA
+.05/-.00		BCDEFSuggested installation
Min Hole (mm)		ROHSCAD
Stainless
Steel
Stainless
Steel		InitialFinal
SPFPM44.48.94.06.41.61.784.750.814.1SPFPM4
SPFPM611.126.76.013.23.24.287.91.46.1SPFPM6
SPFPM817.844.58.016.33.84.79.51.18.1SPFPM8
SPFPM1022.262.310.020.04.755.912.72.410.1SPFPM10
SPFPM1235.680.112.027.96.358.417.53.412.1SPFPM12

Push-Fit Plungers - Stainless Steel w/Delrin ® Plunger

Part No.End Force, NA
+.05/-.00		BCDEFSuggested installation
Min Hole (mm)		ROHSCAD
Stainless
Steel
Stainless
Steel		InitialFinal
DSPFPM44.48.94.06.41.61.784.750.814.1DSPFPM4
DSPFPM611.126.76.013.23.24.287.91.46.1DSPFPM6
DSPFPM817.844.58.016.33.84.79.51.18.1DSPFPM8
DSPFPM1022.262.310.020.04.755.912.72.410.1DSPFPM10
DSPFPM1235.680.112.027.96.358.417.53.412.1DSPFPM12
