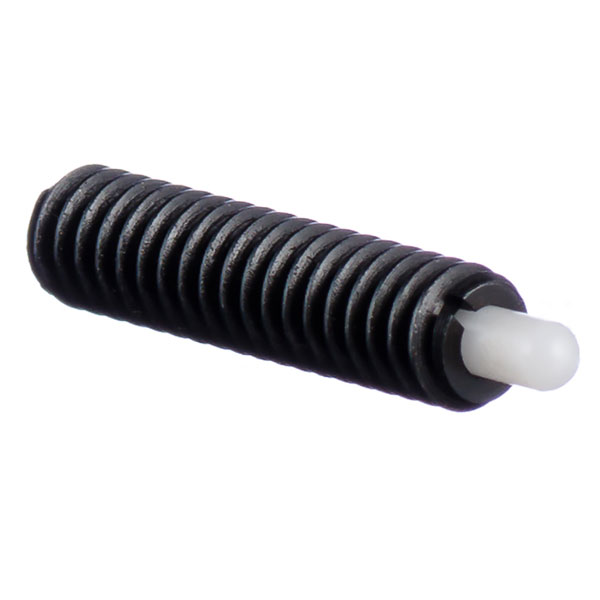

Delrin® Nose Standard Spring Plungers

Steel

Delrin® Nose standard spring plungers are ideal for use with aluminum, brass or any soft, easily marred material.

Typical Uses

  • Positioning
  • Indexing
  • Ejecting
  • With Thread Lock
  • Latching
  • Detents
  • Contacts
  • Lifters
  • Insulators

Special Features

  • Insulating Delrin® Nose
  • Reinforced for minimum deformation under force
  • High dielectric strength
  • Wear resistance
  • Self-lubricating surface
Download the PDF
Delrin® Nose standard spring plungers
Delrin® Nose standard spring plungers
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Standard Spring Plungers - Steel w/Delrin® Nose

Part No.End Force, (Lbs.)ABCDROHSCAD
CAD
With Thread Lock
With Thread LockInitialMid.Final
NNS50NNS50P2.75.07.38-320.630.0940.070NNS50NNS50P
NNS52NNS52P2.97.011.110-320.750.1250.920NNS52NNS52P
NNS54NNS54N3.08.013.01/4-201.000.1880.118NNS54NNS54N
NNS54ANNS54AN3.08.013.01/4-281.000.1880.118NNS54ANNS54AN
NNS56NNS56N3.09.015.05/16-181.000.1880.135NNS56NNS56N
NNS58NNS58N5.510.014.53/8-161.130.1880.187NNS58NNS58N
NNS60NNS60N6.612.017.41/2-131.250.2500.248NNS60NNS60N
NNS62NNS62N10.518.025.55/8-111.500.3130.310NNS62NNS62N

Light End Force Standard Spring Plungers - Steel w/Delrin® Nose

Part No.End Force, (Lbs.)ABCDROHSCAD
CAD
With Thread Lock
With Thread LockInitialMid.Final
NNS51NNS51P0.71.52.38-320.630.0940.070NNS51NNS51P
NNS53NNS53P1.32.02.710-320.750.1250.092NNS53NNS53P
NNS55NNS55N1.02.54.01/4-201.000.1880.118NNS55NNS55N
NNS55ANNS55AN1.02.54.01/4-281.000.1880.118NNS55ANNS55AN
NNS57NNS57N1.53.04.55/16-181.000.1880.135NNS57NNS57N
NNS59NNS59N2.85.07.23/8-161.130.1880.187NNS59NNS59N
NNS61NNS61N2.76.09.31/2-131.250.2500.248NNS61NNS61N
NNS63NNS63N3.57.010.55/8-111.500.3130.310NNS63NNS63N



Standard Spring Plungers - Steel w/Delrin® Nose

Part No.End Force, NABCDROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
NNSM4ANNSM4AP12.022.7M4 x 0.716.01.51.8NNSM4ANNSM4AP
NNSM5ANNSM5AP13.039.6M5 x 0.819.02.32.3NNSM5ANNSM5AP
NNSM6ANNSM6AP18.050.0M6 x 1.020.02.52.7NNSM6ANNSM6AP
NNSM8ANNSM8AN25.070.0M8x 1.2522.03.03.5NNSM8ANNSM8AN
NNSM10ANNSM10AN25.070.0M10 x 1.522.03.04.0NNSM10ANNSM10AN
NNSM12ANNSM12AN45.0110.0M12 x 1.7528.04.06.0NNSM12ANNSM12AN
NNSM16ANNSM16AN46.775.2M16 x 2.038.15.07.8NNSM16ANNSM16AN

Light End Force Standard Spring Plungers - Steel w/Delrin® Nose

Part No.End Force, NABCDROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
NNSML4ANNSML4AP3.07.6M4 x 716.01.51.8NNSML4ANNSML4AP
NNSML5ANNSML5AP5.810.4M5 x .0819.02.32.3NNSML5ANNSML5AP
NNSML6ANNSML6AP7.020.0M6 x 1.020.02.52.7NNSML6ANNSML6AP
NNSML8ANNSM8LAN9.035.0M8x 1.2522.03.03.5NNSML8ANNSM8LAN
NNSML10ANNSML10AN9.035.0M10 x 1.522.03.04.0NNSML10ANNSML10AN
NNSML12ANNSML12AN10.055.0M12 x 1.7528.04.06.0NNSML12ANNSML12AN
NNSML16ANNSML16AN15.635.2M16 x 2.038.15.07.8NNSML16ANNSML16AN
