Leveling Devices

High Value Series Stud Style

Steel with Nickel Finish

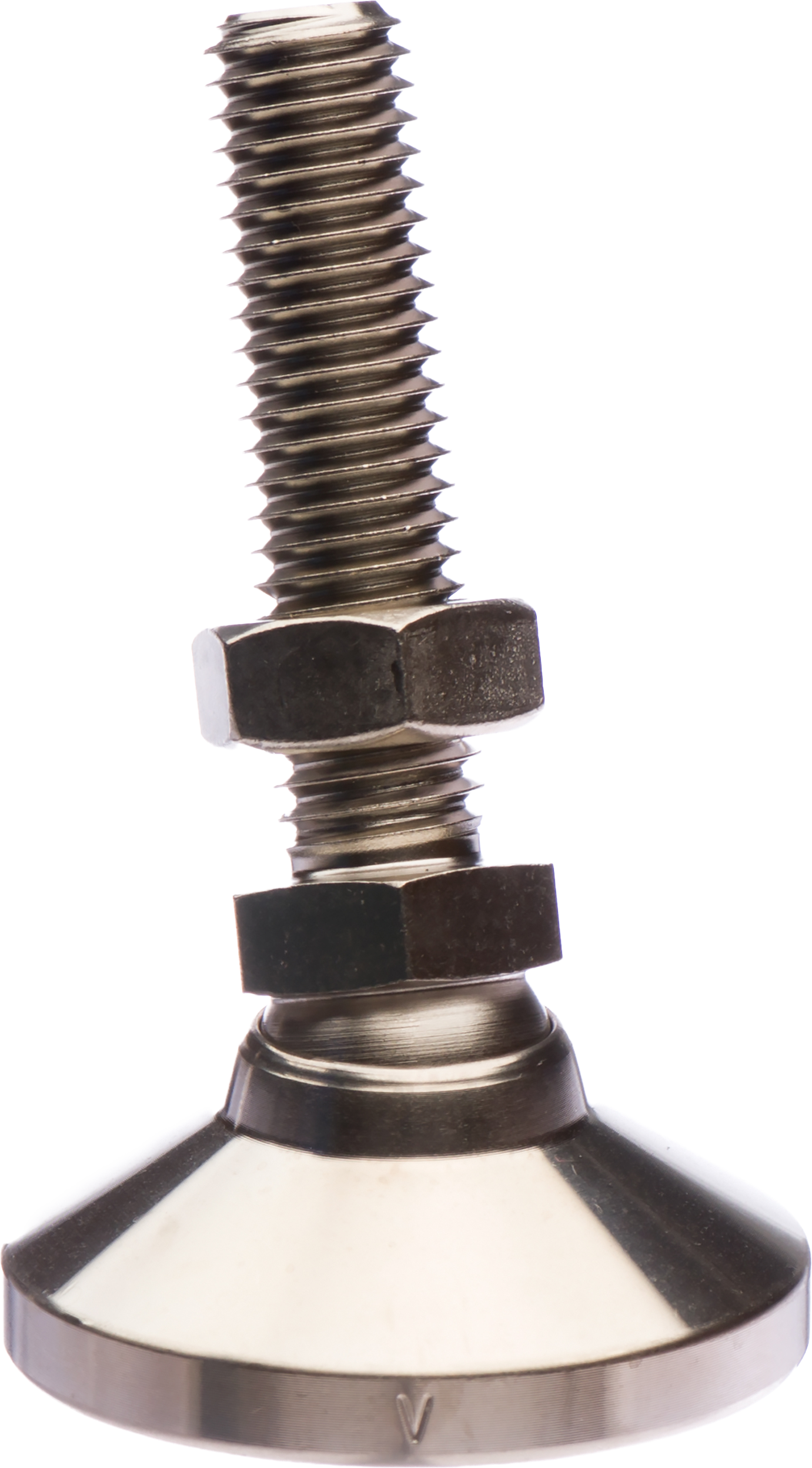

Vlier’s high value series stud style leveling devices are of premium quality construction, with optimum plating, finishing and cosmetics. These steel levelers have a nickel finish and provide an integrally machined stud as part of the ball. The stud style bases swivel 15° off the centerline to adjust to uneven surfaces and level machine tools, electronic racks, benches, data storage, power generation, machine centers and others.

Typical Uses

Data storage equipment
Large medical equipment
Material handling equipment
Industrial workstations
Industrial machines

Special Features

Hardened ball
Stud with integrally machined hex
Large diameter base support
15° swivel off centerline

ANSI (Inch/American) Tables

High Value Series Stud Style - Steel w/Nickel Finish

Part No.	Max Load (Lbs.)	A	B	C	D	E	F	ROHS	CAD
Part No.	Max Load (Lbs.)	A	B	C	D	E	F	ROHS	CAD
HVP298S3	700	10-32	3/8	17/32	3/4	7/64	1		HVP298S3
HVP300S3	1,100	1/4-20	1/2	45/64	1	5/32	1-1/4		HVP300S3
HVP304S3	3,750	3/8-16	5/8	7/8	1-1/4	3/16	2		HVP304S3
HVP306S3	5,000	1/2-13	3/4	1-1/8	1-7/8	1/4	2		HVP306S3
HVP308S3	6,000	5/8-11	7/8	1-1/4	2-1/2	5/16	2		HVP308S3
HVP310S3	7,200	3/4-10	1-1/16	1-1/2	3	1/2	2		HVP310S3
HVP312S3	22,000	1-8	1-3/8	1-7/8	4	13/32	4-1/4		HVP312S3

Product not available in metric
