Leveling Devices

High Value Series Socket Style

Steel with Gold Chromate

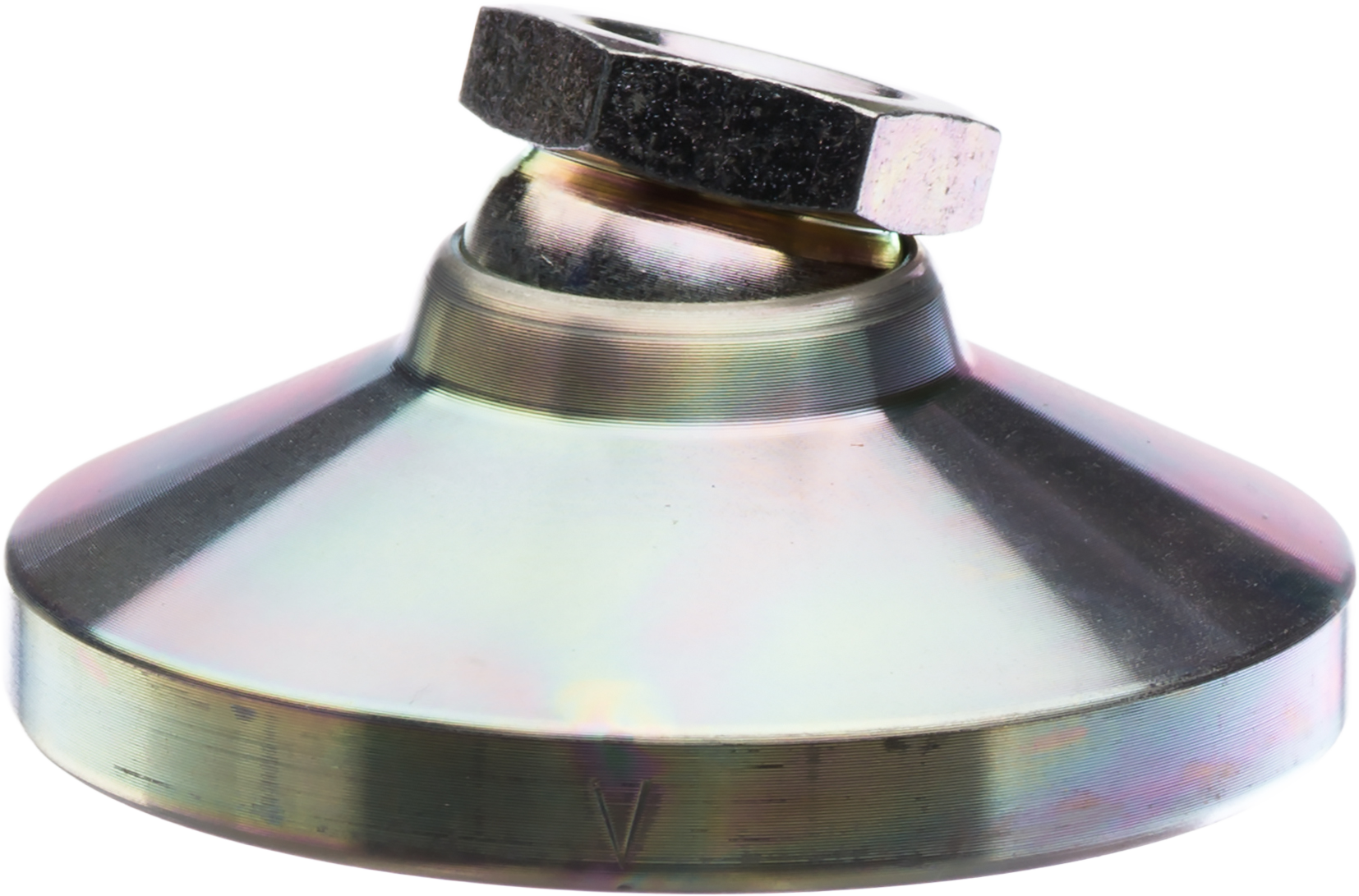

Vlier’s high value series socket style leveling devices are of premium quality construction, with optimum plating, finishing and cosmetics. These levelers in steel with gold chromate finish have a large diameter base support for superior leveling.

Typical Uses

Data storage equipment
Large medical equipment
Material handling equipment
Industrial workstations
Industrial machines

Special Features

Hardened ball
Integrally machined hex
Large diameter base support
15° swivel off centerline

ANSI (Inch/American) Tables

High Value Series Socket Style - Steel w/Gold Chromate Finish

Part No.	Max Load (Lbs.)	A	B	C	D	E	F	ROHS	CAD
Part No.	Max Load (Lbs.)	A	B	C	D	E	F	ROHS	CAD
HVP298B	700	10-32	3/8	17/32	3/4	7/64	15/64		HVP298B
HVP300B	1,100	1/4-20	1/2	45/64	1	5/32	5/16		HVP300B
HVP304B	3,750	3/8-16	5/8	7/8	1-1/4	3/16	3/8		HVP304B
HVP306B	5,000	1/2-13	3/4	1-1/8	1-7/8	1/4	7/16		HVP306B
HVP308B	6,000	5/8-11	7/8	1-1/4	2-1/2	5/16	7/16		HVP308B
HVP310B	7,200	3/4-10	1-1/16	1-1/2	3	1/2	5/8		HVP310B
HVP312B	22,000	1-8	1-3/8	1-7/8	4	13/32	13/16		HVP312B

High Value Series Socket Style - Steel w/Gold Chromate Finish

Part No.	Max Load	A	B	C	D	E	F	ROHS	CAD
Part No.	Max Load	A	B	C	D	E	F	ROHS	CAD
HVPM6B	318	M6 x 1-6h	10	13.5	19.1	2.8	5.8		HVPM6B
HVPM8B	500	M8 x 1.25-6h	13	17.8	25.4	3.8	7.8		HVPM8B
HVPM10B	1,705	M10 x 1.5-6h	17	22.0	32.0	5.0	9.6		HVPM10B
HVPM12B	2,273	M12 x 1.75-6h	19	28.7	47.8	6.4	11.0		HVPM12B
HVPM16B	2,727	M16 x 2-6h	24	31.8	63.5	7.9	11.0		HVPM16B
HVPM20B	3,273	M20 x 2.5-6h	30	38.0	76.0	12.7	15.7		HVPM20B
HVPM24B	9,979	M24 x 3-6h	36	47.8	101.6	10.2	20.5		HVPM24B
