Standard Spring Plungers

Stainless Steel

Our standard spring plungers offer long travel, large bearing surfaces and numerous design and material options including an optional locking element. The stainless steel design withstands high temperatures and affords the added benefit of maximum protection against rust and corrosion.

Typical Uses

Positioning
Indexing
Ejecting
With Thread Lock
Latching
Detents
Contacts
Lifters
Insulators

Special Features

Easy installation
Accurate alignment
Corrosion resistance
Wear resistance
Heavy & light end forces
Self-lubricating materials
Non-marring materials
Non-chipping materials
Special environments
Insulating properties
Withstands high temperatures

Download the PDF

Standard Spring Plungers - Stainless Steel

ANSI (Inch/American) Tables

Metric Tables

CAD Library

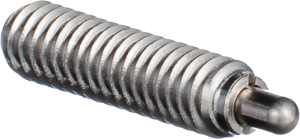

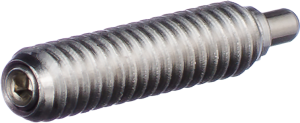

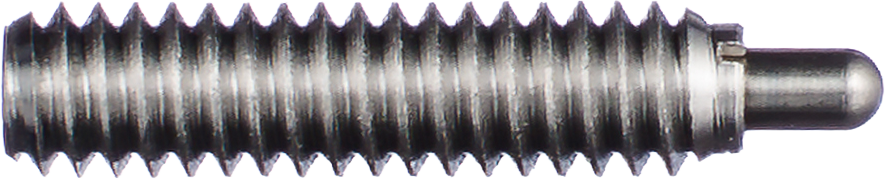

Standard Spring Plungers - Stainless Steel w/Stainless Steel Nose

Part No.		End Force, (Lbs.)			A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Mid.	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
SSS48	SSS48P	1.5	3.0	4.5	6-32	0.53	0.063	0.045		SSS48	SSS48P
SSS48A	SSS48AP	1.0	1.3	1.6	6-32	0.38	0.063	0.045		SSS48A	SSS48AP
SSS50	SSS50P	2.7	5.0	7.3	8-32	0.63	0.094	0.070		SSS50	SSS50P
SSS52	SSS52P	2.9	7.0	11.1	10-32	0.75	0.125	0.092		SSS52	SSS52P
SSS54	SSS54N	3.0	8.0	13.0	1/4-20	1.00	0.188	0.118		SSS54	SSS54N
SSS54A	SSS54AN	3.0	8.0	13.0	1/4-28	1.00	0.188	0.118		SSS54A	SSS54AN
SSS54B	SSS54BN	2.0	5.5	9.0	1/4-20	0.75	0.125	0.118		SSS54B	SSS54BN
SSS56	SSS56N	3.0	9.0	15.0	5/16-18	1.00	0.188	0.135		SSS56	SSS56N
SSS58	SSS58N	5.5	10.0	14.5	3/8-16	1.13	0.188	0.187		SSS58	SSS58N
SSS60	SSS60N	6.6	12.0	17.4	1/2-13	1.25	0.250	0.248		SSS60	SSS60N
SSS62	SSS62N	10.5	18.0	25.5	5/8-11	1.50	0.313	0.310		SSS62	SSS62N
SSS64	SSS64N	6.7	22.0	37.3	3/4-10	1.75	0.313	0.374		SSS64	SSS64N
SSS66	SSS66N	16.0	42.0	68.0	1-8	2.41	0.500	0.498		SSS66	SSS66N

Light End Force Standard Spring Plungers - Stainless Steel w/Stainless Steel Nose

Part No.		End Force, (Lbs.)			A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Mid.	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
SSS49	SSS49P	0.5	1.0	1.5	6-32	0.53	0.063	0.045		SSS49	SSS49P
SSS51	SSS51P	0.7	1.5	2.3	8-32	0.63	0.094	0.070		SSS51	SSS51P
SSS53	SSS53P	1.3	2.0	2.7	10-32	0.75	0.125	0.092		SSS53	SSS53P
SSS55	SSS55N	1.0	2.5	4.0	1/4-20	1.00	0.188	0.118		SSS55	SSS55N
SSS55A	SSS55AN	1.0	2.5	4.0	1/4-28	1.00	0.188	0.118		SSS55A	SSS55AN
SSS57	SSS57N	1.5	3.0	4.5	5/16-18	1.00	0.188	0.135		SSS57	SSS57N
SSS59	SSS59N	2.8	5.0	7.2	3/8-16	1.13	0.188	0.187		SSS59	SSS59N
SSS61	SSS61N	2.7	6.0	9.3	1/2-13	1.25	0.250	0.248		SSS61	SSS61N
SSS63	SSS63N	3.5	7.0	10.5	5/8-11	1.50	0.313	0.310		SSS63	SSS63N
SSS67	SSS67N	4.0	17.5	31.0	1-8	2.41	0.500	0.498		SSS67	SSS67N

Standard Spring Plungers - Stainless Steel w/Stainless Steel Nose

Part No.		End Force, N		A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
SSM4A	SSM4AP	12.0	22.7	M4 x 0.7	16.0	1.5	1.8		SSM4A	SSM4AP
SSM5A	SSM5AP	13.0	39.6	M5 x 0.8	19.0	2.3	2.3		SSM5A	SSM5AP
SSM6A	SSM6AP	18.0	50.0	M6 x 1.0	20.0	2.5	2.7		SSM6A	SSM6AP
SSM8A	SSM8AN	25.0	70.0	M8 x 1.25	22.0	3.0	3.5		SSM8A	SSM8AN
SSM10A	SSM10AN	25.0	70.0	M10 x 1.5	22.0	3.0	4.0		SSM10A	SSM10AN
SSM12A	SSM12AN	45.0	110.0	M12 x 1.75	28.0	4.0	6.0		SSM12A	SSM12AN
SSM16A	SSM16AN	46.7	75.2	M16 x 2.0	38.1	5.0	7.8		SSM16A	SSM16AN

Light End Force Standard Spring Plungers - Stainless Steel w/Stainless Steel Nose

Part No.		End Force, N		A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
SSML4A	SSML4AP	3.0	7.6	M4 x 0.7	16.0	1.5	1.8		SSML4A	SSML4AP
SSML5A	SSML5AP	5.8	10.4	M5 x 0.8	19.0	2.3	2.3		SSML5A	SSML5AP
SSML6A	SSML6AP	7.0	20.0	M6 x 1.0	20.0	2.5	2.7		SSML6A	SSML6AP
SSML8A	SSML8AN	9.0	35.0	M8 x 1.25	22.0	3.0	3.5		SSML8A	SSML8AN
SSML10A	SSML10AN	9.0	35.0	M10 x 1.5	22.0	3.0	3.5		SSML10A	SSML10AN
SSML12A	SSML12AN	10.0	55.0	M12 x 1.75	28.0	4.0	6.0		SSML12A	SSML12AN
SSML16A	SSML16AN	15.6	35.2	M16 x 2.0	38.1	5.0	7.8		SSML16A	SSML16AN
