Leveling Devices

Level Star Series

The leveling devices in the level star series from Vlier feature a non-swivel rotating stud that is ideal for high-volume OEM applications. Designed for light- and medium-duty leveling applications to be used on machinery, workstations, enclosures and many others. Made from zinc-plated, low carbon steel for a attractive appearance. Available with elastomer pad for non-skid applications or nylon pad for glide applications.

Typical Uses

Data storage equipment
Large medical equipment
Material handling equipment
Industrial workstations
Industrial machines

Special Features

Non-swivel stud
Zinc-plated stud and shell
Integral hex nut
Nylon or rubber pad
Protects floors and surfaces

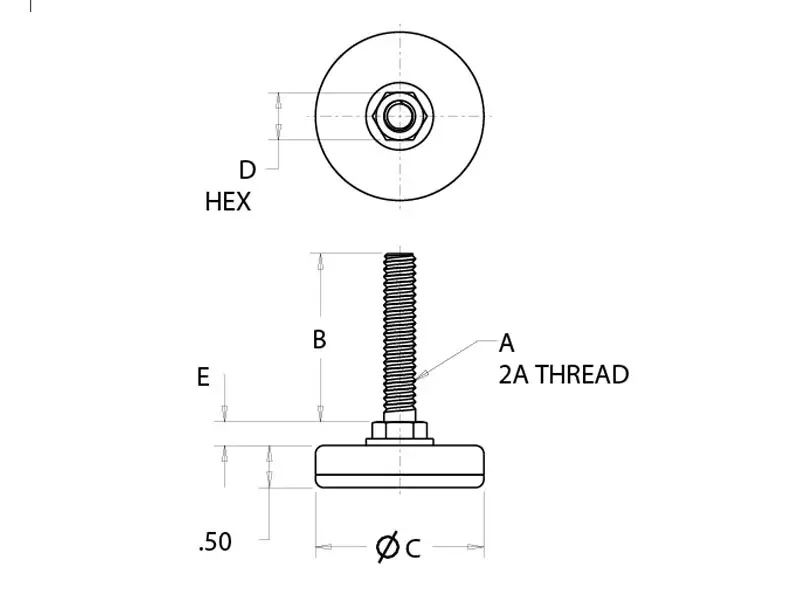

Level star series nylon pad

ANSI (Inch/American) Tables

Metric Tables

CAD Library

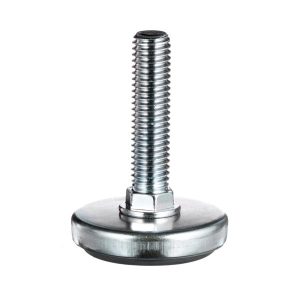

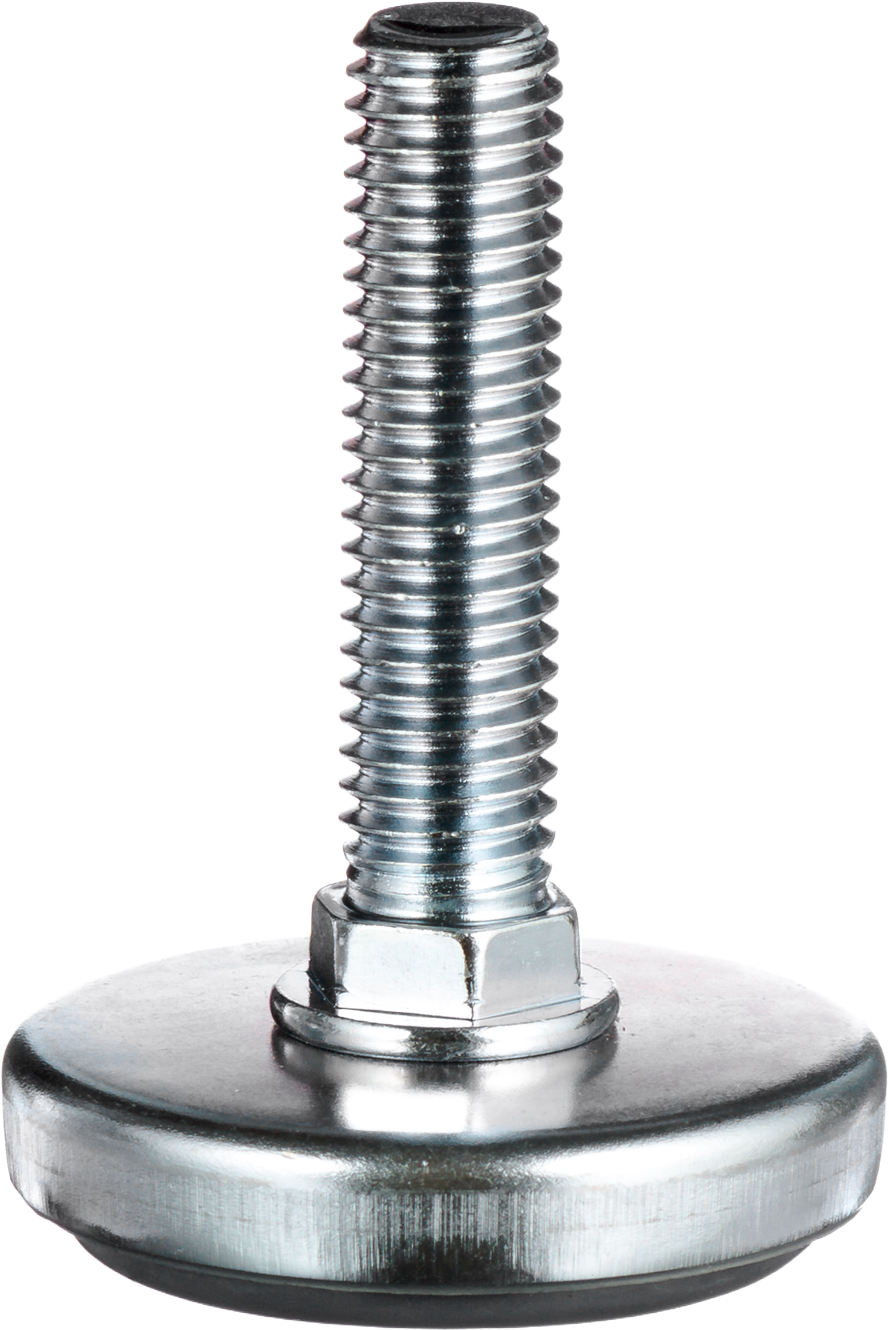

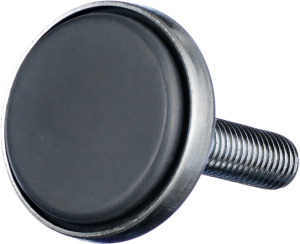

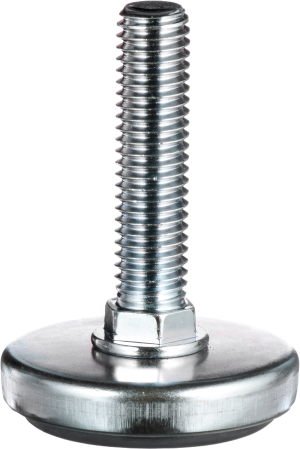

Level Star Series w/Rubber Pad

Part No.	(Lbs.)	A	B	C	D	E	F	ROHS	Part No.
Part No.	(Lbs.)	A	B	C	D	E	F	ROHS	Part No.
FSE300S	300	1/4-20	1.50	1.50	1.22	0.500	0.16		FSE300S
FSE302S	300	5/16-18	1.50	1.50	1.22	0.500	0.16		FSE302S
FSE304S	300	3/8-16	2.00	2.00	1.71	0.563	0.20		FSE304S
FSE306S	300	1/2-13	2.00	2.00	1.71	0.563	0.20		FSE306S

Level Star Series w/Nylon Pad

Part No.	(Lbs.)	A	B	C	D	E	ROHS	CAD
Part No.	(Lbs.)	A	B	C	D	E	ROHS	CAD
FSN300S	300	1/4-20	1.50	1.38	0.500	0.16		FSN300S
FSN302S	300	5/16-18	1.50	1.38	0.500	0.16		FSN302S
FSN304S	300	3/8-16	2.00	2.00	0.563	0.20		FSN304S
FSN306S	300	1/2-13	2.00	2.00	0.563	0.20		FSN306S

Product not available in metric.
