Posi-Hex™ Standard Spring Plungers

Stainless Steel

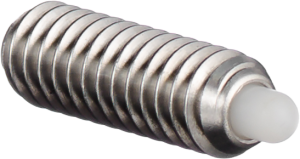

Posi-HexTM standard spring plungers are made entirely of stainless steel alloy and provide maximum protection against rust and corrosion.

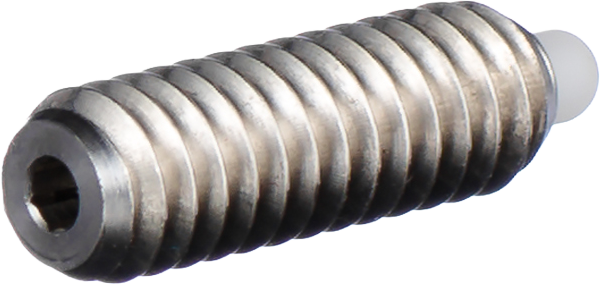

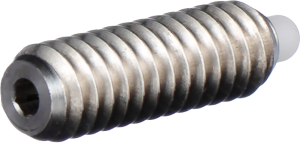

Posi-HexTM standard spring plungers with Delrin® Nose offer all of the advantages of Delrin®. The stainless steel construction affords maximum protection against rust and corrosion.

Typical Uses

  • Positioning
  • Indexing
  • Ejecting
  • With Thread Lock
  • Latching
  • Detents
  • Contacts
  • Lifters
  • Insulators

Special Features

  • Easy installation with a hex wrench
  • Will withstand high torque
  • Controlled end forces
  • Heavy & light end forces
  • Accurate alignment
  • Wear resistance

Special Features
Delrin® Nose

  • Easy installation with a hex wrench
  • Will withstand high torque
  • Controlled end forces
  • Insulating Delrin® Nose
  • Reinforced for minimum deformation under force
  • Stainless steel resists corrosion
  • Self-lubricating
Download the PDF
SSPH54B-2
SSPH54B-2
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Posi-Hex Plungers - Stainless Steel

Part No.End Force, (Lbs.)ABCDEROHSCAD
CAD
With Thread Lock
With Thread LockInitialMid.Final
SSPH48SSPH48P1.53.04.56-320.530.0630.0450.050SSPH48SSPH48P
SSPH48BSSPH48BP1.01.31.66-320.530.0630.0450.050SSPH48BSSPH48BP
SSPH50SSPH50P2.75.07.38-320.630.0940.0700.063SSPH50SSPH50P
SSPH52SSPH52P2.97.011.110-320.750.1250.0920.063SSPH52SSPH52P
SSPH54SSPH54N3.08.013.01/4-201.000.1880.1180.079SSPH54SSPH54N
SSPH54ASSPH54AN3.08.013.01/4-281.000.1880.1180.079SSPH54ASSPH54AN
SSPH54BSSPH54BN2.05.59.01/4-200.750.1250.1180.079SSPH54BSSPH54BN
SSPH56SSPH56N3.09.015.05/16-181.000.1880.1350.093SSPH56SSPH56N
SSPH58SSPH58P5.510.014.53/8-161.130.1880.1870.156SSPH58SSPH58P
SSPH60SSPH60P6.612.017.41/2-131.250.2500.2480.156SSPH60SSPH60P
SSPH62SSPH62P10.518.025.55/8-111.500.3130.3100.219SSPH62SSPH62P
SSPH64SSPH64P6.722.037.33/4-101.750.3130.3740.250SSPH64SSPH64P
SSPH66SSPH66P16.042.068.01-82.410.5000.4980.375SSPH66SSPH66P

Light End Force Posi-Hex Plungers - Stainless Steel

Part No.End Force, (Lbs.)ABCDEROHSCAD
CAD
With Thread Lock
With Thread LockInitialMid.Final
SSPH49SSPH49P0.51.01.56-320.530.0630.0450.050SSPH49SSPH49P
SSPH51SSPH51P0.71.52.38-320.630.0940.0700.063SSPH51SSPH51P
SSPH53SSPH53P1.32.02.710-320.750.1250.0920.063SSPH53SSPH53P
SSPH55SSPH55N1.02.54.01/4-201.000.1880.1180.079SSPH55SSPH55N
SSPH55ASSPH55AN1.02.54.01/4-281.000.1880.1180.079SSPH55ASSPH55AN
SSPH57SSPH57N1.53.04.55/16-181.000.1880.1350.093SSPH57SSPH57N
SSPH59SSPH59P2.85.07.23/8-161.130.1880.1870.156SSPH59SSPH59P
SSPH61SSPH61P2.76.09.31/2-131.250.2500.2480.156SSPH61SSPH61P
SSPH63SSPH63P3.57.010.55/8-111.500.3130.3100.219SSPH63SSPH63P
SSPH67SSPH67P4.017.531.01-82.410.5000.4980.375SSPH67SSPH67P

Posi-Hex Plungers - Stainless Steel w/Delrin® Nose

Part No.End Force, (Lbs.)ABCDEROHSCAD
CAD
With Thread Lock
With Thread LockInitialMid.Final
DSSPH48DSSPH48P1.53.04.56-320.530.0630.0450.050DSSPH48DSSPH48P
DSSPH48BDSSPH48BP1.01.31.66-320.530.0630.0450.050DSSPH48BDSSPH48BP
DSSPH50DSSPH50P2.75.07.38-320.630.0940.0700.063DSSPH50DSSPH50P
DSSPH52DSSPH52P2.97.011.110-320.750.1250.0920.063DSSPH52DSSPH52P
DSSPH54DSSPH54N3.08.013.01/4-201.000.1880.1180.079DSSPH54DSSPH54N
DSSPH54ADSSPH54AP3.08.013.01/4-281.000.1880.1180.079DSSPH54ADSSPH54AP
DSSPH54BDSSPH54BN2.05.59.01/4-200.750.1250.1180.079DSSPH54BDSSPH54BN
DSSPH56DSSPH56N3.09.015.05/16-181.000.1880.1350.093DSSPH56DSSPH56N
DSSPH58DSSPH58P5.510.014.53/8-161.130.1880.1870.156DSSPH58DSSPH58P
DSSPH60DSSPH60P6.612.017.41/2-131.250.2500.2480.156DSSPH60DSSPH60P
DSSPH62DSSPH62P10.518.025.55/8-111.500.3130.3100.219DSSPH62DSSPH62P
DSSPH64DSSPH64P6.722.037.33/4-101.750.3130.3740.250DSSPH64DSSPH64P
DSSPH66DSSPH66P16.042.068.01-82.410.5000.4980.375DSSPH66DSSPH66P

Light End Force Posi-Hex Plungers - Stainless Steel w/Delrin® Nose

Part No.End Force, (Lbs.)ABCDEROHSCAD
CAD
With Thread Lock
With Thread LockInitialMid.Final
DSSPH49DSSPH49P0.51.01.56-320.530.0630.0450.050DSSPH49DSSPH49P
DSSPH51DSSPH51P0.71.52.38-320.630.0940.0700.063DSSPH51DSSPH51P
DSSPH53DSSPH53P1.32.02.710-320.750.1250.0920.063DSSPH53DSSPH53P
DSSPH55DSSPH55N1.02.54.01/4-201.000.1880.1180.079DSSPH55DSSPH55N
DSSPH55ADSSPH55AP1.02.54.01/4-281.000.1880.1180.079DSSPH55ADSSPH55AP
DSSPH57DSSPH57N1.53.04.55/16-181.000.1880.1350.093DSSPH57DSSPH57N
DSSPH59DSSPH59P2.85.07.23/8-161.130.1880.1870.156DSSPH59DSSPH59P
DSSPH61DSSPH61P2.76.09.31/2-131.250.2500.2480.156DSSPH61DSSPH61P
DSSPH63DSSPH63P3.57.010.55/8-111.500.3130.3100.219DSSPH63DSSPH63P
DSSPH67DSSPH67P4.017.531.01-82.410.5000.4980.375DSSPH67DSSPH67P



Posi-Hex Plungers - Stainless Steel

Part No.End Force, NABCØDHEXROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
SSPHM4SSPHM4P12.032.5M4 x 0.715.92.41.82.0SSPHM4SSPHM4P
SSPHLM4SSPHLM4P3.110.2M4 x 0.715.92.41.82.0SSPHLM4SSPHLM4P
SSPHM5SSPHM5P12.949.4M5 x 0.819.13.22.32.5SSPHM5SSPHM5P
SSPHLM5SSPHLM5P5.812.0M5 x 0.819.13.22.32.5SSPHLM5SSPHLM5P
SSPHM6SSPHM6P13.357.8M6 X 1.025.44.83.02.5SSPHM6SSPHM6P
SSPHLM6SSPHLM6P4.417.8M6 X 1.025.44.83.02.5SSPHLM6SSPHLM6P
SSPHM8SSPHM8P13.366.7M8 x 1.2525.44.83.42.5SSPHM8SSPHM8P
SSPHLM8SSPHLM8P6.720.0M8 x 1.2525.44.83.42.5SSPHLM8SSPHLM8P
SSPHM10SSPHM10P24.564.5M10 x 1.528.64.84.74.0SSPHM10SSPHM10P
SSPHLM10SSPHLM10P12.532.5M10 x 1.528.64.84.74.0SSPHLM10SSPHLM10P
SSPHM12SSPHM12P29.477.4M12 x 1.7531.86.46.36.0SSPHM12SSPHM12P
SSPHLM12SSPHLM12P12.041.4M12 x 1.7531.86.46.36.0SSPHLM12SSPHLM12P
SSPHM16SSPHM16P46.7113.4M16 x 2.038.17.97.98.0SSPHM16SSPHM16P
SSPHLM16SSPHLM16P15.646.7M16 x 2.038.17.97.98.0SSPHLM16SSPHLM16P

Posi-Hex Plungers - Stainless Steel w/Delrin® Nose

Part No.End Force, NABCØDHEXROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
DSSPHM4DSSPHM4P12.032.5M4 x 0.715.92.41.82.0DSSPHM4DSSPHM4P
DSSPHLM4DSSPHLM4P3.110.2M4 x 0.715.92.41.82.0DSSPHLM4DSSPHLM4P
DSSPHM5DSSPHM5P12.949.4M5 x 0.819.13.22.32.5DSSPHM5DSSPHM5P
DSSPHLM5DSSPHLM5P5.812.0M5 x 0.819.13.22.32.5DSSPHLM5DSSPHLM5P
DSSPHM6DSSPHM6P13.357.8M6 X 1.025.44.83.02.5DSSPHM6DSSPHM6P
DSSPHLM6DSSPHLM6P4.417.8M6 X 1.025.44.83.02.5DSSPHLM6DSSPHLM6P
DSSPHM8DSSPHM8P13.366.7M8 x 1.2525.44.83.42.5DSSPHM8DSSPHM8P
DSSPHLM8DSSPHLM8P6.720.0M8 x 1.2525.44.83.42.5DSSPHLM8DSSPHLM8P
DSSPHM10DSSPHM10P24.564.5M10 x 1.528.64.84.74.0DSSPHM10DSSPHM10P
DSSPHLM10DSSPHLM10P12.532.5M10 x 1.528.64.84.74.0DSSPHLM10DSSPHLM10P
DSSPHM12DSSPHM12P29.477.4M12 x 1.7531.86.46.36.0DSSPHM12DSSPHM12P
DSSPHLM12DSSPHLM12P12.041.4M12 x 1.7531.86.46.36.0DSSPHLM12DSSPHLM12P
DSSPHM16DSSPHM16P46.7113.4M16 x 2.038.17.97.98.0DSSPHM16DSSPHM16P
DSSPHLM16DSSPHLM16P15.646.7M16 x 2.038.17.97.98.0DSSPHLM16DSSPHLM16P
