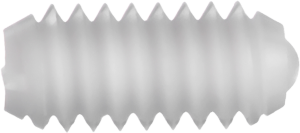

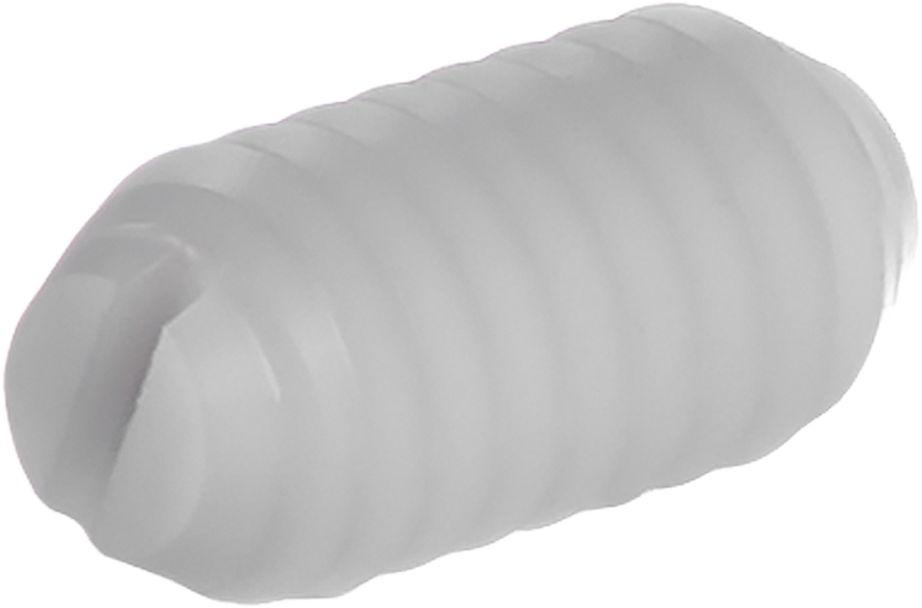

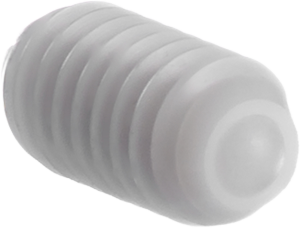

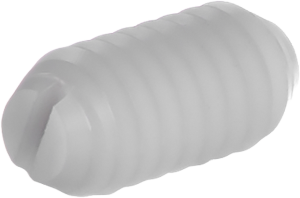

Delrin® Ball Plungers

Delrin® ball plungers with stainless steel or nylon plastic ball are ideal for applications where products or components are made mostly or entirely of plastic.

Typical Uses

  • Lightweight applications

Special Features

  • Steel or stainless steel body with nylon ball
  • Electrical isolation
  • Highly durable & non-marring
  • Steel – zinc plate with black, gold or clear chromate
  • Stainless steel spring standard
  • Compact & lightweight
  • Withstands side loading
  • Controlled end forces



Download the PDF
derlin-ball-plungers-dual
derlin-ball-plungers-dual
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Delrin® Ball Plungers - Stainless Steel Ball

Part No.Body Color CodeEnd Force, (Lbs)ABCDROHSCAD
InitialFinal
D54White2.05.01/4-200.5310.0270.125D54
DL54White1.02.51/4-200.5310.0270.125DL54
D56White4.09.05/16-180.5780.0390.156D56
DL56White2.04.55/16-180.5780.0390.156DL56
D58White5.010.03/8-160.6250.0530.187D58
DL58White2.55.03/8-160.6250.0530.187DL58

Delrin® Ball Plungers –Nylon Ball

Part No.Body Color CodeEnd Force, (Lbs.)ABCDROHSCAD
InitialFinal
ND54White2.05.01/4-200.5310.0270.125ND54
NDL54White1.02.51/4-200.5310.0270.125NDL54
ND56White4.09.05/16-180.5780.0390.156ND56
NDL56White2.04.55/16-180.5780.0390.156NDL56
ND58White5.010.03/8-160.6250.0530.187ND58
NDL58White2.55.03/8-160.6250.0530.187NDL58

Product not available in metric.
