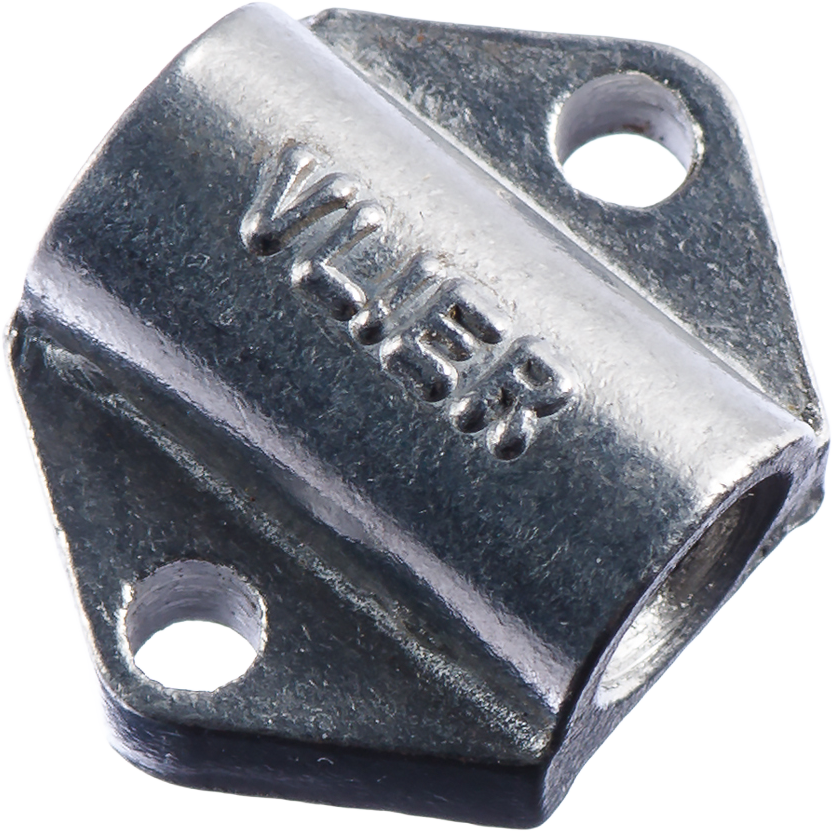

Vlier’s tooling flanges are compatible with a wide variety of spring-loaded devices and tooling fixture components, and are ideal for fixtures that require a horizontal application of a 1/4-20 and 1/2-13 threaded spring-loaded device.

Typical Uses

Workholding and fixtures applications.

Special Features

  • Eliminates need for custom tooling blocks
  • Works with a wide range of devices and products
Download the PDF
TF25--1A
TF25--1A
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Tooling Flanges

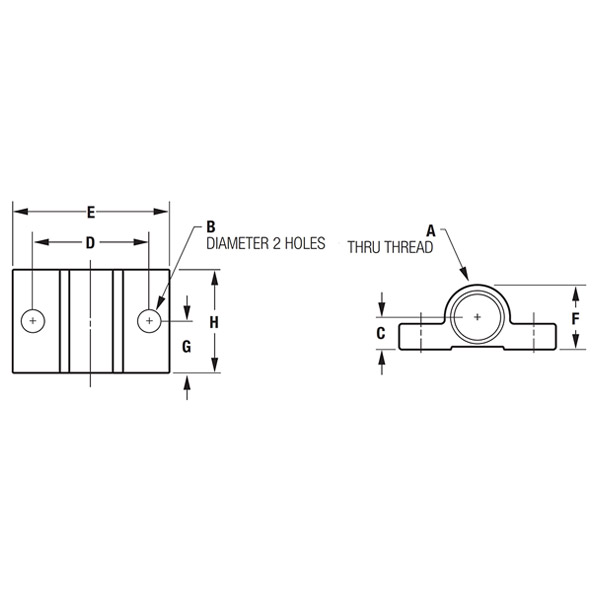

Part No.ABCDEFGHROHSCAD
TF251/4-200.1360.220.660.880.410.340.69TF25
TF501/2-130.2030.311.131.500.630.501.00TF50

Product not available in metric.
