Leveling Devices

High Value Series Socket Style with Elastomer Pad

Steel with Gold Chromate Finish

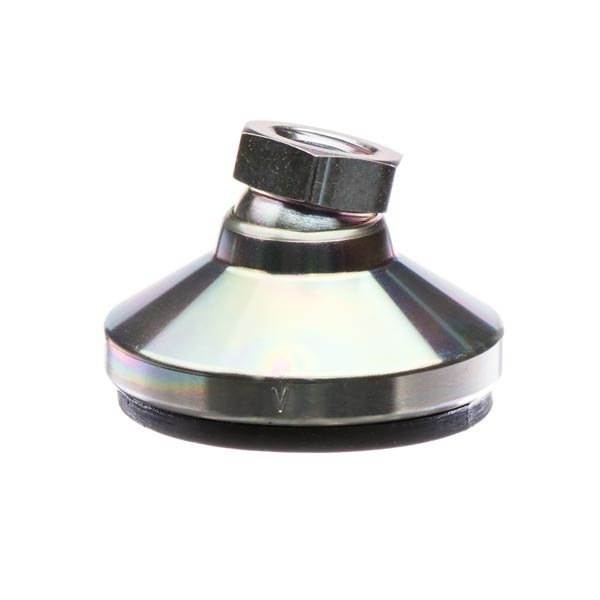

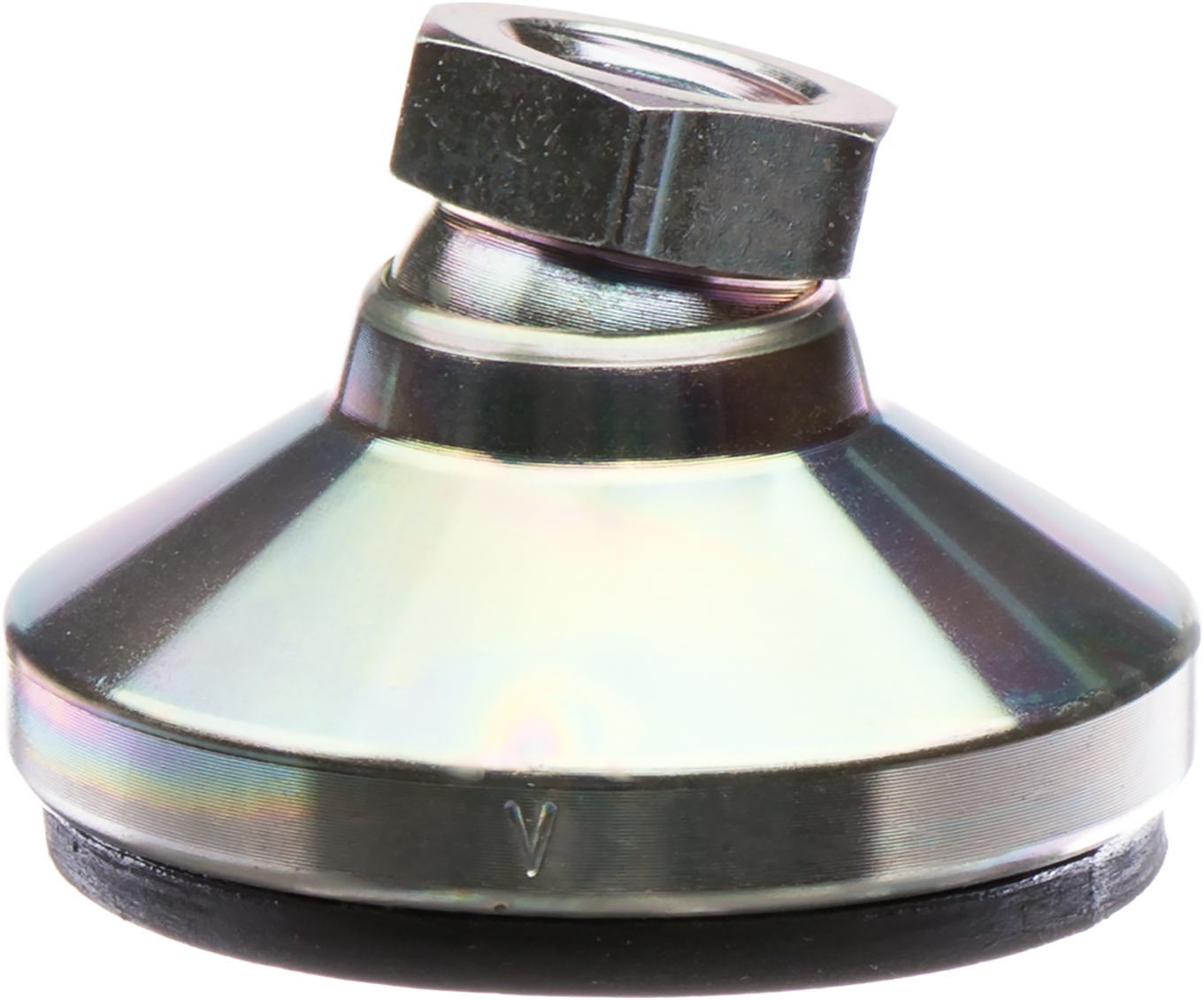

Vlier’s high value series socket style leveling devices are of premium quality construction, with optimum plating, finishing and cosmetics. These levelers feature a .125 inch neoprene elastomer pad bonded to the bottom of the base for non-skid support. These devices provide stable, secure leveling with a large diameter base support and are available in a steel design with gold chromate finish.

Typical Uses

Data storage equipment
Large medical equipment
Material handling equipment
Industrial workstations
Industrial machines

Special Features

Hardened ball
Integrally machined hex
Non-skid elastomer pad protects floor/surface finish
Large diameter base support
15° swivel off centerline

ANSI (Inch/American) Tables

High Value Series Socket Style w/ Elastomer Pad - Steel w/Gold Chromate Finish

Part No.	Max Load (Lbs.)	A	B	C*	D	E	F	ROHS	CAD
Part No.	Max Load (Lbs.)	A	B	C*	D	E	F	ROHS	CAD
HVEP298B	525	10-32	3/8	17/32	3/4	7/64	15/64		HVEP298B
HVEP300B	800	1/4-20	1/2	45/64	1	5/32	5/16		HVEP300B
HVEP304B	2,800	3/8-16	5/8	7/8	1-1/4	3/16	3/8		HVEP304B
HVEP306B	3,750	1/2-13	3/4	1-1/8	1-7/8	1/4	7/16		HVEP306B
HVEP308B	4,500	5/8-11	7/8	1-1/4	2-1/2	5/16	7/16		HVEP308B
HVEP310B	5,400	3/4-10	1-1/16	1-1/2	3	1/2	5/8		HVEP310B
HVEP312B	16,000	1-8	1-3/8	1-7/8	4	13/32	3/16		HVEP312B

High Value Series Socket Style w/ Elastomer Pad - Steel w/Gold Chromate Finish

Part No.	Max Load (kg.)	A	B	C*	D	E	F	ROHS	Part No.
Part No.	Max Load (kg.)	A	B	C*	D	E	F	ROHS	Part No.
HVEPM6B	240	M6 x 1-6h	10	13.5	19.1	2.8	5.8		HVEPM6B
HVEPM8B	375	M8 x 1.25-6h	13	17.8	25.4	3.8	7.8		HVEPM8B
HVEPM10B	1,273	M10 x 1.5-6h	17	22.4	31.8	4.3	9.6		HVEPM10B
HVEPM12B	1,705	M12 x 1.75h	19	28.7	47.8	6.4	11.0		HVEPM12B
HVEPM16B	2,046	M16 x 2-6h	24	31.8	63.5	7.9	11.0		HVEPM16B
HVEPM20B	2,455	M20 x 2.5-6h	30	38.1	76.2	12.7	15.7		HVEPM20B
HVEPM24B	7,500	M24 x 3-6h	36	47.8	101.6	10.2	20.5		HVEPM24B
