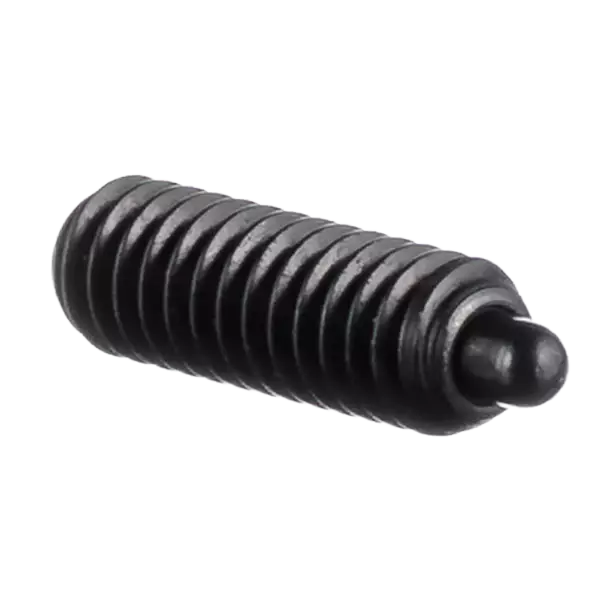

Posi-Hex™ Standard Spring Plungers

Steel

Posi-HexTM standard spring plungers allow for easy installation and are removal using a hex wrench. Posi-HexTM plungers withstand high torque and are recommended for use with nylon locking elements.

Posi-HexTM standard spring plungers with Delrin® Nose provide resistance to impacts, moisture, solvents and heat up to 190° F. They are ideal for use with soft materials such as aluminum or brass.

Typical Uses

  • Positioning
  • Indexing
  • Ejecting
  • With Thread Lock
  • Latching
  • Detents
  • Contacts
  • Lifters
  • Insulators



Special Features

  • Easy installation with a hex wrench
  • Will withstand high torque
  • Controlled end forces
  • Heavy & light end forces
  • Accurate alignment
  • Wear resistance

Special Features
Delrin® Nose

  • Easy installation with a hex wrench
  • Will withstand high torque
  • Controlled end forces
  • Insulating Delrin® Nose
  • Reinforced for minimum deformation under force
  • Self-lubricating
Download the PDF
Posi-Hex
Posi-Hex
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Posi-Hex Plungers - Steel

Part No.End Force, (Lbs.)ABCDEROHSCAD
CAD
With Thread Lock
With Thread LockInitialMid.Final
PH48PH48P1.53.04.56-320.530.0630.0450.050PH48PH48P
PH48BPH48BP1.01.31.66-320.530.0630.0450.050PH48BPH48BP
PH50PH50P2.75.07.38-320.630.0940.0700.063PH50PH50P
PH52PH52P2.97.011.110-320.750.1250.0920.063PH52PH52P
PH54PH54N3.08.013.01/4-201.000.1880.1180.079PH54PH54N
PH54APH54AN3.08.013.01/4-281.000.1880.1180.079PH54APH54AN
PH54BPH54BN2.05.59.01/4-200.750.1250.1180.079PH54BPH54BN
PH56PH56N3.09.015.05/16-181.000.1880.1350.093PH56PH56N
PH58PH58P5.510.014.53/8-161.130.1880.1870.156PH58PH58P
PH60PH60P6.612.017.41/2-131.250.2500.2480.156PH60PH60P
PH62PH62P10.518.025.55/8-111.500.3130.3100.219PH62PH62P
PH64PH64P6.722.037.33/4-101.750.3130.3740.250PH64PH64P
PH66PH66P16.042.068.01-82.410.5000.4980.375PH66PH66P

Posi-Hex Plungers - Steel w/Delrin® Nose

Part No.End Force, (Lbs.)ABCDEROHSCAD
CAD
With Thread Lock
With Thread LockInitialMid.Final
DPH48DPH48P1.53.04.56-320.530.0630.0450.050DPH48DPH48P
DPH48BDPH48BP1.01.31.66-320.530.0630.0450.050DPH48BDPH48BP
DPH50DPH50P2.75.07.38-320.630.0940.0700.063DPH50DPH50P
DPH52DPH52P2.97.011.110-320.750.1250.0920.063DPH52DPH52P
DPH54DPH54N3.08.013.01/4-201.000.1880.1180.079DPH54DPH54N
DPH54ADPH54AP3.08.013.01/4-281.000.1880.1180.079DPH54ADPH54AP
DPH54BDPH54BN2.05.59.01/4-200.750.1250.1180.079DPH54BDPH54BN
DPH56DPH56N3.09.015.05/16-181.000.1880.1350.093DPH56DPH56N
DPH58DPH58P5.510.014.53/8-161.130.1880.1870.156DPH58DPH58P
DPH60DPH60P6.612.017.41/2-131.250.2500.2480.156DPH60DPH60P
DPH62DPH62P10.518.025.55/8-111.500.3130.3100.219DPH62DPH62P
DPH64DPH64P6.722.037.33/4-101.750.3130.3740.250DPH64DPH64P
DPH66DPH66P16.042.068.01-82.410.5000.4980.375DPH66DPH66P

Light End Force Posi-Hex Plungers - Steel

Part No.End Force, (Lbs.)ABCDEROHSCAD
CAD
With Thread Lock
With Thread LockInitialMid.Final
PH49PH49P0.511.56-320.530.0630.0450.050PH49PH49P
PH51PH51P0.71.52.38-320.630.0940.0700.063PH51PH51P
PH53PH53P1.322.710-320.750.1250.0920.063PH53PH53P
PH55PH55N1.02.54.01/4-201.000.1880.1180.079PH55PH55N
PH55APH55AN1.02.54.01/4-281.000.1880.1180.079PH55APH55AN
PH57PH57N1.534.55/16-181.000.1880.1350.093PH57PH57N
PH59PH59P2.857.23/8-161.130.1880.1870.156PH59PH59P
PH61PH61P2.769.31/2-131.250.2500.2480.156PH61PH61P
PH63PH63P3.5710.55/8-111.500.3130.3100.219PH63PH63P
PH67PH67P4.017.531.01-82.410.5000.4980.375PH67PH67P

Light End Force Posi-Hex Plungers - Steel w/Delrin® Nose

Part No.End Force, (Lbs.)ABCDEROHSCAD
CAD
With Thread Lock
With Thread LockInitialMid.Final
DPH49DPH49P0.51.01.56-320.530.0630.0450.050DPH49DPH49P
DPH51DPH51P0.71.52.38-320.630.0940.0700.063DPH51DPH51P
DPH53DPH53P1.32.02.710-320.750.1250.0920.063DPH53DPH53P
DPH55DPH55N1.02.54.01/4-201.000.1880.1180.079DPH55DPH55N
DPH55ADPH55AP1.02.54.01/4-281.000.1880.1180.079DPH55ADPH55AP
DPH57DPH57N1.53.04.55/16-181.000.1880.1350.093DPH57DPH57N
DPH59DPH59P2.85.07.23/8-161.130.1880.1870.156DPH59DPH59P
DPH61DPH61P2.76.09.31/2-131.250.2500.2480.156DPH61DPH61P
DPH63DPH63P3.57.010.55/8-111.500.3130.3100.219DPH63DPH63P
DPH67DPH67P4.017.531.01-82.410.5000.4980.375DPH67DPH67P



Posi-Hex Plungers - Steel

Part No.End Force, NABCDHEXROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
PHM4PHM4P12.032.5M4 x 0.715.92.41.82.0PHM4PHM4P
PHLM4PHLM4P3.110.2M4 x 0.715.92.41.82.0PHLM4PHLM4P
PHM5PHM5P12.949.4M5 x 0.819.13.22.32.5PHM5PHM5P
PHLM5PHLM5P5.812.0M5 x 0.819.13.22.32.5PHLM5PHLM5P
PHM6PHM6P13.357.8M6 X 1.025.44.83.02.5PHM6PHM6P
PHLM6PHLM6P4.417.8M6 X 1.025.44.83.02.5PHLM6PHLM6P
PHM8PHM8P13.366.7M8 x 1.2525.44.83.42.5PHM8PHM8P
PHLM8PHLM8P6.720.0M8 x 1.2525.44.83.42.5PHLM8PHLM8P
PHM10PHM10P24.564.5M10 x 1.528.64.84.74.0PHM10PHM10P
PHLM10PHLM10P12.532.5M10 x 1.528.64.84.74.0PHLM10PHLM10P
PHM12PHM12P29.477.4M12 x 1.7531.86.46.36.0PHM12PHM12P
PHLM12PHLM12P12.041.4M12 x 1.7531.86.46.36.0PHLM12PHLM12P
PHM16PHM16P46.7113.4M16 x 2.038.17.97.98.0PHM16PHM16P
PHLM16PHLM16P15.646.7M16 x 2.038.17.97.98.0PHLM16PHLM16P

Posi-Hex Plungers – Steel w/Delrin® Nose

Part No.End Force, NABCDHEXROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
DPHM4DPHM4P12.032.5M4 x 0.715.92.41.82.0DPHM4DPHM4P
DPHLM4DPHLM4P3.110.2M4 x 0.715.92.41.82.0DPHLM4DPHLM4P
DPHM5DPHM5P12.949.4M5 x 0.819.13.22.32.5DPHM5DPHM5P
DPHLM5DPHLM5P5.812.0M5 x 0.819.13.22.32.5DPHLM5DPHLM5P
DPHM6DPHM6P13.357.8M6 X 1.025.44.83.02.5DPHM6DPHM6P
DPHLM6DPHLM6P4.417.8M6 X 1.025.44.83.02.5DPHLM6DPHLM6P
DPHM8DPHM8P13.366.7M8 x 1.2525.44.83.42.5DPHM8DPHM8P
DPHLM8DPHLM8P6.720.0M8 x 1.2525.44.83.42.5DPHLM8DPHLM8P
DPHM10DPHM10P24.564.5M10 x 1.528.64.84.74.0DPHM10DPHM10P
DPHLM10DPHLM10P12.532.5M10 x 1.528.64.84.74.0DPHLM10DPHLM10P
DPHM12DPHM12P29.477.4M12 x 1.7531.86.46.36.0DPHM12DPHM12P
DPHLM12DPHLM12P12.041.4M12 x 1.7531.86.46.36.0DPHLM12DPHLM12P
DPHM16DPHM16P46.7113.4M16 x 2.038.17.97.98.0DPHM16DPHM16P
DPHLM16DPHLM16P15.646.7M16 x 2.038.17.97.98.0DPHLM16DPHLM16P
