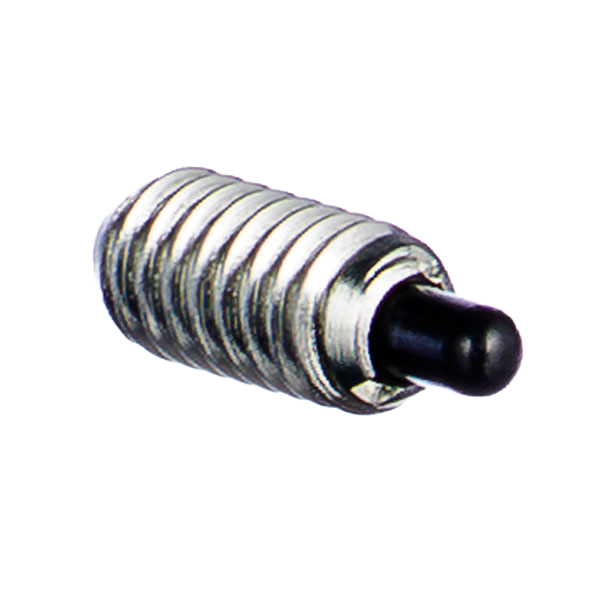

Extended Travel Stubby Plungers

Steel

Extended travel stubby plungers offer maximum travel. These compact spring plungers provide the same travel as our standard plunger while using the same body size as our stubby plunger.

Typical Uses

  • Limited space
  • Indexing
  • Electrical contacts
  • Part positioning
  • With Thread Lock
  • Detents

Special Features

  • Case hardened plunger
  • Wear & corrosion resistance
  • Compact size
  • Allows some side loading
  • Extended travel
  • Screwdriver installation
Download the PDF
Extended Travel Stubby Plungers - Steel
Extended Travel Stubby Plungers - Steel
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Extended Travel Stubby Plungers - Steel w/Steel Nose

Part No.End Force, (Lbs.)ABCDROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
ML50ML50P1.03.258-320.4370.0940.070ML50ML50P
ML51ML51P0.52.08-320.4370.0940.070ML51ML51P
ML52ML52P1.254.2510-320.4680.1250.093ML52ML52P
ML53ML53P0.33.010-320.4680.1250.093ML53ML53P
ML54ML54N2.07.01/4-200.5310.1880.119ML54ML54N
ML55ML55N0.33.51/4-200.5310.1880.119ML55ML55N
ML56ML56N2.09.05/16-180.5620.1880.135ML56ML56N
ML57ML57N0.54.55/16-180.5620.1880.135ML57ML57N
ML58ML58N3.012.53/8-160.6250.1880.186ML58ML58N
ML59ML59N1.57.53/8-160.6250.1880.186ML59ML59N
ML60ML60N3.519.01/2-130.7500.2500.248ML60ML60N
ML61ML61N1.78.51/2-130.7500.2500.248ML61ML61N
ML62ML62N4.533.55/8-111.0620.3130.310ML62ML62N
ML63ML63N2.010.55/8-111.0620.3130.310ML63ML63N

Extended Travel Stubby Plungers - Steel w/Delrin® Nose

Part No.End Force, (Lbs.)ABCDROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
NML50NML50P1.03.258-320.4370.0940.070NML50NML50P
NML51NML51P0.52.08-320.4370.0940.070NML51NML51P
NML52NML52P1.254.2510-320.4680.1250.093NML52NML52P
NML53NML53P0.33.010-320.4680.1250.093NML53NML53P
NML54NML54N2.07.01/4-200.5310.1880.119NML54NML54N
NML55NML55N0.33.51/4-200.5310.1880.119NML55NML55N
NML56NML56N2.09.05/16-180.5620.1880.135NML56NML56N
NML57NML57N0.54.55/16-180.5620.1880.135NML57NML57N
NML58NML58N3.012.53/8-160.6250.1880.186NML58NML58N
NML59NML59N1.57.53/8-160.6250.1880.186NML59NML59N
NML60NML60N3.519.01/2-130.7500.2500.248NML60NML60N
NML61NML61N1.78.51/2-130.7500.2500.248NML61NML61N
NML62NML62N4.533.55/8-111.0620.3130.310NML62NML62N
NML63NML63N2.010.55/8-111.0620.3130.310NML63NML63N

Extended Travel Stubby Plungers - Steel w/Steel Nose

Part No.End Force, (Lbs.)ABCDROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
MLHM4MLHM4P4.514.5M4 x 0.711.12.41.8MLHM4MHM4P
MLM4MLM4P2.28.9M4 x 0.711.12.41.8MLM4MLM4P
MLHM5MLHM5P5.618.9M5 x 0.811.93.22.4MLHM5MLHM5P
MLM5MLM5P1.313.3M5 x 0.811.93.22.4MLM5MLM5P
MLHM6MLHM6P8.931.2M6 x 1.013.54.83.0MLHM6MLHM6P
MLM6MLM6P1.315.6M6 x 1.013.54.83.0MLM6MLM6P
MLHM8MLHM8P8.940.1M8 x 1.2514.34.83.4MLHM8MLHM8P
MLM8MLM8P2.220.0M8 x 1.2514.34.83.4MLM8MLM8P
MLHM10MLHM10P13.455.6M10 x 1.515.94.84.7MLHM10MLHM10P
MLM10MLM10P6.733.4M10 x 1.515.94.84.7MLM10MLM10P
MLHM12MLHM12P15.684.6M12 x 1.7519.16.46.3MLHM12MLHM12P
MLM12MLM12P7.637.8M12 x 1.7519.16.46.3MLM12MLM12P
MLHM16MLHM16P20.0149.1M16 x 2.027.07.97.9MLHM16MLHM16P
MLM16MLM16P8.946.7M16 x 2.027.07.97.9MLM16MLM16P

Extended Travel Stubby Plungers - Steel w/Delrin Nose

Part No.End Force, (Lbs.)ABCDROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
NMLHM4NMHM4P4.514.5M4 x 0.711.12.41.8NMLHM4NMHM4P
NMLM4NMLM4P2.28.9M4 x 0.711.12.41.8NMLM4NMLM4P
NMLHM5NMLHM5P5.618.9M5 x 0.811.93.22.4NMLHM5NMLHM5P
NMLM5NMLM5P1.313.3M5 x 0.811.93.22.4NMLM5NMLM5P
NMLHM6NMLHM6P8.931.2M6 x 1013.54.83.0NMLHM6NMLHM6P
NMLM6NMLM6P1.315.6M6 x 1013.54.83.0NMLM6NMLM6P
NMLHM8NMLHM8P8.940.1M8 x 1.2514.34.83.4NMLHM8NMLHM8P
NMLM8NMLM8P2.220.0M8 x 1.2514.34.83.4NMLM8NMLM8P
NMLHM10NMLHM10P13.455.6M10 x 1.515.94.84.7NMLHM10NMLHM10P
NMLM10NMLM10P6.733.4M10 x 1.515.94.84.7NMLM10NMLM10P
NMLHM12NMLHM12P15.684.6M12 x 1.7519.16.46.3NMLHM12NMLHM12P
NMLM12NMLM12P7.637.8M12 x 1.7519.16.46.3NMLM12NMLM12P
NMLHM16NMLHM16P20.0149.1M16 x 2.027.07.97.9NMLHM16NMLHM16P
NMLM16NMLM16P8.946.7M16 x 2.027.07.97.9NMLM16NMLM16P
