Leveling Devices

Original Series Socket Style

Stainless Steel

Vlier’s original series socket style leveling devices in stainless steel swivel 15° off the centerline to adjust to uneven surfaces and level machine tools, electronic racks,  benches, data storage, power generation, machine centers and others. The all-stainless steel design offers maximum protection from rust and corrosion.

The fine thread option is perfect for applications where a more sensitive leveling adjustment is needed.

Typical Uses

  • Data storage equipment
  • Large medical equipment
  • Material handling equipment
  • Industrial workstations
  • Industrial machines

Special

  • Hardened ball
  • Stud with integrally machined hex
  • Large diameter base support
  • 15° swivel off centerline
  • Stainless steel resists rust and corrosion
  • Fine thread option
Download the PDF

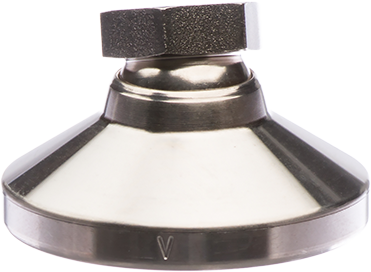

SSP306B3_1
SSP306B3_1
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Original Series Socket Style – Stainless Steel

Part No.Max Load
(Lbs.)		ABCDEFROHSCAD
SSP298B70010-323/817/323/47/6415/64SSP298B
SSP300B1,1001/4-201/245/6415/325/16SSP300B
SSP304B3,7503/8-165/87/81-1/43/163/8SSP304B
SSP306B5,0001/2-133/41-1/81-7/81/47/16SSP306B
SSP308B6,0005/8-117/81-1/42-1/25/167/16SSP308B
SSP310B7,2003/4-101-1/161-1/231/25/8SSP310B
SSP312B22,0001-81-3/81-7/8413/3213/16SSP312B

Original Series Socket Style – Stainless Steel

Part No.Max Load
(kg.)		ABCDEFROHSPart No.
SSPM12B2,273M12 x 1.75192948611.0SSPM12B
SSPM16B2,727M16 x 2.0243264811.0SSPM16B
SSPM20B3,273M20 x 2.53038761315.7SSPM20B
SSPM24B9,979M24 x 3.035481021020.5SSPM24B
