Stubby Lever Style Plungers

With Thread Lock &

Stainless Steel

Find a Distributor

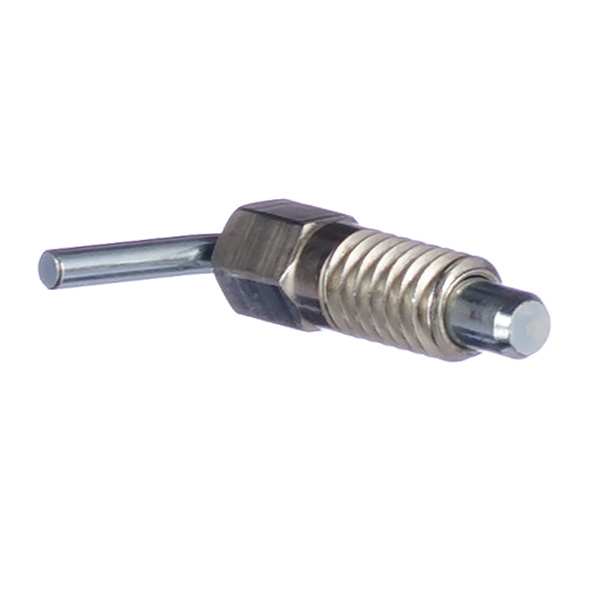

Stubby lever style plungers, available in stainless steel in locking and non-locking varieties, feature a short plunger body. This makes them well-suited for limited space applications. Their stainless steel construction resists rust or corrosion.

Typical Uses

  • Positioning
  • Fastening
  • Securing
  • With Thread Lock
  • Latching
  • Quick disconnect

Special Uses

  • Food and medical applications
  • Special environments

Special Features

  • Lever handle design
  • Non-locking models
  • Locks in retracted position
  • Tapered end for easy alignment
  • Stainless steel construction
Download the PDF
SSFRS250--2
SSFRS250--2
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Stubby Lever Style Plungers - Non-Locking Plunger Nose - Stainless Steel

Part No.End Force, (Lbs.)ABCDEFGHIROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
SSFRSN250SSFRSN250P0.120.501/4-200.750.200.160.250.400.090.50*SSFRSN250SSFRSN250P
SSFRSN375SSFRSN375P0.251.253/8-161.130.300.250.380.560.140.750.13SSFRSN375SSFRSN375P
SSFRSN500SSFRSN500P0.502.001/2-131.500.400.310.500.750.191.000.15SSFRSN500SSFRSN500P
SSFRSN625SSFRSN625P0.752.505/8-111.880.500.380.620.880.191.250.18SSFRSN625SSFRSN625P

No thread relief in 1/4-20 thread size and M6 thread for metric.

Stubby Lever Style Plungers - Locking Plunger Nose - Stainless Steel

Part No.End Force, (Lbs.)ABCDEFGHIROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
SSFRS250SSFRS250P0.120.501/4-200.750.20.160.250.400.090.50*SSFRS250SSFRS250P
SSFRS375SSFRS375P0.251.253/8-161.130.30.250.380.560.140.750.13SSFRS375SSFRS375P
SSFRS500SSFRS500P0.502.001/2-131.500.40.310.500.750.191.000.15SSFRS500SSFRS500P
SSFRS625SSFRS625P0.752.505/8-111.880.50.380.620.880.191.250.18SSFRS625SSFRS625P

No thread relief in 1/4-20 thread size and M6 thread for metric.

Stubby Lever Style Plungers - Non-Locking Plunger Nose - Stainless Steel

Part No.End Force, NABCDEFGHIROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
SSFRSNM6SSFRSNM6P0.52.2M6 x 1.0019.05.04.06.010.02.412.7*SSFRSNM6SSFRSNM6P
SSFRSNM10SSFRSNM10P1.15.6M10 x 1.5029.07.66.410.014.03.619.03.3SSFRSNM10SSFRSNM10P
SSFRSNM12SSFRSNM12P2.28.9M12 x 1.7538.010.08.012.019.04.825.04.0SSFRSNM12SSFRSNM12P
SSFRSNM16SSFRSNM16P3.311.1M16 x 2.0048.013.09.716.022.04.832.05.0SSFRSNM16SSFRSNM16P

No thread relief in 1/4-20 thread size and M6 thread for metric.

Stubby Lever Style Plungers - Locking Plunger Nose - Stainless Steel

Part No.End Force, NABCDEFGHIROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
SSFRSM6SSFRSM6P5.02.2M6 x 1.019.05.04.06.010.02.312.7*SSFRSM6SSFRSM6P
SSFRSM10SSFRSM10P1.15.6M10 x 1.529.07.86.410.014.03.6193.3SSFRSM10SSFRSM10P
SSFRSM12SSFRSM12P2.28.9M12 x 1.7538.010.08.012.019.04.825.03.8SSFRSM12SSFRSM12P
SSFRSM16SSFRSM16P3.311.1M16 x 2.048.013.09.716.022.04.832.04.6SSFRSM16SSFRSM16P

No thread relief in 1/4-20 thread size and M6 thread for metric.
