Spring Locating Pins

Vlier spring locating pins are press-fit inserts designed for fixturing small parts in tight, compact spaces. Ideal for positioning and chucking flat or round parts for clamping.

These precisely engineered mechanical components feature an aluminum body with an alloy steel pressure pin. The high-performance spring provides the repeatable end force required in a range of industries and applications. These versatile components can also be used for profiles if needed.

For reliable performance in applications where fluids are present, our spring locating pins feature the Vlier seal.

Typical Uses

Workholding and fixtures applications.

Special Features

  • Space-saving
  • Controlled end forces
  • Quick installation
  • Vlier seal
Download the PDF

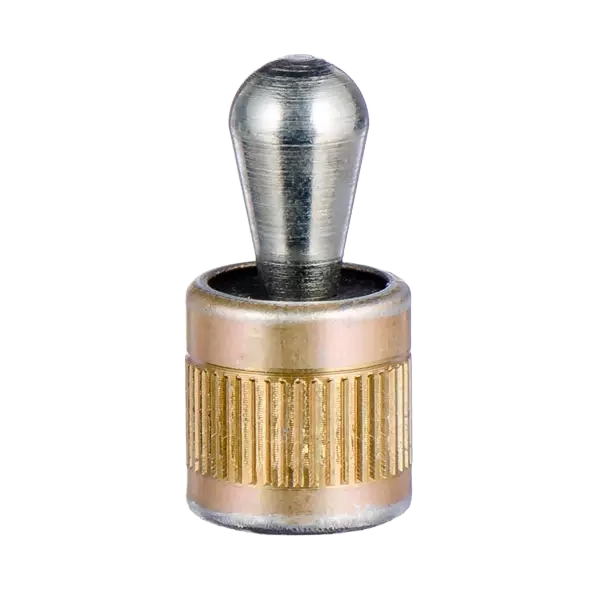

SLP500--1
SLP500--1
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Spring Locating Pins

Part No.End Forces
Side Force (Lbs.)		A
Body Dia.		B
Body Length		C
Toggle Length		D
Toggle Dia.		E
Lateral Movement, max		ROHSCAD
SLPL2502.21/40.300.160.110.034SLPL250
SLP2504.51/40.300.160.110.034SLP250
SLPH2509.01/40.300.160.110.034SLPH250
SLPL4384.57/160.450.240.200.043SLPL438
SLP43811.27/160.450.240.200.043SLP438
SLPH43822.57/160.450.240.200.043SLPH438
SLPL438A9.07/160.450.400.230.058SLPL438A
SLP438A17.07/160.450.400.230.058SLP438A
SLPH438A34.07/160.450.400.230.058SLPH438A
SLPL50011.21/20.530.510.310.070SLPL500
SLP50022.51/20.530.510.310.070SLP500
SLPH50045.01/20.530.510.310.070SLPH500
SLPL62522.55/80.690.630.390.086SLPL625
SLP62545.05/80.690.630.390.086SLP625
SLPH62567.55/80.690.630.390.086SLPH625

Product not available in metric.
