SLM Series

Low-profile, high-capacity mounts for shock protection and vibration control applications.

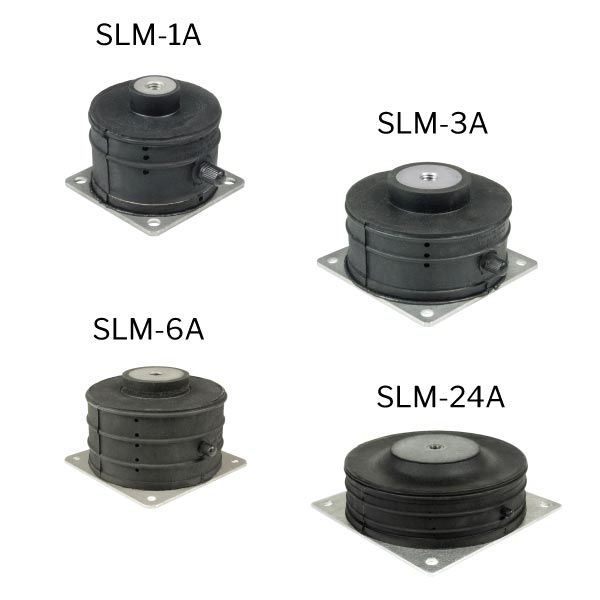

Self-Leveling Mount (SLM) Series Pneumatic Leveling Mounts

Ensure peak performance and safe operation with the Made in USA® Hutchinson SLM Series. These pneumatic elastomeric mounts are ideal for applications requiring higher deflection isolators. The SLM Series offers excellent vibration isolation performance for difficult industrial equipment in a small-space envelope.

These pneumatic leveling mounts feature a mechanical bond design which incorporates a positive locking system, and this rigid wall design provides better isolation than traditional air bladder design. They deliver 96 percent vertical isolation and 98 percent horizontal isolation at 10 Hz. Once filled with air, these mounts are virtually maintenance-free.

Typical Uses

The high stability and reliability of SLM Series makes them ideal for use in mounting vibrators, shakers, vacuum pumps, forging hammers, surface plates, coordinate measuring machines (CMM), fans, air compressors, motor/generator sets, high-speed punch presses, precision tools, inspection and metrology equipment, optical equipment, HVAC equipment and equipment subjected to low-frequency shocks and/or vibrations.

Special Features

  • Air spring elastomeric isolator with integral heavy wall construction
  • Deflection transfers shock to outer wall
  • Will not bottom out
  • Continued support and isolation even with no air pressure
  • Combined resiliency and air prevents high static deflection, drift or permanent set
  • Extends machinery life
  • Wide load range available
  • Low maintenance

Load Range

  • Eight load ratings up to 19,200 lbs. per isolator

Specifications

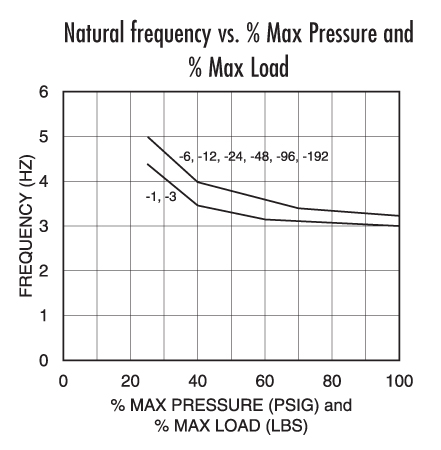

  • Natural frequency 3–5 Hertz (10 Hz. unpressurized)

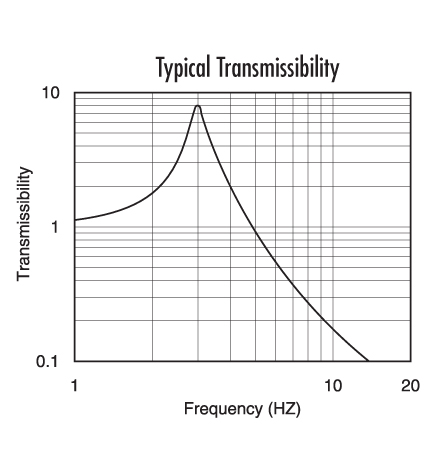

  • Transmissibility at resonance 8:1
  • Resilient element Air and neoprene diaphragm
  • Standard materials Steel and aluminum
  • Weight See table

Environmental Data

  • Neoprene elastomer has an operating temperature range of -20°F to +180°F (-30°C to +82°C) and is resilient to oils, most solvents and ozone
Download the PDF

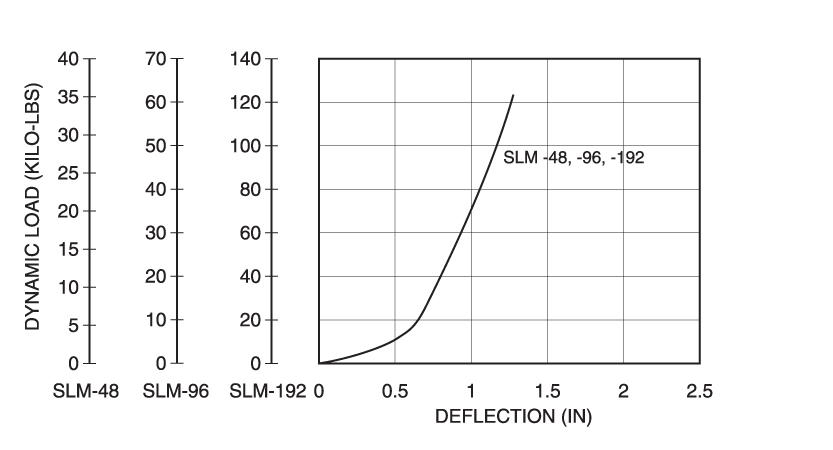

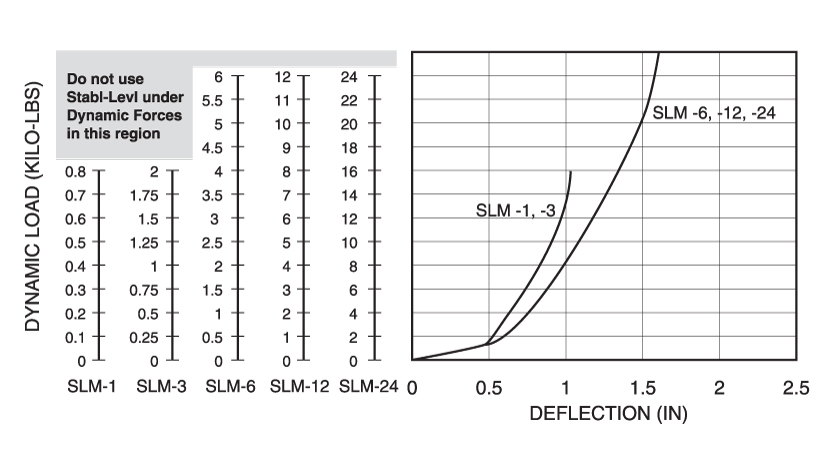

SLM Series
SLM Series

bcdi_prod_machinery_slm_perform-1 bcdi_prod_machinery_slm_perform bcdi_prod_machinery_slm_perform bcdi_prod_machinery_slm_perform

ANSI (Inch/American) Tables
Metric Tables
CAD Library

SLM Series

Part No.Max. Load
(Lbs.)		Max. Pressure
PSIG		ABCDEFGHJTWT.
(Lbs.)		ROHS
SLM-1A100603.002.380.375-16
UNC-2B		0.470.282.88
2.50
1.00
0.50
0.125
1.00
SLM-3A300604.193.500.500-13
UNC-2B		0.530.284.14
2.45
2.06
0.54
0.125
1.50
SLM-6A600805.124.250.500-13
UNC-2B		0.530.294.99
3.50
2.38
0.56
0.125
3.25
SLM-12A1200806.886.000.500-13
UNC-2B		0.530.296.74
3.50
3.75
0.56
0.125
5.50
SLM-24A24008010.008.50
0.625-11
UNC-2B		0.750.56
9.66
3.50
4.75
0.56
0.188
13.00
SLM-48A48008013.5012.000.625-11
UNC-2B		0.750.56
13.31
3.50
7.50
0.56
0.188
26.00
SLM-96A96008018.5016.001.000-14
UNS-2B		0.880.81
18.44
3.50
11.60
0.56
0.250
57.00
SLM-192A192008024.0020.001.000-14
UNS-2B		0.880.8124.00
3.50
15.750.56
0.250
100.00

SLM Series - Metric

Part No.Load Range (kg)ABCDEFGHJTWT. (kg)ROHS
SLM-M1A11-4576.260.4M1012.07.073.263.525.412.73.20.5
SLM-M3A34-136106.488.9M1214.07.0105.262.252.312.73.20.7
SLM-M6A68-272130.0108.0M1214.07.0126.788.960.514.23.21.5
SLM-M12A136-545174.8152.4M1214.07.0171.288.995.214.23.22.5
SLM-M24A272-1090254.0215.9M1619.014.2245.488.9138.214.24.86.0
SLM-M48A545-2180342.9304.8M1619.014.2338.188.9190.514.24.811.8
SLM-M96A1090-4360469.9406.4M2422.020.6468.488.9294.614.26.426.0
SLM-M192A2180-8720609.6508.0M2422.020.6609.688.9400.114.26.445.0
