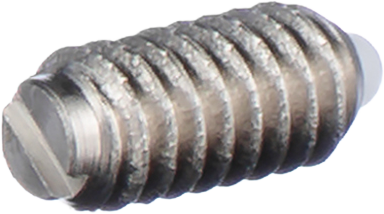

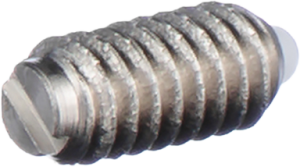

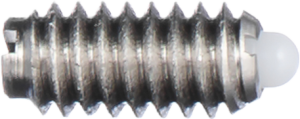

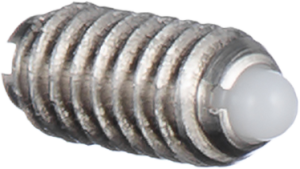

Stubby Plungers – Steel with Delrin® Nose

Delrin® Nose Stubby Plungers – Steel are compact spring loaded devices for limited-space applications requiring a non-marring contact surface and electrical insulation. The Delrin® nose resists repeated impacts, moisture, solvents and heat up to 190°F and provides a self-lubricating surface. Use for indexing, detents, electrical contacts and part positioning. Offered in ANSI thread sizes 8-32 through 5/8-11 and metric M4 x 0.7 through M16 x 2.0 with standard or light end forces and thread lock options.

Specify by:

• Thread standard and size (ANSI or metric)
• End force requirement (standard or light, initial and final)
• Thread lock requirement
• Mounting and stroke dimensions (A–D per table)

Click any row to see CAD and additional product information, or to add to quote.
