Solid Boltdown Vulcanized Leveler

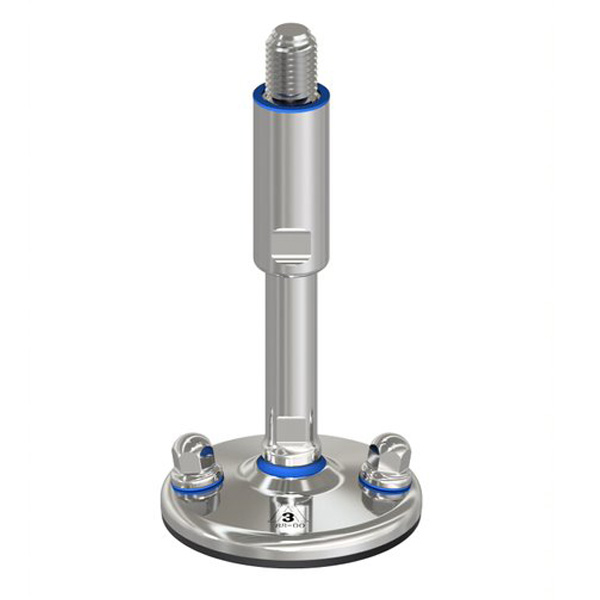

Vlier solid boltdown vulcanized leveler devices are hygienic leveling mounts constructed from AISI 304 stainless steel.

They feature a hygienic solid foot with a vulcanized FDA NBR 85 rubber pad with a boltdown feature. This allows to firmly lock your equipment in place to better secure in dynamic environments and applications.

The pad is abrasion resistant and highly elastic—protecting the floor surface beneath the base and providing a positive seal from dirt and other contaminants. The device also features an external top gasket to enable machine mounting without wasted space and an internal bottom gasket to further defend from dirt intrusion, which completes the hygienic sealing system. Our solid boltdown vulcanized leveler parts are 3-A Sanitary Standard approved.

Typical Uses

  • Pharmaceutical industry
  • Meat & poultry processing & packaging
  • Dairy processing & packaging
  • Medical equipment
  • Cosmetic industry
  • Food & beverage industries

Special Features

  • Vulcanized NBR 85 shore rubber pad
  • 3-A Sanitary Standard approved
  • External top gasket, internal bottom gasket for the hygienic sealing system
  • Stainless steel thread-covering sleeve
  • No exposed threads
  • Fairly articulated half-threadless hygienic stem stud
  • Boltdown feature
Download the PDF
Solid-Boltdown-Vulcanized-Lever
Solid-Boltdown-Vulcanized-Lever
ANSI (Inch/American) Tables
Metric Tables
CAD Library

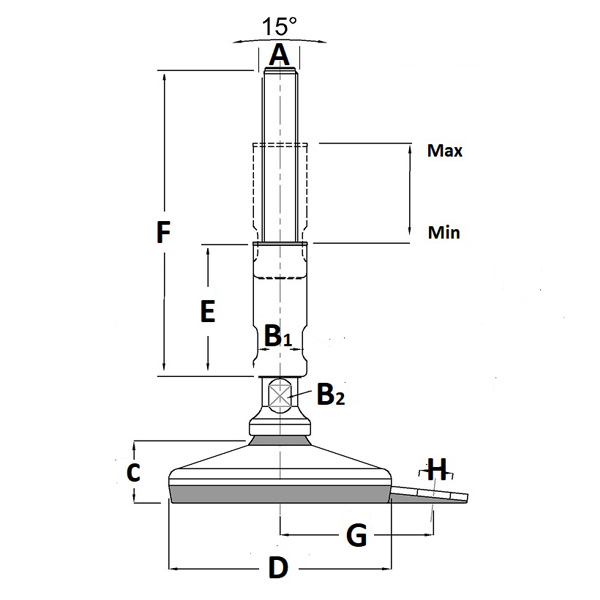

Hygienic Leveling Mounts Solid Boltdown Vulcanized Leveler

Part No.Max LoadMax & Min Working HeightA Dim. ThreadB Dim. HexC Dim. Pad HeightD Dim. Pad DiameterE Dim. Bushing lengthF Dim. /Stud LengthG Dim. Bolt Hole DistanceH Dim. /Hole SizeROHSCAD
VHL369F126344.49 - 6.261 - 81 - 1/40.983.942.365.512.7560.49VHL369F
VHL385F101164.56 - 6.343/4 - 1011.064.722.365.513.3860.49VHL385F

Hygienic Leveling Mounts Solid Boltdown Vulcanized Leveler

Part No.Max Load
(Newton)		Max & Min Working HeightA Dim. ThreadB Dim. HexC Dim. Pad HeightD Dim. Pad DiameterE Dim. Bushing lengthF Dim. /Stud LengthG Dim. Bolt Hole DistanceH Dim. /Hole SizeROHSCAD
VHLM369F55,000114-15924X33025100601407012.5VHLM369F
VHLM385F45,000116-16120X2.52627120601408612.5VHLM385F
