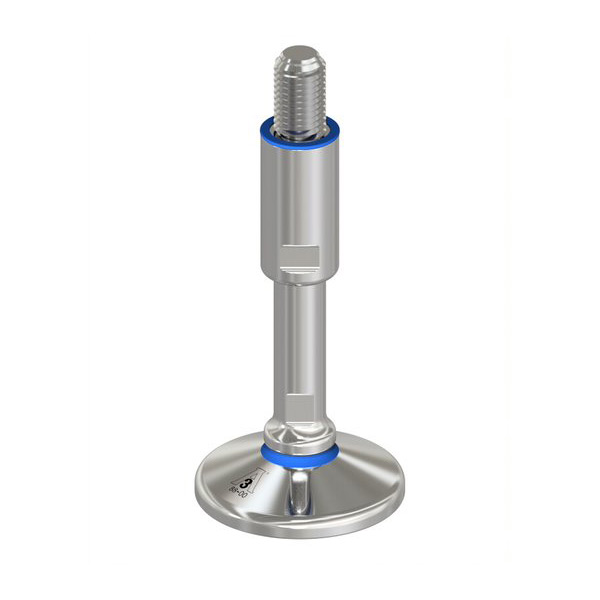

Solid Base Leveler

Vlier solid base leveler devices are hygienic leveling mounts constructed from AISI 304 stainless steel with a hygienic solid foot of the same material. These leveling feet also feature an external top gasket to enable machine mounting without wasted space and an internal bottom gasket to further defend from dirt intrusion which completes the hygienic sealing system. All Vlier solid base levelers are 3-A Sanitary Standard approved.

Typical Uses

  • Pharmaceutical industry
  • Meat & poultry processing & packaging
  • Dairy processing & packaging
  • Medical equipment
  • Cosmetic industry
  • Food & beverage industries

Special Features

  • AISI 304 stainless steel base
  • 3-A Sanitary Standard approved
  • External top gasket, internal bottom gasket for the hygienic sealing system
  • Fairly articulated half-threadless hygienic stem or stud
  • Stainless steel thread-covering sleeve
  • No exposed threads
Download the PDF
Solid-Leveler-1
Solid-Leveler-1
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Hygienic Leveling Mounts Solid Base Leveler

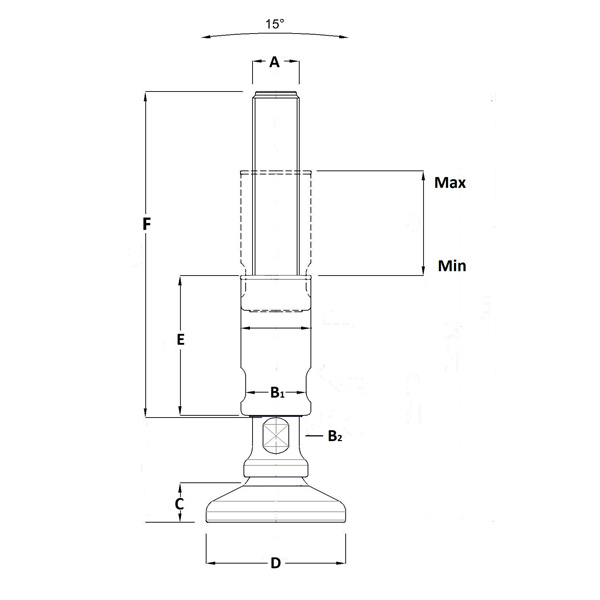

Part No.Max LoadMax & Min Working HeightA Dim. ThreadB Dim. HexC Dim. Pad HeightD Dim. Pad DiameterE Dim. Bushing lengthF Dim. Stud LengthROHSCAD
VHL32889924.17 - 7.283/4 - 1010.672.362.365.51VHL328
VHL344101164.25 - 7.363/4 - 1010.753.152.365.51VHL344
VHL350112404.25 - 7.361 - 81 - 1/40.753.152.365.51VHL350

Hygienic Leveling Mounts Solid Base Leveler

Part No.Max Load
(Newton)		Max & Min Working HeightA Dim. ThreadB Dim. HexC Dim. Pad HeightD Dim. Pad DiameterE Dim. Bushing lengthF Dim. Stud LengthROHSCAD
VHLM32840,000106 to 15120 X 2.526176060140VHLM328
VHLM34445,000108 to 15320 X 2.526198060140VHLM344
VHLM35050,000108 to 15324x330198060140VHLM350
