Posi-Hex™ Ball Plungers – Ceramic

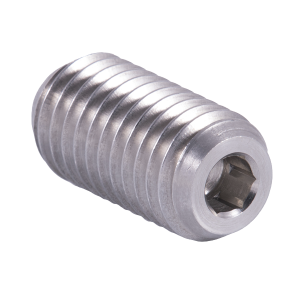

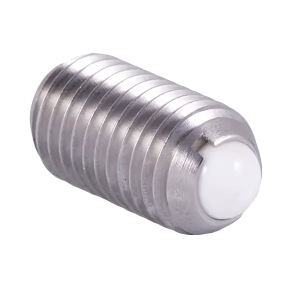

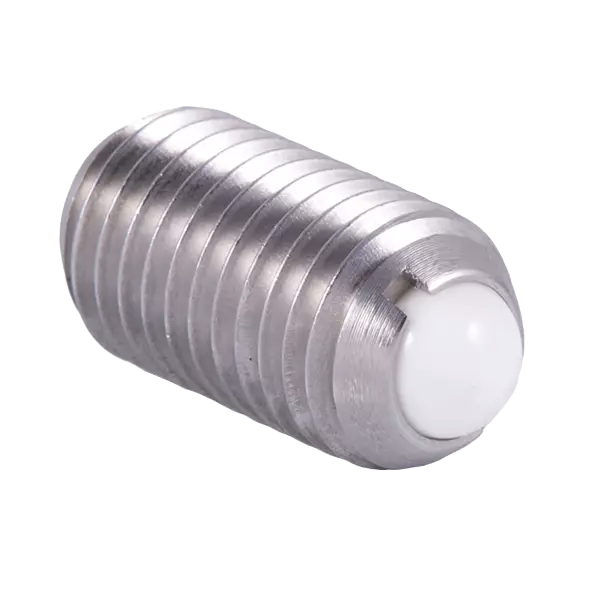

Posi-Hex™ Ceramic Ball Plungers are self-contained spring loaded devices for indexing, locating and positioning. The hex-drive design allows installation and removal using a hex wrench and provides controlled end forces with side-load tolerance. A stainless steel body with a ceramic ball delivers non-marring contact with high-temperature tolerance, corrosion resistance and electrical insulation and is non-magnetic and cleanroom compatible. Available in ANSI thread sizes 6-40 through 5/8-11 with optional thread lock. Not available in metric.

Specify by:

Thread size (ANSI 6-40 through 5/8-11)
End force (initial and final)
Thread lock requirement

Watch Product Video
Click any row to see CAD, additional product information, or to add to quote.

Open All Tables

ANSI (Inch/American) Tables

Click any part number to see CAD, more information on part, and add to quote.

Contact Engineering

Part No.	Part No.	End Force, (Lbs.)		Thread	(in.)	(in.)	(in.)	(in.)	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Final	A	B	C	D	E	ROHS	CAD	CAD With Thread Lock
SSPHB48A	SSPHB48AP	0.5	1.0	6-40	0.350	0.023	0.078	0.05		SSPHB48A	SSPHB48P
SSPHB50	SSPHB50P	0.5	1.25	8-32	0.445	0.025	0.094	0.063		SSPHB50	SSPHB50P
SSPHB52	SSPHB52P	1.5	3.0	10-32	0.570	0.025	0.094	0.079		SSPHB52	SSPHB52P
SSPHB54	SSPHB54P	3.0	7.0	1/4-20	0.675	0.035	0.125	0.079		SSPHB54	SSPHB54P
SSPHB56	SSPHB56P	4.0	9.0	5/16-18	0.720	0.04	0.156	0.095		SSPHB56	SSPHB56P
SSPHB58	SSPHB58P	5.0	10.0	3/8-16	0.800	0.048	0.188	0.156		SSPHB58	SSPHB58P
SSPHB60	SSPHB60P	6.0	12.0	1/2-13	1.050	0.72	0.281	0.219		SSPHB60	SSPHB60P
SSPHB62	SSPHB62P	9.0	18.0	5/8-11	1.250	0.096	0.375	0.253		SSPHB62	SSPHB62P

Conversion Calculators

Enter known value in place of X to view results.

Metric & Inch conversion:

Inch

Lbf/Newton Conversion:

lbf

Posi-Hex™ Ball Plungers – Ceramic

The enhanced design of our Posi-Hex^TM ceramic ball plungers allows for easy installation and removal using only a hex wrench. They are self-contained spring loaded devices, frequently used in indexing, locating or positioning in a variety of applications. The product design automates and simplifies the assembly process for manufacturers, while the unique ceramic makeup allows engineers to meet specific criteria for temperature tolerance, chemical resistance, longevity and more. These aspects make them ideal for medical, aerospace, oil and gas, marine and electric vehicle applications.
