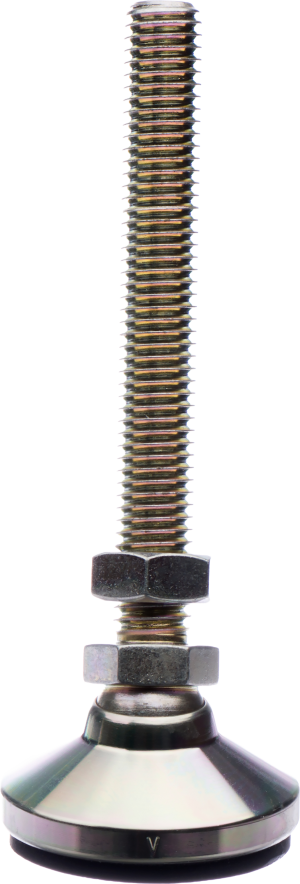

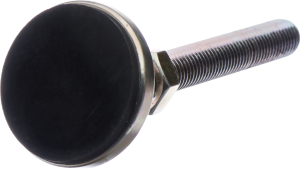

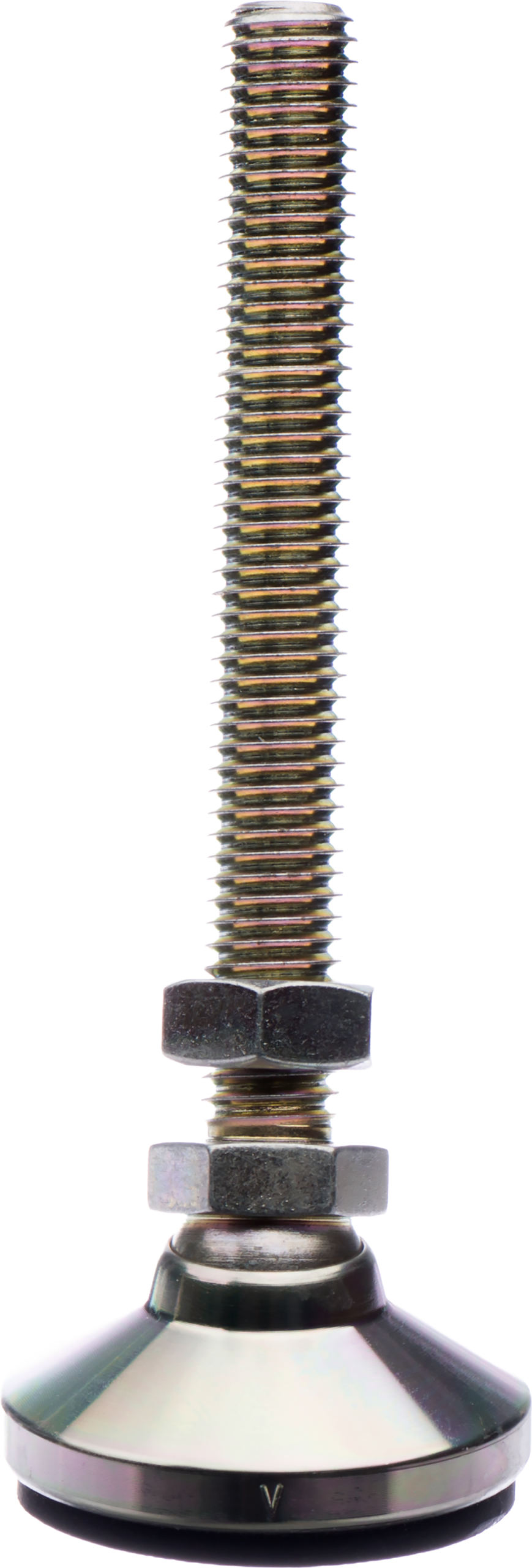

High Value Series Stud Style Extended Length with Elastomer Pad – Steel with Gold Chromate Finish

High Value Series Stud Style Extended Length Leveling Devices with Elastomer Pad – Steel with Gold Chromate Finish provide stud-mounted leveling with floor protection and non-skid support. These steel levelers use an integrally machined stud as part of the ball and a base that swivels 15° off centerline to accommodate uneven surfaces. Features include a hardened ball, extended stud with integrally machined hex and large diameter base support. Available in ANSI thread sizes 10–32 through 1–8 with maximum loads from 525–16,000 lbs., depending on size. Not available in metric.

Specify by:

Thread size (ANSI 10–32 through 1–8)
Maximum load requirement (525–16,000 lbs.)
Stud length and envelope dimensions (A–F per table)
Finish requirement (zinc plate with gold chromate finish)
Floor protection requirement (elastomer pad)

Click any row to see CAD and additional product information, or to add to quote.

Open All Tables

ANSI (Inch/American) Tables

Click any part number to see CAD, more information on part, and add to quote.

Contact Engineering

Part No.	Max Load (lbs.)	A	B	C*	D	E	F	ROHS	CAD
Part No.	Max Load (lbs.)	A	B	C*	D	E	F	ROHS	CAD
HVEP298S	525	10-32	3/8	0.53	3/4	0.11	1		HVEP298S
HVEP299S	525	10-32	3/8	0.53	3/4	0.11	2		HVEP299S
HVEP300S	800	1/4-20	1/2	0.7	1	0.15	1-1/4		HVEP300S
HVEP301S	800	1/4-20	1/2	0.7	1	0.15	2-1/2		HVEP301S
HVEP304S	2,800	3/8-16	5/8	7/8	1-1/4	0.17	2		HVEP304S
HVEP305S	2,800	3/8-16	5/8	7/8	1-1/4	0.17	4		HVEP305S
HVEP306S	3,750	1/2-13	3/4	1-1/8	1-7/8	0.25	2		HVEP306S
HVEP307S	3,750	1/2-13	3/4	1-1/8	1-7/8	0.25	4		HVEP307S
HVEP308S	4,500	5/8-11	7/8	1-1/4	2-1/2	0.31	2		HVEP308S
HVEP309S	4,500	5/8-11	7/8	1-1/4	2-1/2	0.31	4		HVEP309S
HVEP310S	5,400	3/4-10	1-1/16	1-1/2	3	0.5	2		HVEP310S
HVEP311S	5,400	3/4-10	1-1/16	1-1/2	3	0.5	4		HVEP311S
HVEP312S	16,000	1-8	1-3/8	1-7/8	4	0.4	4-1/4		HVEP312S
HVEP313S	16,000	1-8	1-3/8	1-7/8	4	0.4	8		HVEP313S

Conversion Calculators

Enter known value in place of X to view results.

Metric & Inch conversion:

Inch

Lbf/Newton Conversion:

lbf

High Value Series Stud Style Extended Length with Elastomer Pad – Steel with Gold Chromate Finish

Vlier’s high value series stud style extended length with elastomer pad leveling devices are of premium quality construction, with optimum plating, finishing and cosmetics. These steel levelers provide an integrally machined stud as part of the ball. The stud style bases swivel 15° off the centerline to adjust to uneven surfaces and level machine tools, electronic racks, benches, data storage, power generation, machine centers and others. The standard steel design is zinc plate with gold chromate finish.
