Leveling Devices High Value Series Stud Style Extended Length w/ Elastomer Pad – Steel w/ Nickel Finish

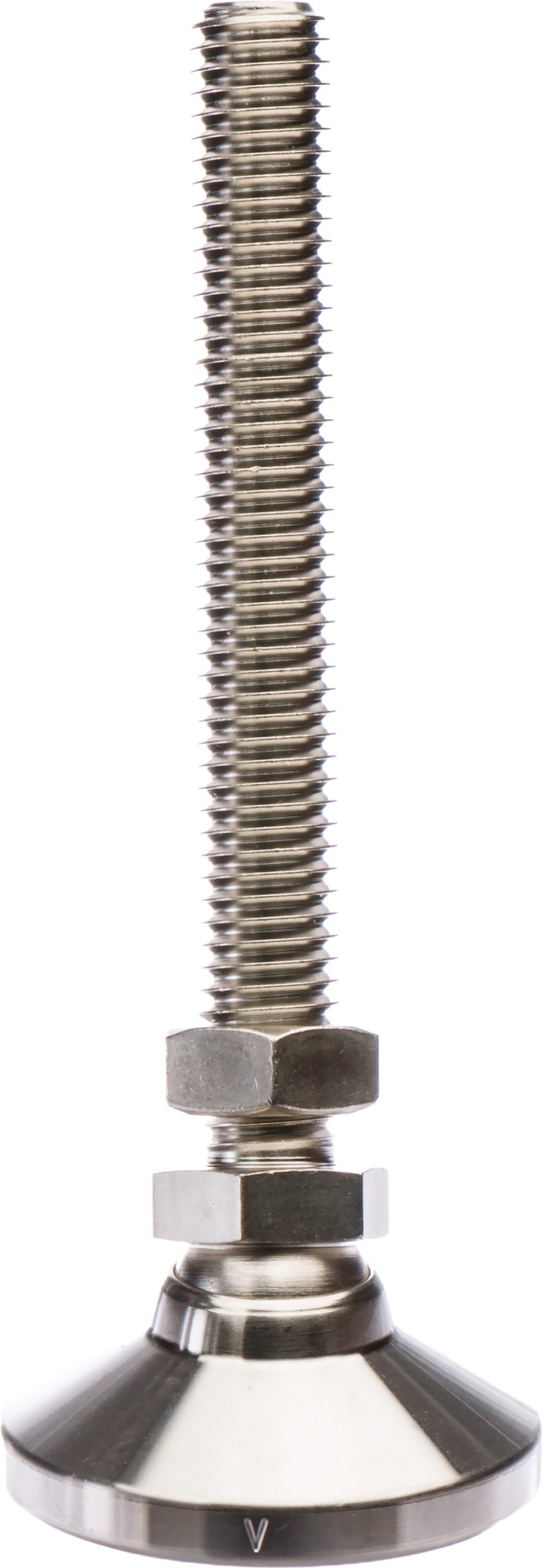

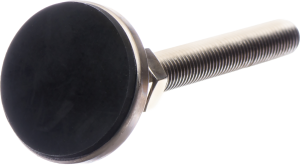

High Value Series Stud Style Extended Length Leveling Devices with Elastomer Pad – Steel with Nickel Finish provide stud-mounted leveling with an integrally machined stud as part of the ball. The base swivels 15° off centerline to adjust to uneven surfaces. The elastomer pad option provides surface and floor protection with non-skid support. Features include a hardened ball, extended stud with integrally machined hex and large diameter base support. Available in ANSI thread sizes 10–32 through 1–8 with maximum loads from 525–16,000 lbs., depending on size. This product is not available in metric.

Specify by:

Thread size (ANSI 10–32 through 1–8)
Maximum load requirement (525–16,000 lbs.)
Stud length and envelope dimensions (A–F per table)
Elastomer pad requirement (non-skid support)

Click any row to see CAD and additional product information, or to add to quote.

Open All Tables

ANSI (Inch/American) Tables

Click any part number to see CAD, more information on part, and add to quote.

Contact Engineering

Part No.	Max Load (lbs.)	A	B	C*	D	E	F	ROHS	Part No.
Part No.	Max Load (lbs.)	A	B	C*	D	E	F	ROHS	Part No.
HVEP298S3	525	10-32	3/8	0.53	3/4	0.11	1		HVEP298S3
HVEP299S3	525	10-32	3/8	0.53	3/4	0.11	2		HVEP299S3
HVEP300S3	800	1/4-20	1/2	0.7	1	0.15	1-1/4		HVEP300S3
HVEP301S3	800	1/4-20	1/2	0.7	1	0.15	2-1/2		HVEP301S3
HVEP304S3	2,800	3/8-16	5/8	7/8	1-1/4	0.17	2		HVEP304S3
HVEP305S3	2,800	3/8-16	5/8	7/8	1-1/4	0.17	4		HVEP305S3
HVEP306S3	3,750	1/2-13	3/4	1-1/8	1-7/8	0.25	2		HVEP306S3
HVEP307S3	3,750	1/2-13	3/4	1-1/8	1-7/8	0.25	4		HVEP307S3
HVEP308S3	4,500	5/8-11	7/8	1-1/4	2-1/2	0.31	2		HVEP308S3
HVEP309S3	4,500	5/8-11	7/8	1-1/4	2-1/2	0.31	4		HVEP309S3
HVPE310S3	5,400	3/4-10	1-1/16	1-1/2	3	0.5	2		HVPE310S3
HVEP311S3	5,400	3/4-10	1-1/16	1-1/2	3	0.5	4		HVEP311S3
HVEP312S3	16,000	1-8	1-3/8	1-7/8	4	0.4	4-1/4		HVEP312S3
HVEP313S3	16,000	1-8	1-3/8	1-7/8	4	0.4	8		HVEP313S3

Conversion Calculators

Enter known value in place of X to view results.

Metric & Inch conversion:

Inch

Lbf/Newton Conversion:

lbf

Leveling Devices High Value Series Stud Style Extended Length w/ Elastomer Pad – Steel w/ Nickel Finish

Vlier’s high value series stud style extended length with elastomer pad leveling devices are of premium quality construction, with optimum plating, finishing and cosmetics. These steel levelers with a nickel finish provide an integrally machined stud as part of the ball. The stud style bases swivel 15° off the centerline to adjust to uneven surfaces and level machine tools, electronic racks, benches, data storage, power generation, machine centers and others.
