High Value Series Stud Style Extended Length with Elastomer Pad – Stainless Steel

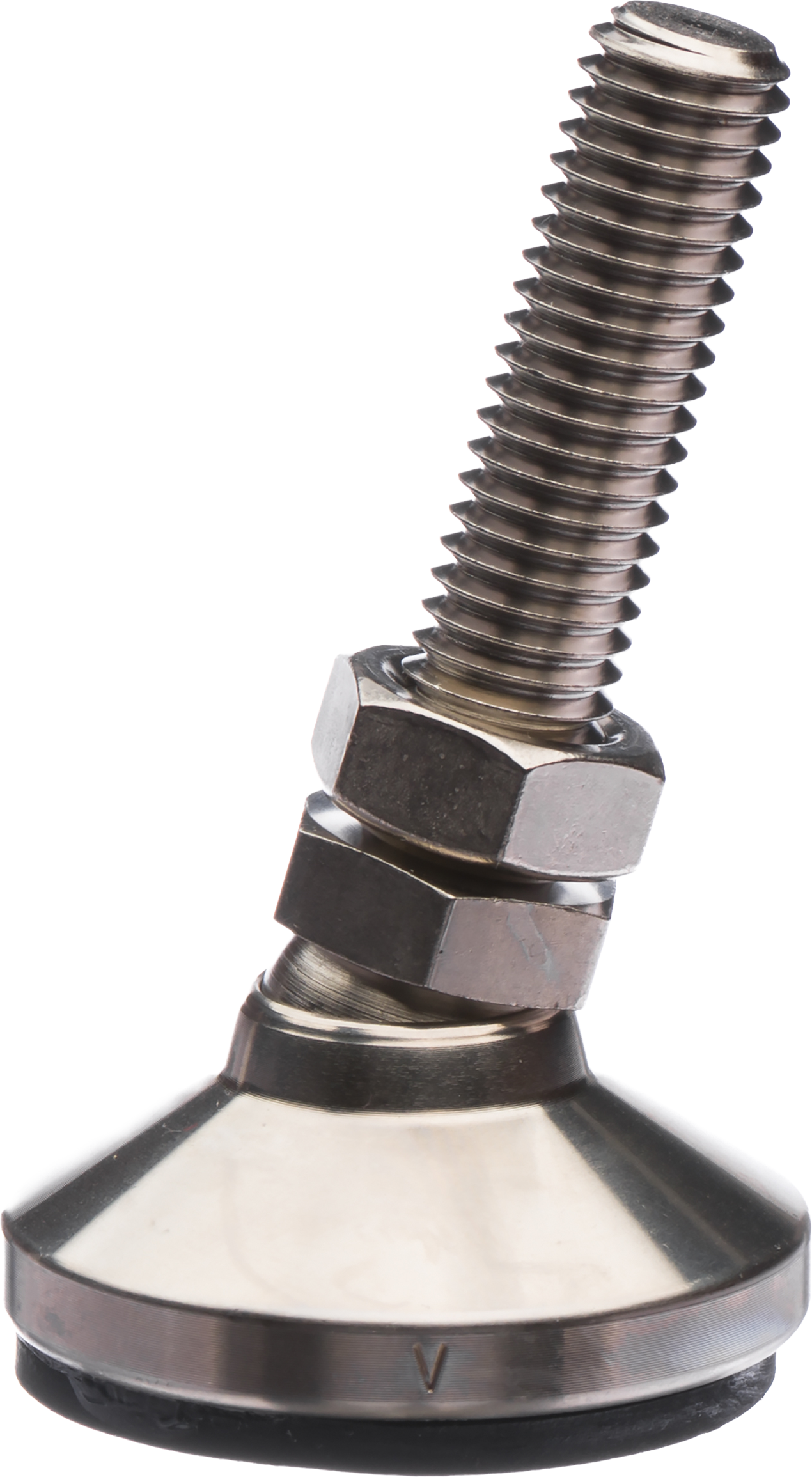

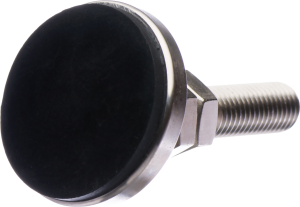

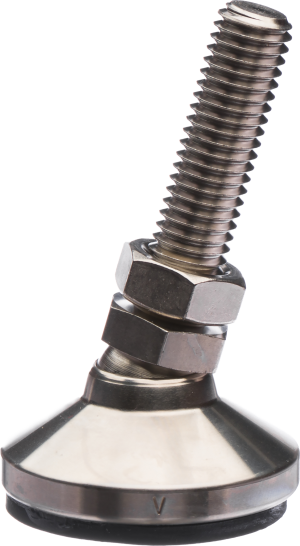

High Value Series Stud Style Extended Length Leveling Devices with Elastomer Pad – Stainless Steel provide stud-mounted leveling where added clearance is required. These levelers feature an integrally machined stud as part of the ball and a base that swivels 15° off centerline to adjust to uneven surfaces. Stainless steel construction resists rust and corrosion. Standard features include a hardened ball, extended stud with integrally machined hex and large diameter base support. Available in ANSI thread sizes 10–32 through 1–8 with maximum loads from 525–16,000 lbs., depending on size. This product is not available in metric.

Specify by:

Thread size (ANSI 10–32 through 1–-8)
Maximum load requirement (525–16,000 lbs.)
Stud length and envelope dimensions (A–F per table)
Swivel requirement (15° off centerline)
Surface protection requirement (elastomer pad)

Click any row to see CAD and additional product information, or to add to quote.

Open All Tables

ANSI (Inch/American) Tables

Click any part number to see CAD, more information on part, and add to quote.

Contact Engineering

Part No.	Max Load (Lbs.)	A	B	C*	D	E	F	ROHS	CAD
Part No.	Max Load (Lbs.)	A	B	C*	D	E	F	ROHS	CAD
HVESSP298S	525	10-32	3/8	0.53	3/4	0.11	1		HVESSP298S
HVESSP299S	525	10-32	3/8	0.53	3/4	0.11	2		HVESSP299S
HVESSP300S	800	1/4-20	1/2	0.7	1	0.15	1-1/4		HVESSP300S
HVESSP301S	800	1/4-20	1/2	0.7	1	0.15	2-1/2		HVESSP301S
HVESSP304S	2,800	3/8-16	5/8	7/8	1-1/4	0.17	2		HVESSP304S
HVESSP305S	2,800	3/8-16	5/8	7/8	1-1/4	0.17	4		HVESSP305S
HVESSP306S	3,750	1/2-13	3/4	1-1/8	1-7/8	0.25	2		HVESSP306S
HVESSP307S	3,750	1/2-13	3/4	1-1/8	1-7/8	0.25	4		HVESSP307S
HVESSP308S	4,500	5/8-11	7/8	1-1/4	2-1/2	0.31	2		HVESSP308S
HVESSP309S	4,500	5/8-11	7/8	1-1/4	2-1/2	0.31	4		HVESSP309S
HVESSP310S	5,400	3/4-10	1-1/16	1-1/2	3	0.5	2		HVESSP310S
HVESSP311S	5,400	3/4-10	1-1/16	1-1/2	3	0.5	4		HVESSP311S
HVESSP312S	16,000	1-8	1-3/8	1-7/8	4	0.4	4-1/4		HVESSP312S
HVESSP313S	16,000	1-8	1-3/8	1-7/8	4	0.4	8		HVESSP313S

Conversion Calculators

Enter known value in place of X to view results.

Metric & Inch conversion:

Inch

Lbf/Newton Conversion:

lbf

High Value Series Stud Style Extended Length with Elastomer Pad – Stainless Steel

Vlier’s high value series stud style extended length with elastomer pad leveling devices are of premium quality construction, with optimum plating, finishing and cosmetics. These stainless steel levelers feature an integrally machined stud as part of the ball. The stud style bases swivel 15° off the centerline to adjust to uneven surfaces and level machine tools, electronic racks, benches, data storage, power generation, machine centers and others. The stainless steel design offers superior protection from rust and corrosion.
