View All High Value Series Socket Style with Elastomer Pad – Stainless Steel

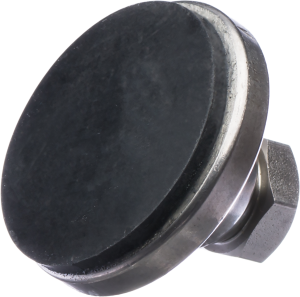

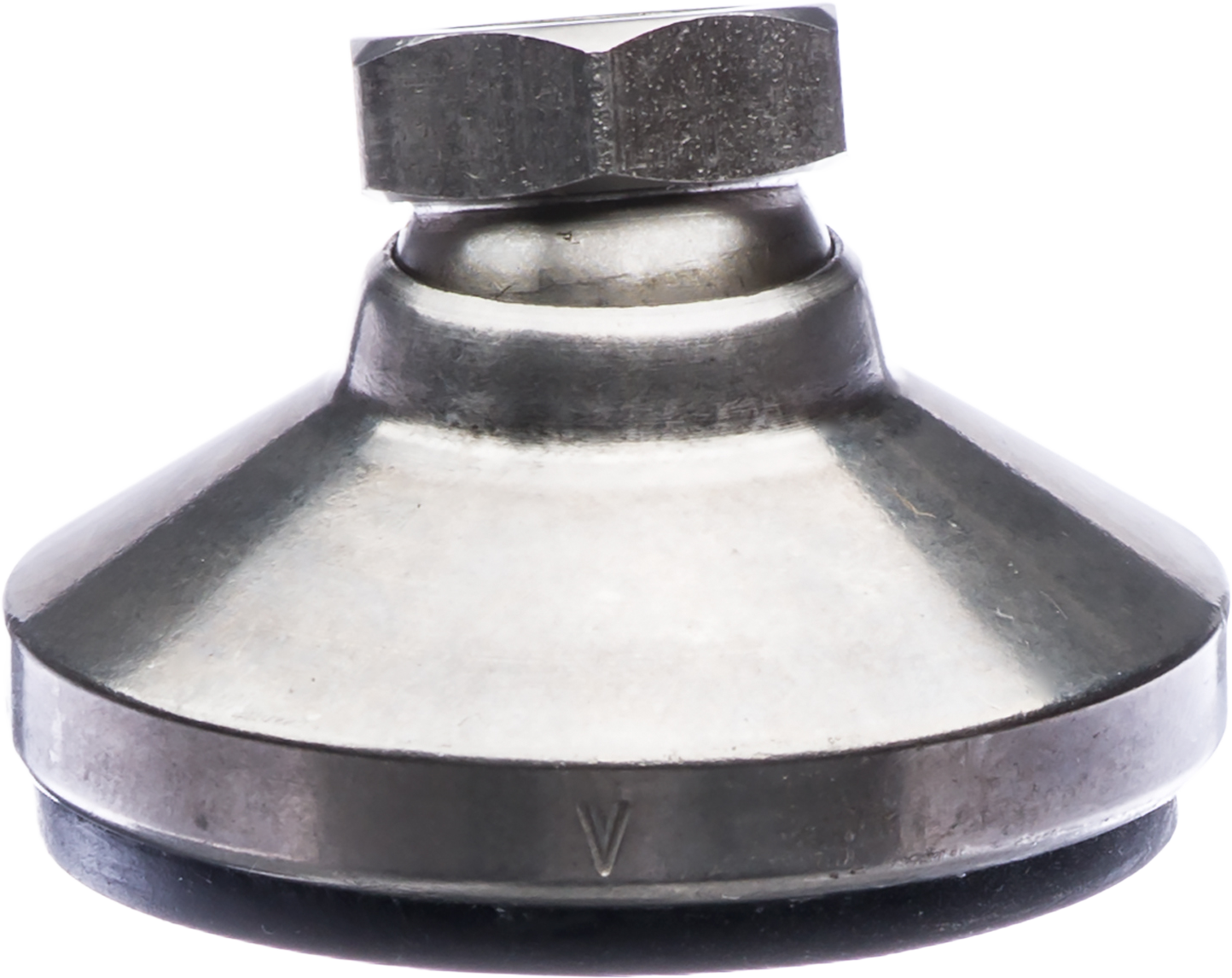

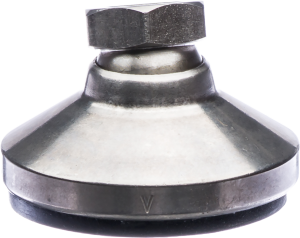

High Value Series Socket Style Leveling Devices with Elastomer Pad – Stainless Steel provide stable, secure leveling and non-skid support for data storage equipment, large medical equipment, material handling equipment, industrial workstations and industrial machines. A 0.125” neoprene elastomer pad is bonded to the bottom of the base to protect floors and surface finishes. Features include a hardened ball, integrally machined hex, large diameter base support and 15° swivel off centerline. Available in ANSI threads 10–32 through 1–8 with max loads 525–16,000 lbs. and metric threads M6 x 1–M24 x 3 with max loads 240–7,500 kg, depending on size.
Specify by:
- Thread standard and size (ANSI or metric)
- Maximum load requirement
- Base diameter and swivel requirement (15°)
- Installation envelope dimensions (A–F per table)
Click any row to see CAD and additional product information, or to add to quote.
| Part No. | Max Load (Lbs.) | A | B | C* | D | E | F | ROHS | Part No. |
| HVESSP298B | 525 | 10-32 | 3/8 | 17/32 | 3/4 | 7/64 | 15/64 | HVESSP298B | |
| HVESSP300B | 800 | 1/4-20 | 1/2 | 45/64 | 1 | 5/32 | 5/16 | HVESSP300B | |
| HVESSP304B | 2,800 | 3/8-16 | 5/8 | 7/8 | 1-1/4 | 3/16 | 3/8 | HVESSP304B | |
| HVESSP306B | 3,750 | 1/2-13 | 3/4 | 1-1/8 | 1-7/8 | 1/4 | 7/16 | HVESSP306B | |
| HVESSP308B | 4,500 | 5/8-11 | 7/8 | 1-1/4 | 2-1/2 | 5/16 | 7/16 | HVESSP308B | |
| HVESSP310B | 5,400 | 3/4-10 | 1-1/16 | 1-1/2 | 3 | 1/2 | 5/8 | HVESSP310B | |
| HVESSP312B | 16,000 | 1-8 | 1-3/8 | 1-7/8 | 4 | 13/32 | 3/16 | HVESSP312B |
