LEVELING DEVICES- Econoline® Hand Adjustment Knobs

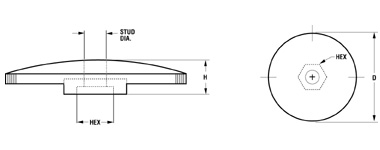

Extended Length Econoline LevelerOrignal Stud Style Leveling Device Diagram


Hand Adjustment Knobs
Vlier ECONOLINE® Black Delrin® Hand Adjustment Knobs provide finger tip, tool-free leveling adjustment for light loads and fit easily over the adjustment nut on Econoline Stud Style Inch Levelers.


Econoline Hand Adjustment Knobs - For Steel & Stainless Steel Studs
Part No.
D
H
Hex
Stud. Dia.
AK153
1.37
0.35
5/8
3/8
AK155
1.37
0.35
5/8
1/2
AK203
1.87
0.35
5/8
3/8
AK205
1.87
0.35
5/8
1/2
AK257
1.87
0.35
5/8
3/8


Econoline Hand Adjustment Knobs - For Delrin Studs
Part No.
D
H
Hex
Stud. Dia.
AKP153
1.37
0.35
5/8
3/8
AKP155
1.37
0.35
5/8
1/2
AKP203
1.87
0.35
5/8
3/8
AKP205
1.87
0.35
5/8
1/2
AKP257
1.87
0.35
5/8
3/8




Custom Specials
