Hygienic Leveling Mounts

Special Features

  • Vulcanized NBR 85 shore rubber pad

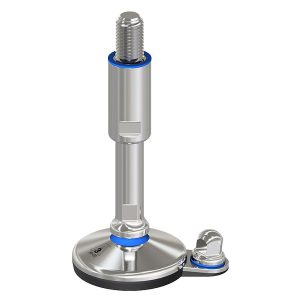

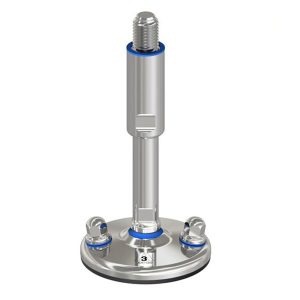

  • Optional boltdown measure
  • Food Grade
  • External top gasket, internal bottom gasket
  • Stainless steel thread-covering sleeve with a Ra 0.05 metal finish
  • Polished and rounded radiuses
  • Hygienic sealing system at all thread junctions
  • Self-draining profile on all bases
  • USDA Equipment Certificate, NSF/ANIS/3-A
  • 3-A for Feet

Optional Features

  • Blue EPDM pad
  • Additional thread sizes available
  • Multiple weight loads
  • Added stud length
  • Available accessories

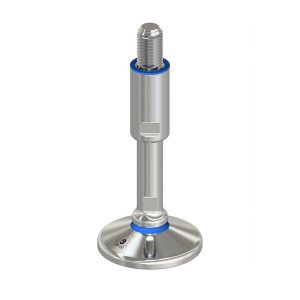

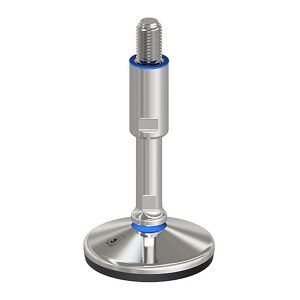

Vlier’s hygienic leveling mounts are designed to exceed USDA and FDA standards, meeting the demands of the increasing role these mounts play in the industry. The new Hygienic Series offers four distinct styles including bolt down models for equipment in environments such as the pharmaceutical, food processing, packaging, dairy and the beverage industries.

Made from polished AISI 304 stainless steel, the mounts feature a surface finish of Ra 0.05,a half-threadless hygienic stem and a stainless steel thread-covering sleeve with a hygienic sealing system. These mounts also include a base that has a profile allowing for draining during cleaning and vulcanized pads that provide a positive seal while protecting the floor and stabilizing the equipment. Both the hygienic foot and thread covering sleeves feature silicon gaskets that prevent dirt intrusions.

All of our hygienic stainless mounts adjust to uneven surfaces to level equipment, while providing maximum protection from microorganisms. Each product has been certified as hygienic to 3-A Sanitary Standards.
