Vulcanized Leveler

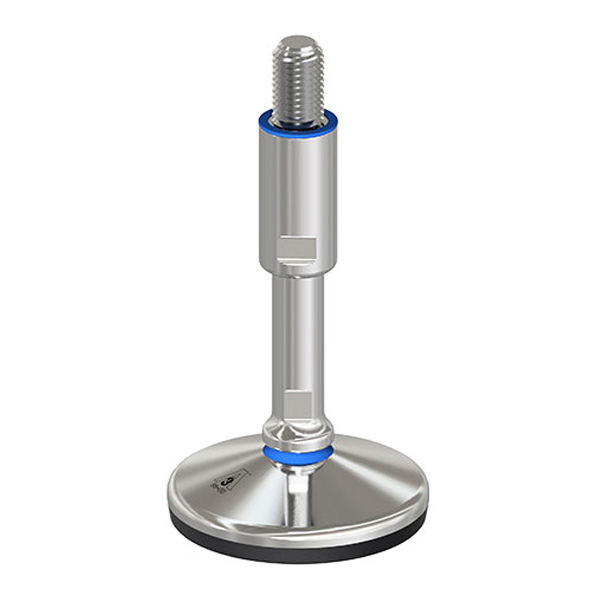

Vlier vulcanized leveler devices are hygienic leveling mounts constructed from AISI 304 stainless steel with a vulcanized NBR 85 rubber pad. The vulcanized pad, attached to the bottom of the leveling feet, is abrasion resistant and highly elastic—protecting the floor surface and providing a seal blocking out contaminants. These leveling mounts also feature an external top gasket to enable machine mounting without wasted space and an internal bottom gasket that completes the hygienic seal to further defend from dirt intrusion. All Vlier hygienic leveling mounts are 3-A Sanitary Standard approved.

Typical Uses

  • Pharmaceutical industry
  • Meat & poultry processing & packaging
  • Dairy processing & packaging
  • Medical equipment
  • Cosmetic industry
  • Food & beverage industries

Special Features

  • Vulcanized FDA NBR 85 shore rubber pad
  • 3-A Sanitary Standard approved
  • External top gasket, internal bottom gasket for the hygienic sealing system
  • Fairly articulated half-threadless hygienic stem stud
  • Stainless steel thread-covering sleeve
Download the PDF
Hygienic-Machine-Foot-3A-Vulcanized-80100
Hygienic-Machine-Foot-3A-Vulcanized-80100
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Hygienic Leveling Mounts Vulcanized Leveler

Part No.Max Load

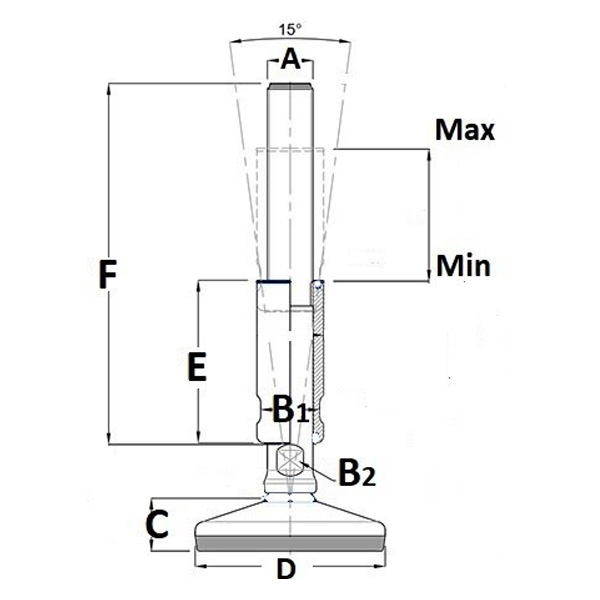

(Lbs.)		Max & Min Working HeightA Dim. Thread SizeB Dim. HexC Dim. Pad HeightD Dim. Pad DiameterE Dim Bushing lengthF Dim. Stud LengthE Dim. Distance to FloorROHSCAD
VHL10011244.29 - 6.061/2 - 137/80.791.97.94 X 2.365.511.89VHL100
VHL12022484.41 - 6.181/2 - 137/80.92.36.94 X 2.365.512VHL120
VHL12422484.41 - 6.185/8 - 117/80.92.36.94 X 2.365.512VHL124
VHL13022485.39 - 8.153/4 - 1010.92.361.18 X 3.347.482VHL130
VHL14044964.49 - 6.265/8 - 117/80.983.15.94 X 2.365.512.08VHL140
VHL14244965.47- 8.235/8 - 117/80.983.15.94 X 3.347.482.08VHL142
VHL16056204.60 - 6.385/8 - 117/81.13.94.94 X 2.365.512.20VHL160
VHL16456204.60 - 6.383/4 - 1011.13.941.18 X 2.365.512.20VHL164
VHL18667445.75 - 8.503/4 - 1011.264.721.18 X 3.347.482.36VHL186

Hygienic Leveling Mounts Vulcanized Leveler

Part No.Max Load
(Newton)		Max & Min Working HeightA Dim. Thread SizeB Dim. HexC Dim. Pad HeightD Dim. Pad DiameterE Dim Bushing lengthF Dim. Stud LengthE Dim. Distance to FloorHexWeightROHSCAD
VHLM1005,0001.09 min/ 1.54 maxM12X1.75202050601404813/20392VHLM100
VHLM12010,000112 min / 1.57 maxM12X1.752023606014051VHLM120
VHLM12410,000112 min / 1.57 maxM16X22023606014051VHLM124
VHLM13010,000137 min / 207 maxM20X2.52623608519051VHLM130
VHLM14020,000114 min / 159 maxM16X22025806014053VHLM140
VHLM14220,000139 min / 209 maxM16X22025808519053VHLM142
VHLM16025,000117 min / 162 maxM16X220281006014056VHLM160
VHLM16425,000117 min / 162 maxM20X2.526281006014056VHLM164
VHLM18630,000146 min / 216 maxM20X2.526321208519060VHLM186
